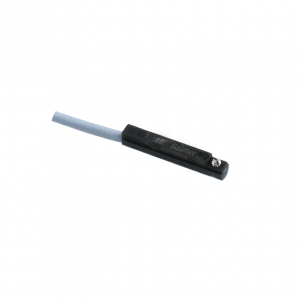

MZCK 03P1011/KS35D - Magnetic cylinder sensors

MZCK 03P1011/KS35D - Magnetic cylinder sensors
  • magneto-resistive
  • PNP
  • flylead connector PUR M8, L=300 mm
  • -40 … 70 °C
  • IP 67
Objednací číslo: 11018077
Výrobce: Baumer Electric AG
Dostupnost: více než 15 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.
Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.
+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Skladová dostupnost
Podobné produkty

Parametry

Základní parametry

Typ: Magneto-resistive
Verze: C-slots
Pracovní bod: 4 mT
Rozdíl ON-OFF: 0.5 - 1.5 mT
Výstupní indikátor: LED yellow

Elektrické parametry

Spínací frekvence: 200 kHz
Doba odezvy: < 0.0025 ms
Výstupní obvod: PNP
Maximální spotřeba proudu (bez zátěže): 12 mA
Výstupní proud: 200 mA
Rozsah napájecího napětí +Vs: 6 - 30 VDC
Výstupní funkce: Normally open (NO)
Pokles napětí Vd: <1 VDC
Ochrana proti přepólování: Yes
Ochrana proti zkratu: Yes

Mechanické parametry

Výstup kabelu: Axial
Způsoby připojení: Flylead connector PUR M8, L=300 mm
Konstrukce: Rectangular
Hloubka: 23 mm
Šířka | průměr: 3.7 mm
Výška | Délka: 4.6 mm
Materiál pouzdra: PA66

Okolní podmínky

Pracovní teplota: -40 - +70 °C
Třída krytí: IP 67
