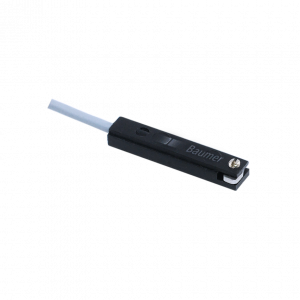

MZTK 06P1011 - Magnetic cylinder sensors

MZTK 06P1011 - Magnetic cylinder sensors
  • magneto-resistive
  • PNP
  • cable PUR 3 x 0,08, 2,5 m
  • -40 … 70 °C
  • IP 67
Objednací číslo: 11018089
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Magneto-resistive
Verze: T-slots
Pracovní bod: 4 mT
Rozdíl ON-OFF: 0.5 - 1.5 mT
Výstupní indikátor: LED yellow

Elektrické parametry

Spínací frekvence: 200 kHz
Doba odezvy: < 0.0025 ms
Výstupní obvod: PNP
Maximální spotřeba proudu (bez zátěže): 12 mA
Výstupní proud: 200 mA
Rozsah napájecího napětí +Vs: 6 - 30 VDC
Výstupní funkce: Normally open (NO)
Pokles napětí Vd: <1 VDC
Ochrana proti přepólování: Yes
Ochrana proti zkratu: Yes

Mechanické parametry

Výstup kabelu: Axial
Způsoby připojení: Cable PUR 3 x 0,08, 2,5 m
Konstrukce: Rectangular
Hloubka: 31 mm
Šířka | průměr: 6.2 mm
Výška | Délka: 4.3 mm
Materiál pouzdra: PA66

Okolní podmínky

Pracovní teplota: -40 - +70 °C
Třída krytí: IP 67
