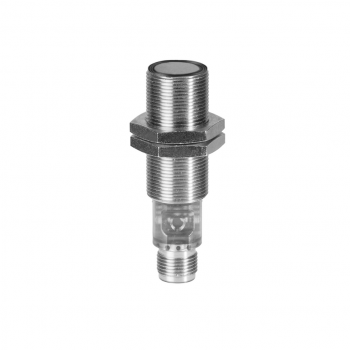

UR18.DA0.2-UA1B.9SF

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

20 … 1000 mm
voltage output
qTeach, line-Teach
connector M12 5 pin
-25 … 65 °C
IP 69

Objednací číslo: 11200641
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Meřicí rozsah:	20 - 1000 mm
Minimální vzdálenost rozsahu Sdc:	20 - 1000 mm
Maximální vzdálenost rozsahu Sde:	20 - 1000 mm
Opakovatelnost:	0.5 mm
Rozlišení:	< 0.3 mm
Doba sepnutí ton:	< 40 ms
Doba vypnutí toff:	< 40 ms
Teplotní drift:	> 50 mm < 2 % of distance to target Sde
Teplotní drift po zapnutí:	Compensated after 15 min.
Frekvence zvuku:	200 kHz
Nastavení:	qTeach, line-Teach
Světelný indikátor:	LED yellow
Indikace napájení:	LED green
Odklon od osy:	< 2°

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 30 VDC
Běžná spotřeba proudu:	35 mA
Výstupní obvod:	Voltage output
Výstupní signál:	0 ... 10 V / 10 ... 0 V
Zbytkové zvlnění:	< 10 % Vs
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál pouzdra:	Stainless steel (V2A) / TR90
Povrch aktivní části:	PEEK
Šířka \| průměr:	18 mm
Výška \| Délka:	64 mm
Způsoby připojení:	Connector M12 5 pin

Okolní podmínky

Pracovní teplota:	-25 - +65 °C
Skladovací teplota:	-40 - +75 °C
Třída krytí:	IP 69
Krytí (připojení):	IP 67
