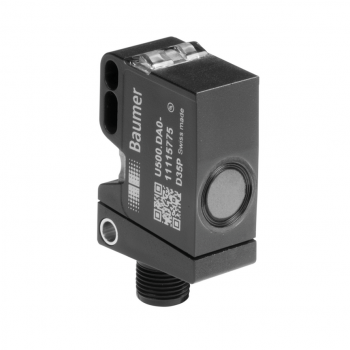

U500.DA0.2-IAMJ.72F

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

20 … 1000 mm
current output
qTeach, line-Teach, IO-Link
connector M12 5 pin
-25 … 65 °C
IP 67

Objednací číslo: 11200625
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Meřicí rozsah:	20 - 1000 mm
Minimální vzdálenost rozsahu Sdc:	20 - 1000 mm
Maximální vzdálenost rozsahu Sde:	20 - 1000 mm
Verze:	IO-Link dual channel Multiplex version
Hystereze typ.:	4 % Sde
Opakovatelnost:	0.5 mm
Rozlišení:	< 0.3 mm
Doba sepnutí ton:	< 40 ms
Doba vypnutí toff:	< 40 ms
Teplotní drift:	> 50 mm < 2 % of distance to target Sde
Teplotní drift po zapnutí:	Compensated after 15 min.
Frekvence zvuku:	200 kHz
Nastavení:	qTeach, line-Teach, IO-Link
Světelný indikátor:	LED yellow
Indikace napájení:	LED green
Odklon od osy:	< 2°

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 30 VDC
Běžná spotřeba proudu:	35 mA
Výstupní obvod:	Current output
Modulační rychlost (baud rate):	38.4 kBaud (COM 2)
Výstupní signál:	4 ... 20 mA / 20 ... 4 mA
Výstupní proud:	100 mA
Pokles napětí Vd:	<3.5 VDC
Zbytkové zvlnění:	< 10 % Vs
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Komunikační rozhraní

Rozhraní:	IO-Link V1.1
Modulační rychlost (baud rate):	38.4 kBaud (COM 2)
Čas cyklu:	≥ 12 ms
Procesní data:	48 Bit
Struktura procesních dat:	Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 8-15 = scale factor Bit 16-47 = 32 Bit measurement
IO-Link připojení:	Class A
Další údaje:	Distance Excess gain Operating cycles Operating hours Boot cycles Operating voltage Device temperature Histograms
Nastavitelné parametry:	Switching point Switching hysteresis Measured value filtering Time filters LED status indicators Output logic Output circuit Counter Beam forming Analog output characteristic Function of pin 5 Deactivate the sensor element Find Me function

Mechanické parametry

Konstrukce:	Rectangular
Materiál pouzdra:	Plastic (ASA, PMMA)
Povrch aktivní části:	PEEK
Šířka \| průměr:	18 mm
Výška \| Délka:	45 mm
Hloubka:	32 mm
Způsoby připojení:	Connector M12 5 pin

Okolní podmínky

Pracovní teplota:	-25 - +65 °C
Skladovací teplota:	-40 - +75 °C
Třída krytí:	IP 67

Nákresy

Výkresy

3110-U500_S14.png | stáhnout (png, 2025-07-11 20:06:01)

Diagram připojení

Zchn-6460-A-IO-Link.png | stáhnout (png, 2025-07-12 01:32:18)

Přiřazení pinů

Zchn-5605-12.png | stáhnout (png, 2025-07-12 01:33:36)

Diagramy

Typický tvar zvukového laloku

U500_FD_Schallkeule_91_EN.png | stáhnout (png, 2025-07-12 08:45:15)

Ke stažení

Datový list

Data sheet – U500.DA0.2-IAMJ.72F | stáhnout | zobrazit (ZH, pdf, 2025-06-18 16:17:05)
Data sheet – U500.DA0.2-IAMJ.72F | stáhnout | zobrazit (DE, pdf, 2025-06-18 16:17:04)
Data sheet – U500.DA0.2-IAMJ.72F | stáhnout | zobrazit (EN, pdf, 2025-06-18 16:17:04)

Rychlý start

Quickstart - U500 | stáhnout | zobrazit (EN/DE/FR/IT/ES/ZH, pdf, 2025-04-11 11:41:18)

Příručka k softwaru

Operating instruction – IO-Link | stáhnout | zobrazit (EN, pdf, 2025-04-11 12:01:33)

Certifikáty/ osvědčení

DoC / CoC - U500 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:41:18)

Software

Software – IODD V1.1 (U500 / UR18) | stáhnout (zip, 2025-07-11 22:14:37)
