U300.D50-UA1B.72N

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Best measuring performance due to precise measuring principle
Simple teach-in via qTeach or line teach
Shortest blind zone in its class
High performance in compact housing

Objednací číslo: 11219502
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Meřicí rozsah:	15 - 500 mm
Minimální vzdálenost rozsahu Sdc:	15 - 500 mm
Maximální vzdálenost rozsahu Sde:	15 - 500 mm
Opakovatelnost:	0.5 mm
Rozlišení:	< 0.3 mm
Doba sepnutí ton:	< 40 ms
Doba vypnutí toff:	< 40 ms
Teplotní drift:	> 50 mm < 2 % of distance to target Sde
Teplotní drift po zapnutí:	Compensated after 15 min.
Frekvence zvuku:	290 kHz
Nastavení:	qTeach, line-Teach
Světelný indikátor:	LED yellow
Indikace napájení:	LED green
Odklon od osy:	< 2°

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 30 VDC
Běžná spotřeba proudu:	35 mA
Výstupní obvod:	Voltage output
Výstupní signál:	0 ... 10 V / 10 ... 0 V
Zbytkové zvlnění:	< 10 % Vs
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Mechanické parametry

Konstrukce:	Rectangular
Materiál pouzdra:	Plastic (ASA, PMMA)
Šířka \| průměr:	12.9 mm
Výška \| Délka:	32.2 mm
Hloubka:	23 mm
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Pracovní teplota:	-25 - +65 °C
Skladovací teplota:	-40 - +75 °C
Třída krytí:	IP 67

Nákresy

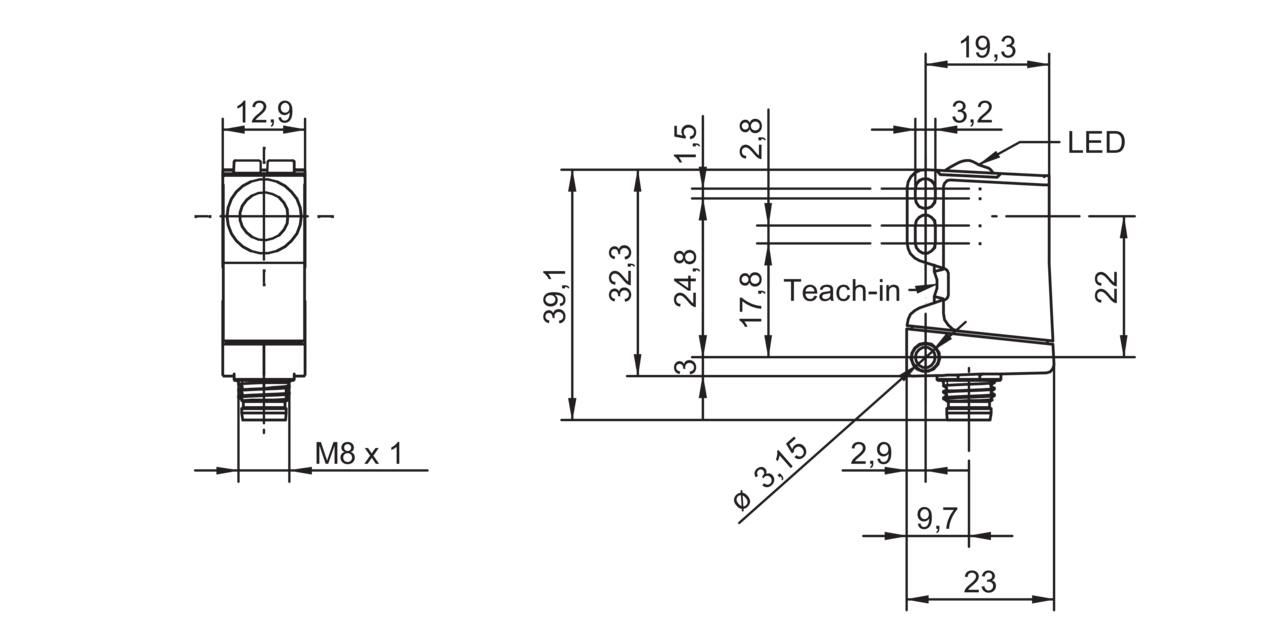

Výkresy

4655-U300-x-S35A-BMP.png | stáhnout (png, 2025-07-12 03:59:00)

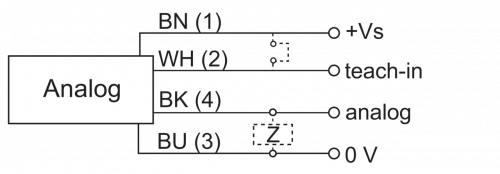

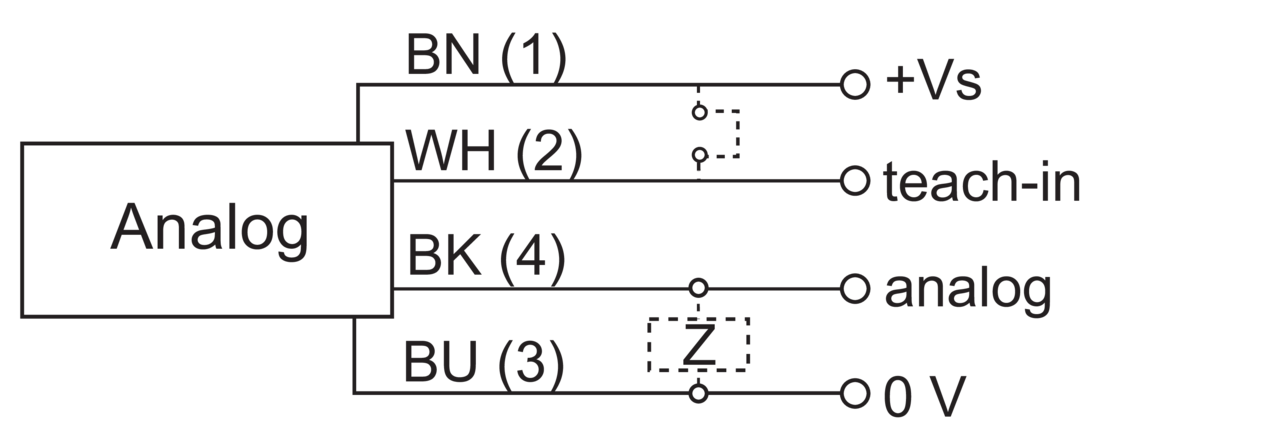

Diagram připojení

Zchn-6100-AT.png | stáhnout (png, 2025-07-12 03:46:51)

Diagramy

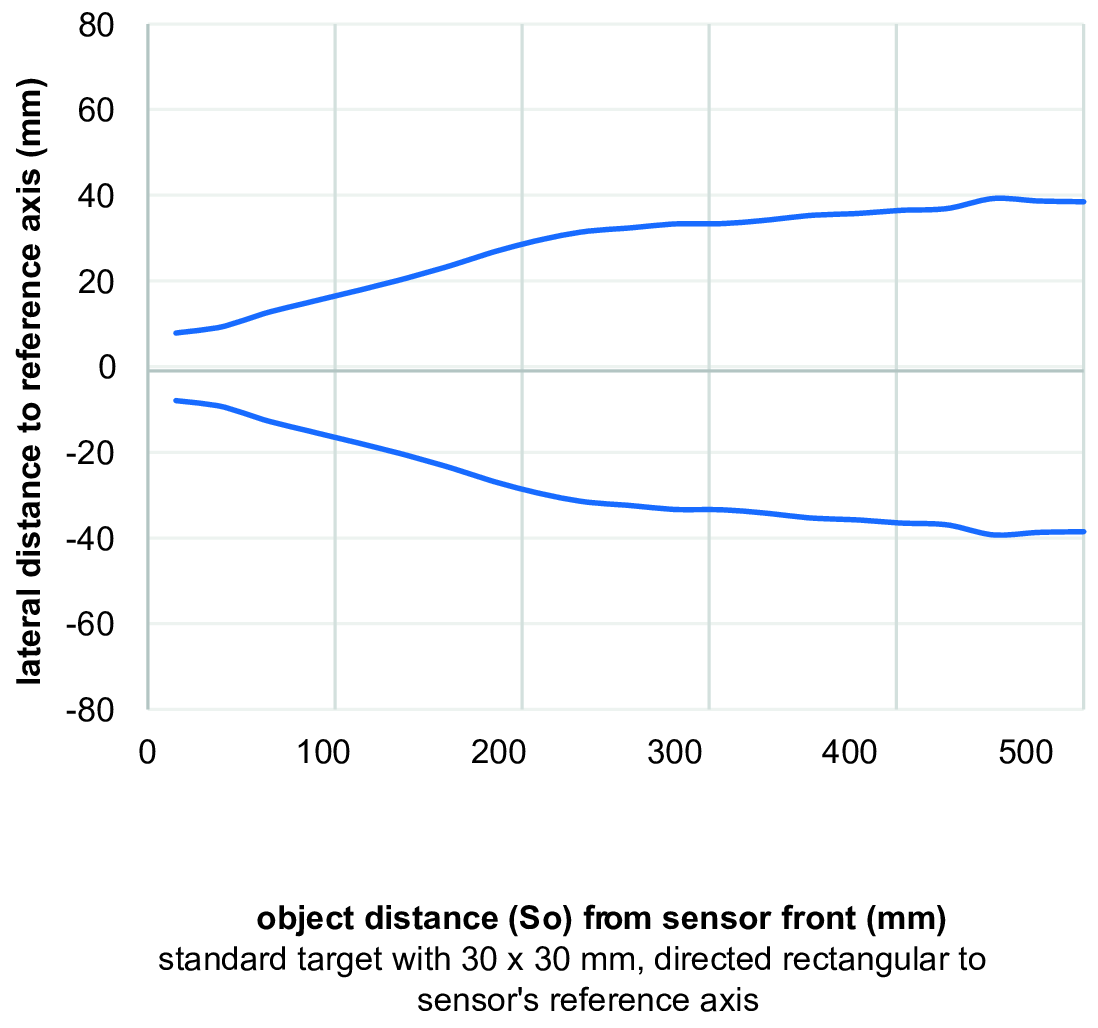

Typický tvar zvukového laloku

U300_FD_SchallkeuleMedium_91_EN.png | stáhnout (png, 2025-07-12 08:47:40)

Ke stažení

Datový list

Data sheet – U300.D50-UA1B.72N | stáhnout | zobrazit (ZH, pdf, 2025-06-19 08:30:07)
Data sheet – U300.D50-UA1B.72N | stáhnout | zobrazit (DE, pdf, 2025-06-19 08:30:06)
Data sheet – U300.D50-UA1B.72N | stáhnout | zobrazit (EN, pdf, 2025-06-19 08:30:06)

Rychlý start

Quickstart - U300 | stáhnout | zobrazit (EN/DE/FR/IT/ES/ZH, pdf, 2025-04-11 11:41:16)

Certifikáty/ osvědčení

DoC / CoC - U300 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:41:17)
