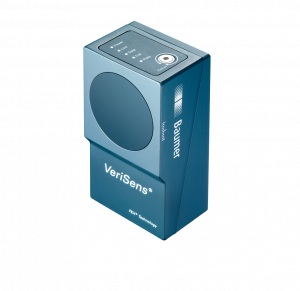

VS XF100M03I10RP

VS XF100M03I10RP
  • Správa uživatelů
  • Ochrana heslem
  • Funkce zálohování a obnovení
  • Transformace souřadnic
  • flexibilní spojení výsledků
  • Download VeriSens® Application Suite: www.baumer.com/vs-sw
Objednací číslo: 11128424
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer
Ing. Jakub Sedlmajer
Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS
Ing. Jakub Sedlmajer - QR Kontakt
+420 739 087 013
jakub.sedlmajer@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Rozlišení: 752 × 480 px
Typ snímače: 1/3″ CMOS, monochrome
Osvětlení: integrated, LED infrared (860 nm)
Třída LED: free group (risk free, EN 62471:2008)
Režim plného rozlišení: max. 50 inspections per second
Vysokorychlostní režim (redukované rozlišení): max. 100 inspections per second
Min. vzdálenost objektu: 50 mm
Počet programů: ≤ 255
Maximální počet kontrol v rámci programu: 32
Signálový procesor: Baumer FEX® 4.0
Počet uložených NOK snímků: 32
Objektiv: 10 mm

Elektrické parametry

Rozsah napájecího napětí +Vs: 18 - 30 V DC
Spotřeba energie: Typical 5 W (Imax = 1 A at 24 V)
Digitální vstupy:
  • 5 inputs (8 - 30 V)
  • trigger
  • job selection
  • external teach-in
  • encoders (CH-A, CH-B) 500 kHz
Digitální výstupy:
  • 3 outputs (PNP)
  • Pass / Fail
  • Flash Sync
  • Alarm
  • Camera Ready
  • Output Enable
Výchozí nastavení: Ethernet (10BASE-T / 100BASE-TX)
Rozhraní:
  • TCP/UDP (Ethernet)
  • RS485
Vizualizace: web interface

Mechanické parametry

Šířka: 53 mm
Výška: 99.5 mm
Hloubka: 38 mm
Hmotnost: ≤ 250 g
Materiál:
  • housing: aluminum
  • cover glass: PMMA, integrated daylight filter (780 nm)

Podmínky prostředí

Pracovní teplota: +5 - +60 °C @ T = measurement point
Skladovací teplota: -20 - +70 °C
Teplota zařízení: max. +50 °C
Vlhkost: 0 - 90 % (non-condensing)
Třída krytí: IP 67
Odolnost vibracím:
  • IEC 60068-2-6
  • IEC 60068-2-64
Odolnost mechanickým rázům: EN 60068-2-27

Druhy kontrolních funkcí

Vyhledání dílu:
  • Part location on contours
  • Part location on edges
  • Part location on circle
  • Part location on text line
Geometrické veličiny:
  • Distance
  • circle
  • angle
  • count edges
  • point position
  • edge characteristics
Porovnání dle charakteristických vlastností:
  • count contour points
  • contour comparison
  • brightness
  • contrast
  • area size
  • count areas
  • pattern comparison

Prohlášení o shodě

Prohlášení o shodě:
  • CE
  • RoHS

Nevolatilní paměť

Velikost flash paměti: 256 Mbit Flash S29GL256P10FFI010
