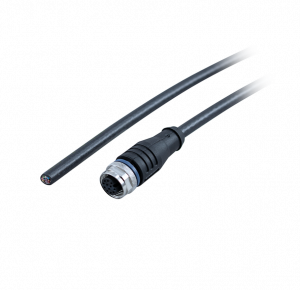

ESG 34JP2000GS

shielded process interface cable
M12/12-pin female connector to open wires
cable carrier compatible
suitable for robotic applications (+/- 180°/m, min. 500.000 torsion cycles)
length 20,0 m

Objednací číslo: 11195099
Výrobce: Baumer Electric AG

Dostupnost: 2 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Diagramy

Ke stažení

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Elektrické parametry

Stínění:	yes
Počet pinů konektoru:	12
Konektory:	M12 female connector, screw lock open wires
vhodné pro provoz s max. 60 V (nominálně 48 V):	yes
vhodné pro provoz s max. 60 V (nominálně 48 V):	The M12 connectors must comply with the IEC 61076-2-101 standard. The dielectric strength and withstand voltage for the plug/socket combination must be checked according to DIN EN 60664-1:2008-01 for 60 V.

Mechanické parametry

nejmenší poloměr ohybu:	30 mm
instalace s nejmenším poloměrem ohybu:	72 mm
Počet ohybových cyklů:	1000000
použitelné pro pohyblivé vedení:	yes
Délka kabelu [m]:	20 m
Materiál:	PUR, halogen-free

Rozhraní

Datové rozhraní:

Process interface

Podmínky prostředí

Ohnivzdornost:	IEC 60332-2-2
Bez obsahu halogenů:	DIN EN 50267-2-1
Pracovní teplota (statická):	-40 ... +90 °C
Pracovní teplota (pohyblivá instalace):	-25 ... +60 °C
Prohlášení o shodě:	UL RoHS
Třída krytí:	IP 65/67/68 (mounted)

Název produktu	Počet na skladě
ESG 34JP2000GS	2 ks
