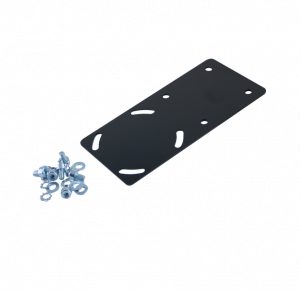

Fixation bracket VeriSens 1

Fixation bracket for VeriSens vision sensors incl. screws (hexagon socket) and washers

Objednací číslo: 10159905
Výrobce: Baumer Electric AG

Dostupnost: 1 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Mechanické parametry

Rozměry:	58 mm × 120 mm × 1,5 mm
Hmotnost:	≤ 94 g
Materiál:	powder-coated steel

Název produktu	Počet na skladě
Fastening bracket VeriSens 1	1 ks
