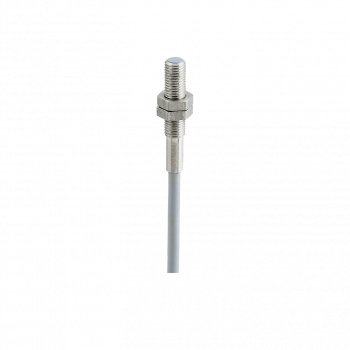

IR04.P0HS-F22.PO1Z.7SLU - Inductive proximity sensor Baumer

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Cylindrical miniature housing for limited installation space
Lowest serial dispersion due to end-of-line calibration
Robust even in demanding environments
Temperature and long-term stable switching behavior
PUR cable with high chemical resistance

Objednací číslo: 11725337
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Mám dotaz

Přidat do nezávazné poptávky

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Nominální snímací vzdálenost Sn:	0.8 mm
Zajištěná snímací vzdálenost Sa:	≤ 81 % of Sn
Reálná snímací vzdálenost Sr:	± 10 % von Sn
Teplotní drift:	± 10 % of Sr
Hystereze:	2 - 20 % of Sr
Výstupní indikátor:	LED red
Korekční faktor:	Mild steel 100 %, stainless steel 70 %, aluminum 45 %, copper 35 %
Referenční objekt:	Fe360 4 x 4 x 1 mm

Elektrické parametry

Spínací frekvence:	3 kHz
Rozsah napájecího napětí +Vs:	6 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	12 mA
Výstupní obvod:	PNP make function (NO)
Pokles napětí Vd:	<2 VDC
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál aktivní části:	POM
Materiál pouzdra:	Stainless steel (V2A)
Rozměry:	4 mm
Délka pouzdra:	22 mm
Způsoby připojení:	Flylead connector M8 3 pin
utahovací moment max.:	1.2 Nm
Hmotnost:	5 g

Okolní podmínky

Pracovní teplota:	-25 - +75 °C
Skladovací teplota:	-40 - +75 °C
Třída krytí:	IP 67
Odolnost vibracím:	IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
Odolnost vůči zkratu:	IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction

Bezpečnost

MTTF:	4007 years
Diagnostikované krytí (DC):	0 %

Kabel

Hlava A: Pohlaví:	Male
Hlava A: Úhlový vývod:	0°
Hlava A: Kódování:	A
Hlava A: Počet pólů:	3
Hlava A: LED:	No
Hlava A: Vroubkovaná matice:	Brass, surface Ni
Délka kabelu:	20 cm
Stíněný:	No
Vnější plášť: Materiál:	PUR
Průměr kabelu:	2.4 mm
Průřez vodičů:	0.08 mm²
Izolace: Materiál:	PP
Ohýbací rádius (pevná instalace):	3 × outer diameter
Ohýbací rádius (pohyblivá instalace):	10 × outer diameter

Nákresy

Výkresy

0863-IFRM_04xx5B1_KS35PML.png | stáhnout (png, 2025-07-11 19:28:43)

Diagram připojení

Zchn-0437-C.png | stáhnout (png, 2025-07-11 17:34:07)

Přiřazení pinů

M8-3Pol-männlich-A.png | stáhnout (png, 2025-07-12 06:37:55)

Diagram odezvy

IFRM_04P15B_FD_Schaltkeule_91_EN.png | stáhnout (png, 2025-07-12 08:02:16)

Ke stažení

Datový list

Data sheet – IR04.P0HS-F22.PO1Z.7SLU | stáhnout | zobrazit (ZH, pdf, 2025-04-11 11:30:34)
Data sheet – IR04.P0HS-F22.PO1Z.7SLU | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:30:34)
Data sheet – IR04.P0HS-F22.PO1Z.7SLU | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:30:34)

Certifikáty/ osvědčení

DoC / CoC - Ixxx_04 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:32:07)
MTTF_11725337 | stáhnout | zobrazit (DE/EN/FR, pdf, 2025-04-11 12:10:28)

CAD

Dummy-CAD.stp | stáhnout (stp, 2024-07-02 13:03:26)
