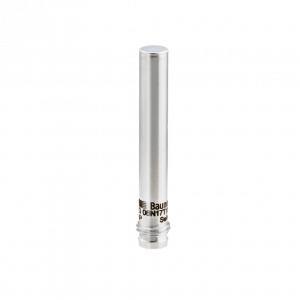

IFRD 06P17T1/S35 - Inductive sensors special versions - high temperature

Objednací číslo: 10154704, Výrobce: Baumer Electric AG

2 mm
PNP make function (NO)
connector M8
-25 … 100 °C
IP 69K

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Quasi-flush
Speciální typ:	Full metal housing (DuroProx) High temperature
Nominální snímací vzdálenost Sn:	2 mm
Hystereze:	2 - 20 % of Sr

Elektrické parametry

Spínací frekvence:	150 Hz
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	20 mA
Výstupní obvod:	PNP make function (NO)
Pokles napětí Vd:	<2 VDC
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Design:	Cylindrical smooth
Materiál aktivní části:	Stainless steel 1.4404 (V4A)
Materiál pouzdra:	Stainless steel 1.4404 (V4A)
Statický tlak:	< 20 bar
Rozměry:	6.5 mm
Délka pouzdra:	46 mm
Způsoby připojení:	Connector M8

Okolní podmínky

Pracovní teplota:	-25 - +100 °C
Třída krytí:	IP 69K
