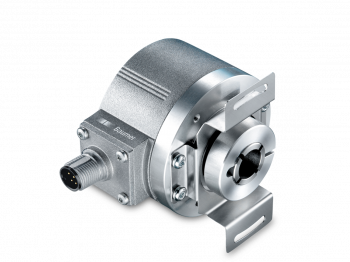

EIL580-BT12.5FN.02048.A

Size ø58 mm
Precise optical sensing
Output signal level HTL
Blind hollow shaft, ø12 mm
Flange connector M23, 12-pin CCW, radial
2048 pulses per revolution
High protection IP 65
High resistance to shock and vibrations

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	8...30 VDC
Ochrana proti přepólování:	Yes
Odolnost proti zkratu:	Yes (HTL)
Spotřeba:	≤70 mA
Pulzů na otáčku:	2048
Fázový posun:	90 ° ±10°
Střída:	40-60 %
Referenční signál:	Zero pulse, width 90° ±10 %
Typ snímání:	Optical
Výstupní frekvence:	≤160 kHz (HTL)
Výstupní signál:	A+, B+, R+, A-, B-, R-
Výstupní signál \| rozhraní:	HTL/push-pull
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-3
Schválení:	UL 508 / CSA 22.2

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø12 mm (blind hollow shaft)
Ochrana EN 60529:	IP 65
Provozní rychlost:	≤8000 rpm (+20 °C, IP 65)
Rozběhový točivý moment:	≤0.02 Nm (+20 °C, IP 65)
Materiál:	Housing: aluminium die-cast Flange: aluminium
Pracovní teplota:	-40...+85 °C
Relativní vlhkost:	90 % non-condensing
Odolnost:	EN 60068-2-6 Vibration 30 g, 10-2000 Hz EN 60068-2-27 Shock 250 g, 6 ms
Připojení:	Flange connector M23, 12-pin
Přibližná hmotnost:	300 g
