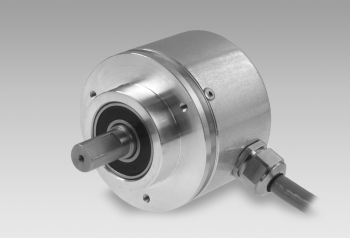

BRIV 58K

Encoder with solid shaft ø10 mm
Magnetic sensing method
Max. 2048 pulses per revolution
High resistance to shock and vibrations
High limit frequency
Clamping flange

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	5 VDC ±10 % 10...30 VDC
Spotřeba (typicky):	30 mA (5 VDC, w/o load) 15 mA (24 VDC, w/o load)
Pulzů na otáčku:	64 - 2048
Referenční signál:	Zero pulse, width 90°
Typ snímání:	Magnetic
Výstupní frekvence:	≤320 kHz
Výstupní signál:	A 90° B, N + inverted
Výstupní signál \| rozhraní:	Antivalent Push-pull short-circuit proof
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-3
Schválení:	UL approval / E217823

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø10 mm solid shaft (clamping flange)
Přípustné zatížení hřídele:	≤40 N axial ≤60 N radial
Příruba:	Clamping flange
Ochrana EN 60529:	IP 42 IP 65
Provozní rychlost:	≤12000 rpm (IP 42) ≤6000 rpm (IP 65)
Velikost provozního točivého momentu.:	0.0175 Nm (IP 42) 0.047 Nm (IP 65)
Materiál:	Housing: aluminium Flange: aluminium
Pracovní teplota:	-20...+85 °C
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration 30 g, 10-2000 Hz EN 60068-2-27 Shock 500 g, 6 ms
Připojení:	Connector M12, 5-pin Connector M12, 8-pin Connector M23, 12-pin Cable 2 m
Přibližná hmotnost:	150 g

Příslušenství

Obsahuje:Montážní příslušenství Konektory a kabely Kabely s volným koncem LED-Kabely s volným koncem

Montážní příslušenství

Foto	Produkt (2)
	Bellows coupling (D1=10 / D2=10)
	Clamp set ø15 mm

Konektory a kabely

Foto	Produkt (4)
	Female connector M12, 5-pin, straight, without cable
	Female connector M23, 12-pin, straight, 2 m cable
	Female connector M23, 12-pin, straight, 5 m cable
	Female connector M23, 12-pin, straight, without cable

Kabely s volným koncem
