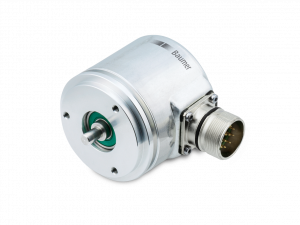

EIL576S-S

Encoder with solid shaft ø10 mm or ø6 mm
Max. 2500 pulses per revolution
Optical sensing method
Clamping or synchro flange
High rotation speed up to 10000 rpm
Compact design
For safety-relevant applications in compliance with SIL2 (Safety Integrity Level 2)

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

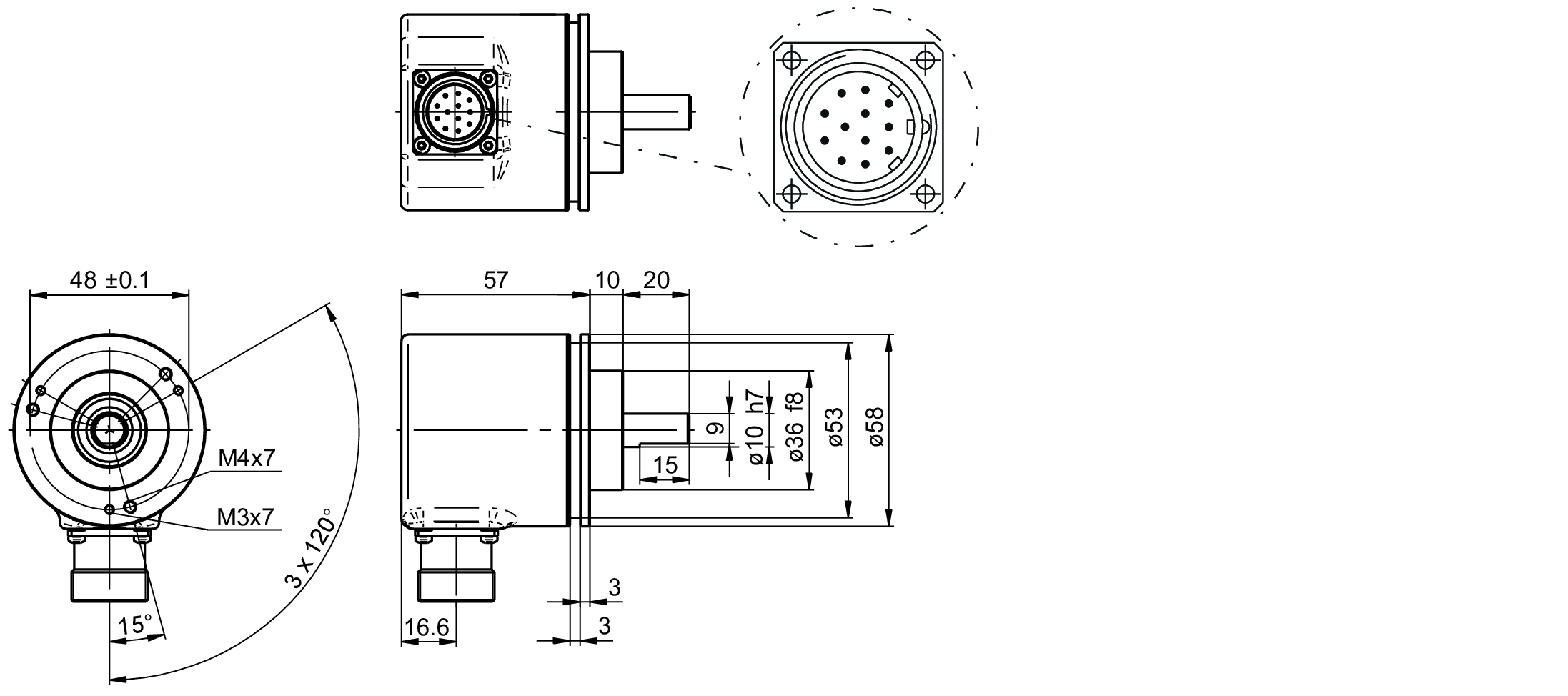

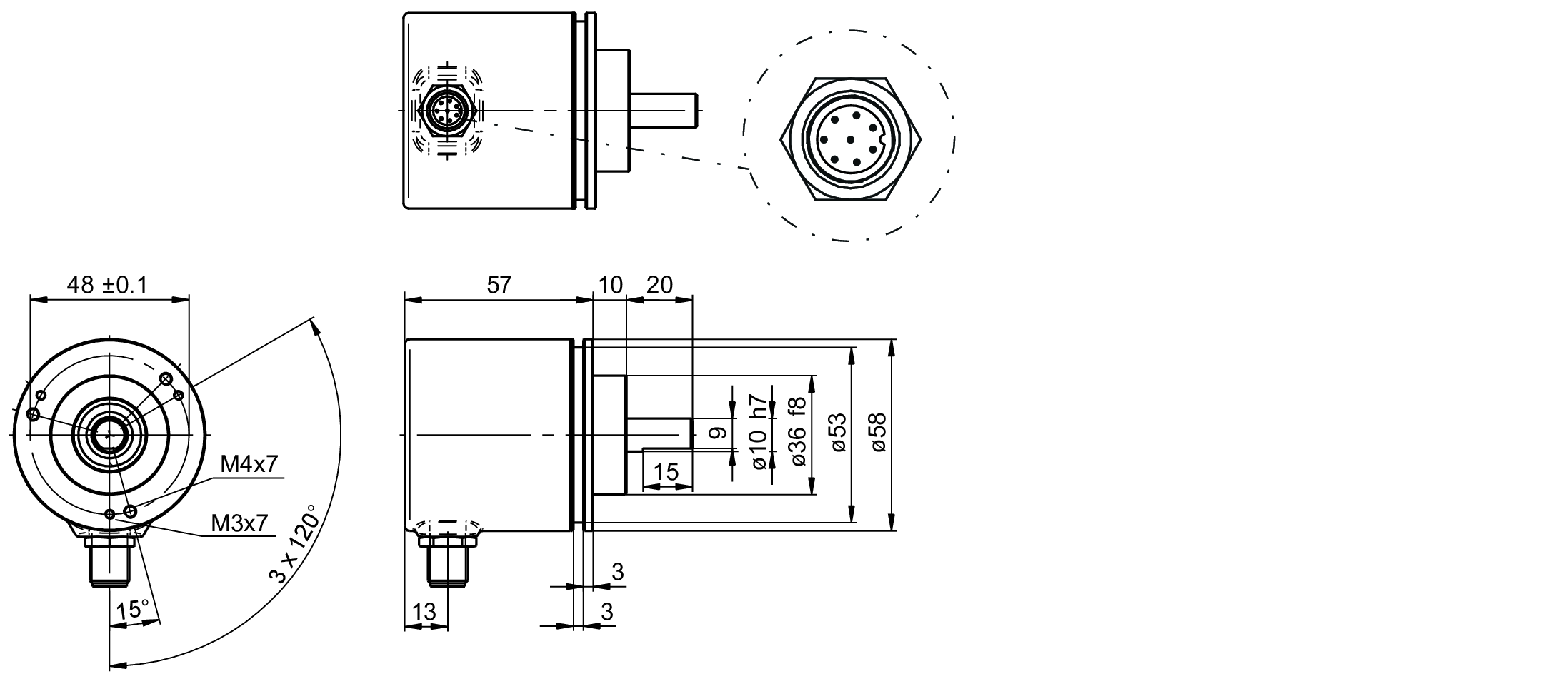

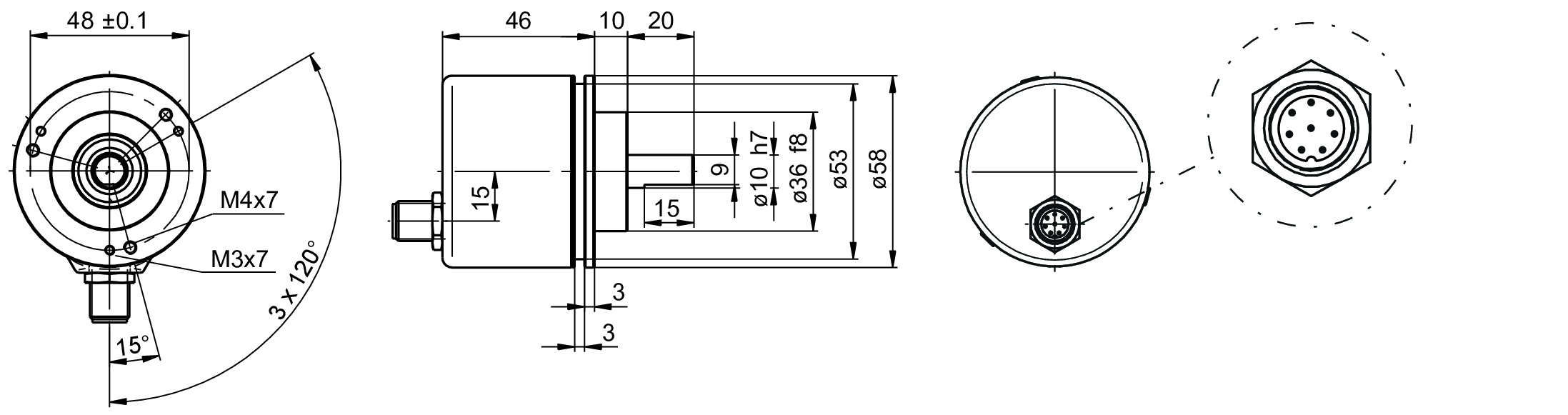

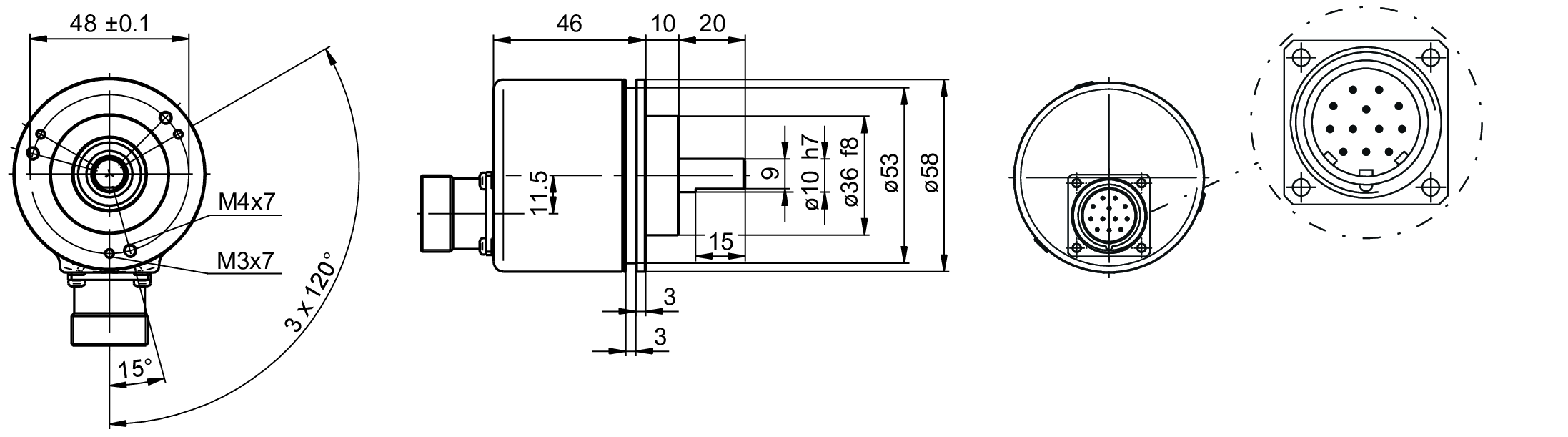

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	24 VDC +20/-50 %
Ochrana proti přepólování:	Yes
Spotřeba:	≤30 mA
Pulzů na otáčku:	1000 - 2500
Referenční signál:	Zero pulse 70...720° electr.
Typ snímání:	Optical
Výstupní frekvence:	≤150 kHz
Výstupní signál:	A 90° B + inverted
Výstupní signál \| rozhraní:	Linedriver/RS422 Push-pull short-circuit proof
Bezpečnostní provozní údaje:	Encoder operating life: 20 years PFH: 1.16E-08 1/h SFF: >90 %
Odolnost proti rušení dle:	EN 61000-6-2 IEC 61326-3-1
Vyzařované rušení dle:	EN 61000-6-4
Schválení:	UL approval / E63076 SIL2 approval according to EN 61508

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø6 mm solid shaft (synchro flange) ø10 mm solid shaft (clamping flange)
Přípustné zatížení hřídele:	≤20 N axial ≤40 N radial
Příruba:	Clamping or synchro flange
Ochrana EN 60529:	IP 54 (without shaft seal) IP 65 (with shaft seal)
Provozní rychlost:	≤10000 rpm
Rozběhový točivý moment:	≤0.015 Nm (+25 °C, IP 54) ≤0.03 Nm (+25 °C, IP 65)
Moment setrvačnosti rotoru:	14.5 gcm²
Materiál:	Housing: aluminium Flange: aluminium
Pracovní teplota:	-25...+85 °C
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration 10 g, 16-2000 Hz EN 60068-2-27 Shock 100 g, 6 ms
Připojení:	Flange connector M12, 8-pin Flange connector M23, 12-pin
Přibližná hmotnost:	250 g
