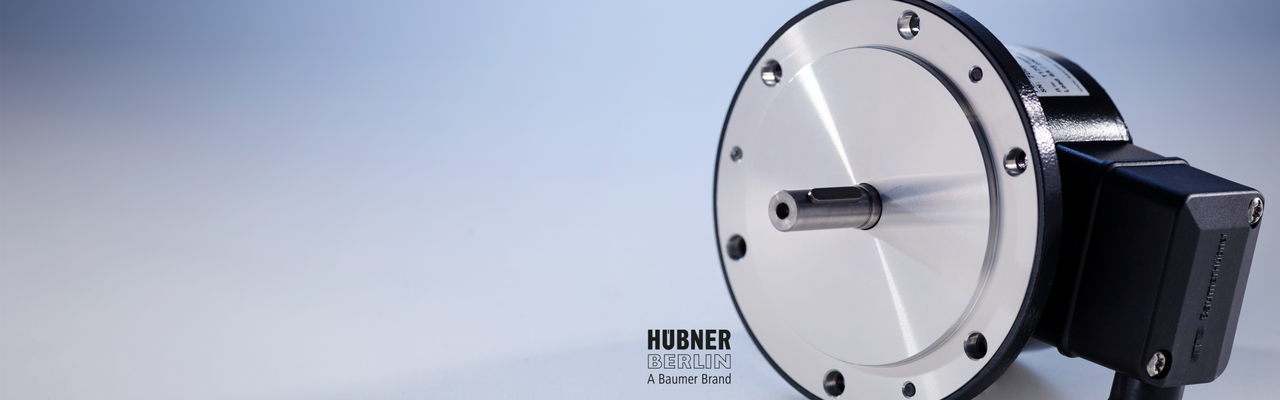

HeavyDuty enkodéry s rychlostními spínači

HeavyDuty enkodéry s rychlostními spínači

Baumer

Ondřej Štěpánek
Ondřej Štěpánek
Produktový manažer
BAUMER
Ondřej Štěpánek - QR Kontakt
FotoProdukt (39) / PopisModelCertifikaceRozhraníSkladová dostupnost
AMG 11 + FSL
  • Multiturn / SSI / Profibus / CANopen® / DeviceNet
  • Singleturn 13 bit, multiturn 12 bit / 16 bit
  • Mechanical speed monitoring based on centrifugal force
  • EURO flange B10 / solid shaft ø11 mm
  • Multiturn sensing with microGen technologie, without gear or battery
  • Available with redundant absolute signals
  • Special protection against corrosion
Absolutní
CE
SSI
Profibus
CANopen®
DeviceNet
na dotaz
DS 93
  • Freely programmable on and off switching speed
  • 3 adjustable switching speeds
  • Actual speed indicator
  • Switching points adjustable up to 20000 rpm
  • Switching points can be adjusted individually for both rotating directions
  • Suitable for rugged environment
Samostatné rychlostní spínače
CE
na dotaz
ES 90
  • Electronic speed monitoring
  • Circuit breaker with one selectable threshold speed
  • Relay output with isolated changeover contact
Samostatné rychlostní spínače
CE
na dotaz
ES 93
  • Electronic speed monitoring
  • Circuit breaker with three selectable threshold speeds
  • Three independent transistor outputs, adjusting ±10 % above 1000 rpm
Samostatné rychlostní spínače
CE
na dotaz
FS 90
  • Mechanical speed monitoring based on centrifugal force
  • Fixed switching speed
  • Switch with insulated make and break contact
Samostatné rychlostní spínače
CE
na dotaz
HMG 11 + ESL 90
  • Multiturn / SSI / Profibus / CANopen® / DeviceNet
  • Singleturn 13 bit, multiturn 12 bit / 16 bit
  • Electronic speed monitoring
  • Circuit breaker with up to three selectable threshold speeds
  • Multiturn sensing with microGen technologie, without gear or battery
  • Available with redundant absolute signals
  • Special protection against corrosion
Absolutní
SSI
Profibus
CANopen®
DeviceNet
na dotaz
HMG 11 + ESL 93
  • Multiturn / SSI / Profibus / CANopen® / DeviceNet
  • Singleturn 13 bit, multiturn 12 bit / 16 bit
  • Electronic speed monitoring
  • Circuit breaker with up to three selectable threshold speeds
  • Multiturn sensing with microGen technologie, without gear or battery
  • Available with redundant absolute signals
  • Special protection against corrosion
Absolutní
SSI
Profibus
CANopen®
DeviceNet
na dotaz
HMG 11 + FSL
  • Multiturn / SSI / Profibus / CANopen® / DeviceNet
  • Singleturn 13 bit, multiturn 12 bit / 16 bit
  • Mechanical speed monitoring based on centrifugal force
  • Blind hollow shaft up to ø20 mm or cone shaft ø17 mm (1:10)
  • Multiturn sensing with microGen technologie, without gear or battery
  • Available with redundant absolute signals
  • Special protection against corrosion
Absolutní
CE
SSI
Profibus
CANopen®
DeviceNet
na dotaz
HOG 10 + DSL
  • Freely programmable on and off switching speed
  • Programming via included software (RS485 interface)
  • Logic level HTL or TTL
  • 512…2500 pulses per revolution
  • Blind hollow shaft ø16 mm
  • DSL.R: 3 outputs speed controlled (independent transistor outputs)
  • DSL.E: 2 outputs speed controlled and 1 control output
Inkrementální
II 3 G Ex ec IIC T4 Gc (gas)
Ex II 3D/3G (ATEX)
(only with option ATEX)
RS485
na dotaz
HOG 10 + ESL 90
  • TTL output driver for cable length up to 550 m
  • Electronic speed monitoring
  • Circuit breaker with one selectable threshold speed
  • Hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
Inkrementální
na dotaz
HOG 11 + ESL 90
  • Offshore and salt water firm, high protection IP 67
  • TTL output driver for cable length up to 550 m
  • Electronic speed monitoring
  • Circuit breaker with one selectable threshold speed
  • Hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
Inkrementální
na dotaz
HOG 11 + ESL 93
  • Offshore and salt water firm, high protection IP 67
  • TTL output driver for cable length up to 550 m
  • Electronic speed monitoring
  • Circuit breaker with up to three selectable threshold speeds
  • Hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
Inkrementální
na dotaz
HOG 11 + FSL
  • Offshore and salt water firm, high protection IP 67
  • TTL output driver for cable length up to 550 m
  • Mechanical speed monitoring based on centrifugal force
  • Hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
Inkrementální
CE
na dotaz
HOG 16 + DSL
  • Freely programmable switch-on and switch-off speed
  • Programming via included software (RS485 interface)
  • Output stages HTL or TTL
  • DSL.R: 3 outputs speed controlled
  • DSL.E: 2 outputs speed controlled and 1 control output
Inkrementální
CE
RS485
na dotaz
HOG 165 + DSL
  • Freely programmable on and off switching speed
  • Programming via included software (RS485 interface)
  • Logic level TTL or HTL
  • 512...4096 pulses per revolution
  • Through hollow shaft ø25 mm
  • DSL.R: 3 outputs speed controlled (independent transistor outputs)
  • DSL.E: 2 outputs speed controlled and 1 control output
Inkrementální
II 3 G Ex ec IIC T4 Gc (gas)
Ex II 3D/3G (ATEX)
(only with option ATEX)
RS485
na dotaz
HOG 86 + DSL
  • Robust, compact housing
  • Hybrid bearing for extended service life
  • 3 switching outputs speed controlled (independent transistor outputs)
  • Freely programmable on and off switching speed
  • Programming via included software (RS485 interface)
  • Output stage HTL or TTL
Inkrementální
CE
RS485
na dotaz
HOG 86 + FSL
  • Mechanical speed monitoring based on centrifugal force
  • Robust, compact housing
  • Two-sided bearing system with optimal bearing spacing
  • Shaft load up to 450 N
  • Shaft insulation up to 2.8 kV
  • Terminal boxes, turn by 180°
Inkrementální
CE
na dotaz
HOG10 DN 1024 I LR 16H7 + ESL93
  • HTL output driver for cable length up to 350 m
  • Electronic speed monitoring
  • Circuit breaker with up to three selectable threshold speeds
  • Double-side bearing with hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
  • Sealing system for dusty environment
Inkrementální
na dotaz
HOG10 DN 1024 I LR 16H7 + FSL3
  • HTL output driver for cable length up to 350 m
  • Mechanical speed monitoring based on centrifugal force
  • Double-side bearing with hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
  • High resistance to shock and vibrations
  • Sealing system for dusty environment
Inkrementální
na dotaz
HOG10 DN 1024 I LR 16H7 + FSL4
  • HTL output driver for cable length up to 350 m
  • Mechanical speed monitoring based on centrifugal force
  • Double-side bearing with hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
  • High resistance to shock and vibrations
  • Sealing system for dusty environment
Inkrementální
na dotaz
HOG10 DN 1024 I LR 16H7 + FSL6
  • HTL output driver for cable length up to 350 m
  • Mechanical speed monitoring based on centrifugal force
  • Double-side bearing with hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
  • High resistance to shock and vibrations
  • Sealing system for dusty environment
Inkrementální
na dotaz
HOG10 DN 1024 I SR 16H7 + FSL2
  • HTL output driver for cable length up to 350 m
  • Mechanical speed monitoring based on centrifugal force
  • Double-side bearing with hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
  • High resistance to shock and vibrations
  • Sealing system for oily-wet environment
Inkrementální
na dotaz
HOG10 DN 1024 I SR 16H7 + FSL3
  • HTL output driver for cable length up to 350 m
  • Mechanical speed monitoring based on centrifugal force
  • Double-side bearing with hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
  • High resistance to shock and vibrations
  • Sealing system for oily-wet environment
Inkrementální
na dotaz
HOG10 DN 1024 I SR 16H7 + FSL4
  • HTL output driver for cable length up to 350 m
  • Mechanical speed monitoring based on centrifugal force
  • Double-side bearing with hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
  • High resistance to shock and vibrations
  • Sealing system for oily-wet environment
Inkrementální
na dotaz
HOG10 DN 2048 I LR 16H7 + FSL2
  • HTL output driver for cable length up to 350 m
  • Mechanical speed monitoring based on centrifugal force
  • Double-side bearing with hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
  • High resistance to shock and vibrations
  • Sealing system for dusty environment
Inkrementální
na dotaz
POG 10 + DSL
  • Freely programmable on and off switching speed
  • Programming via included software (RS485 interface)
  • TTL or HTL, 512...2500 pulses per revolution
  • EURO flange B10 and/or housing foot B3 / solid shaft ø11 mm
  • DSL.R: 3 outputs speed controlled (independent transistor outputs)
  • DSL.E: 2 outputs speed controlled and 1 control output
Inkrementální
II 3 G Ex ec IIC T4 Gc (gas)
Ex II 3D/3G (ATEX)
(only with option ATEX)
RS485
na dotaz
POG 10 + ESL 90
  • TTL output driver for cable length up to 550 m
  • Electronic speed monitoring
  • Circuit breaker with one selectable threshold speed
  • EURO flange B10 / solid shaft ø11 mm
  • Terminal boxes, turn by 180°
Inkrementální
na dotaz
POG 10 + ESL 93
  • TTL output driver for cable length up to 550 m
  • Electronic speed monitoring
  • Circuit breaker with up to three selectable threshold speeds
  • EURO flange B10 / solid shaft ø11 mm
  • Terminal boxes, turn by 180°
Inkrementální
na dotaz
POG 11 + ESL 90
  • Offshore and salt water firm, high protection IP 67
  • TTL output driver for cable length up to 550 m
  • Electronic speed monitoring
  • Circuit breaker with one selectable threshold speed
  • EURO flange B10 / solid shaft ø11 mm
  • Terminal boxes, turn by 180°
Inkrementální
na dotaz
POG 11 + ESL 93
  • Offshore and salt water firm, high protection IP 67
  • TTL output driver for cable length up to 550 m
  • Electronic speed monitoring
  • Circuit breaker with up to three selectable threshold speeds
  • EURO flange B10 / solid shaft ø11 mm
  • Terminal boxes, turn by 180°
Inkrementální
na dotaz
POG 11 + FSL
  • Offshore and salt water firm, high protection IP 67
  • TTL output driver for cable length up to 550 m
  • Mechanical speed monitoring based on centrifugal force
  • EURO flange B10 / solid shaft ø11 mm
  • Terminal boxes, turn by 180°
Inkrementální
CE
na dotaz
POG 86 + FSL
  • Mechanical speed monitoring based on centrifugal force
  • Robust, compact housing
  • Two bearings with large distance, one at each end
  • High shaft load up to 350 N
  • TTL output driver for cable length up to 550 m
  • Terminal boxes, turn by 180°
Inkrementální
CE
na dotaz
POG 9 + ESL 90
  • TTL output driver for cable length up to 550 m
  • Electronic speed monitoring
  • Circuit breaker with one selectable threshold speed
  • EURO flange B10 / solid shaft ø11 mm
  • Terminal boxes, turn by 180°
Inkrementální
na dotaz
POG 9 + ESL 93
  • TTL output driver for cable length up to 550 m
  • Electronic speed monitoring
  • Circuit breaker with up to three selectable threshold speeds
  • EURO flange B10 / solid shaft ø11 mm
  • Terminal boxes, turn by 180°
Inkrementální
na dotaz
POG 90 + ESL 90
  • Max. 10000 pulses per revolution
  • Electronic speed monitoring
  • Circuit breaker with one selectable threshold speed
  • EURO flange B10 / solid shaft ø11 mm
  • Terminal boxes, turn by 180°
Inkrementální
CE
na dotaz
POG 90 + ESL 93
  • Max. 10000 pulses per revolution
  • Electronic speed monitoring
  • Circuit breaker with up to three selectable threshold speeds
  • EURO flange B10 / solid shaft ø11 mm
  • Terminal boxes, turn by 180°
Inkrementální
CE
na dotaz
POG 90 + FSL
  • Max. 10000 pulses per revolution
  • Mechanical speed monitoring based on centrifugal force
  • EURO flange B10 / solid shaft ø11 mm
  • Terminal boxes, turn by 180°
Inkrementální
CE
na dotaz
POG10 DN 1024 I + FSL2
  • TTL output driver for cable length up to 550 m
  • Mechanical speed monitoring based on centrifugal force
  • Double-side bearing for extended service life
  • Terminal boxes, turn by 180°
  • High resistance to shock and vibrations
Inkrementální
CE
na dotaz
POG9 DN 1024 I + FSL2
  • HTL output driver for cable length up to 350 m
  • Mechanical speed monitoring based on centrifugal force
  • Hybrid bearing for extended service life
  • Terminal boxes, turn by 180°
  • High resistance to shock and vibration
Inkrementální
CE
na dotaz

Přesné a spolehlivé monitorování změn rychlosti. Bezkonkurenční životnost díky dlouholetým zkušenostem výrobce Hübner Berlin.

Osvědčená robustní konstrukce HeavyDuty enkodérů s rychlostními spínači od Baumeru. Široký výběr provedení - mechanické, elektronické nebo digitální. Snímače lze dodat samostatně, v kombinací s enkodérem nebo jako komplexní řešení pro integraci do zařízení. Spínací rychlost je továrně nastavena nebo uživatelsky konfigurovatelná prostřednictvím PC.
