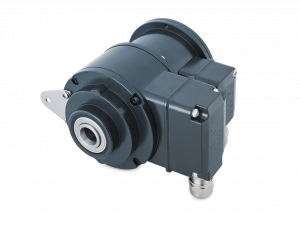

HOG10 DN 1024 I LR 16H7 + ESL93

HTL output driver for cable length up to 350 m
Electronic speed monitoring
Circuit breaker with up to three selectable threshold speeds
Double-side bearing with hybrid bearing for extended service life
Terminal boxes, turn by 180°
Sealing system for dusty environment

Objednací číslo: 11075614
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Izolace hřídele:	Suitable up to 2.8 kV
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-3

Elektrické vlastnosti (enkodér)

Napájecí napětí:	9...30 VDC
Spotřeba:	≤100 mA
Pulzů na otáčku:	1024
Fázový posun:	90 ° ±20°
Střída:	40-60 %
Referenční signál:	Zero pulse, width 90°
Výstupní frekvence:	≤120 kHz
Výstupní signál:	K1, K2, K0 + inverted
Výstupní signál \| rozhraní:	HTL
Typ snímání:	Optical

Technické údaje - elektrické jmenovité hodnoty (přepínač rychlosti)

Napájecí napětí:	12 VDC ±10 %
Spotřeba:	≤5 mA
Spínací přesnost:	± 4 % (≤1500 rpm) ± 2 % (>1500 rpm)
Spínací hystereze:	= 30 % of switching speed
Spínací výstup:	3 outputs, speed control
Výstupní proud:	40 mA (DC)
Čas zpoždění spínání:	≤40 ms

Mechanické provedení

Rozměr (příruby):	ø105 mm
Typ hřídele:	ø16 mm (blind hollow shaft)
Přípustné zatížení hřídele:	≤450 N axial, ≤600 N radial
Ochrana EN 60529:	IP 66
Rozsah spínací rychlosti(ns):	3x 200...5000 rpm
Velikost provozního točivého momentu.:	6 Ncm
Moment setrvačnosti rotoru:	680 gcm²
Materiál:	Housing: aluminium die-cast Shaft: stainless steel
Pracovní teplota:	-20...+85 °C
Odolnost:	IEC 60068-2-6 Vibration 5 g, 10-2000 Hz IEC 60068-2-27 Shock 50 g, 6 ms
Ochrana proti korozi:	IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2
Izolace hřídele:	2.8 kV
Přenosová vzdálenost:	≤350 m at 100 kHz (HTL-P)
Připojení:	2x terminal box
Přibližná hmotnost:	2.3 kg
Schválení:	CE
