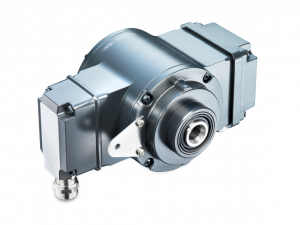

HOG 10 + DSL

Freely programmable on and off switching speed
Programming via included software (RS485 interface)
Logic level HTL or TTL
512…2500 pulses per revolution
Blind hollow shaft ø16 mm
DSL.R: 3 outputs speed controlled (independent transistor outputs)
DSL.E: 2 outputs speed controlled and 1 control output

Objednací číslo: HOG10+DSL
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	With DSL.R: 15...30 VDC With DSL.E: 9...30 VDC
Spotřeba:	≤200 mA
Izolace hřídele:	Suitable up to 2.8 kV

Elektrické vlastnosti (enkodér)

Pulzů na otáčku:	512 - 2500
Fázový posun:	90 ° ±20°
Střída:	40-60 %
Referenční signál:	Zero pulse, width 90°
Výstupní frekvence:	≤120 kHz
Výstupní signál:	K1, K2, K0 + inverted
Výstupní signál \| rozhraní:	HTL TTL/RS422
Typ snímání:	Optical

Technické údaje - elektrické jmenovité hodnoty (přepínač rychlosti)

Rozhraní:	RS485
Spínací přesnost:	± 2 % (or Digit)
Spínací výstup:	With DSL.R: 3 outputs, speed control With DSL.E: 2 outputs, speed control and 1 control output
Výstupní spínací napětí:	With DSL.R: 12 VDC; ≤40 mA With DSL.E: 5...230 VAC/VDC; 5...250 mA (EAC: <50 VAC / 75 VDC)
Čas zpoždění spínání:	≤40 ms

Mechanické provedení

Rozměr (příruby):	ø105 mm
Typ hřídele:	ø16 mm (blind hollow shaft)
Přípustné zatížení hřídele:	≤450 N axial ≤600 N radial
Ochrana EN 60529:	IP 66
Rychlost spínání:	≤6000 rpm
Rozsah spínací rychlosti(ns):	Pulses = 512: ±16...6000 rpm Pulses = 1024: ±8...6000 rpm Pulses = 2048: ±4...3500 rpm Pulses = 2500: ±3...2900 rpm
Kroutící moment:	≤2 Ncm
Moment setrvačnosti rotoru:	340 gcm²
Materiál:	Housing: aluminium Shaft: stainless steel
Pracovní teplota:	-30...+85 °C
Odolnost:	IEC 60068-2-6 Vibration 10 g, 10-2000 Hz IEC 60068-2-27 Shock 200 g, 6 ms
Ochrana proti korozi:	IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2
Explozivní prostředí:	II 3 G Ex ec IIC T4 Gc (gas) II 3 D Ex tc IIIC T135°C Dc (dust) (only with option ATEX)
Připojení:	Terminal box
Přibližná hmotnost:	3.1 kg
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-3
Schválení:	CE
