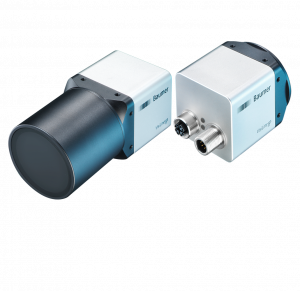

VLG-40M.2.I

2040 × 2044 px
ams (CMOSIS) CMV4000 V3
1″ CMOS
29 fps
Gigabit Ethernet

Objednací číslo: 11115306
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Informace o snímači

Snímač:	ams (CMOSIS) CMV4000 V3
Mono/Color:	Mono
Typ snímače:	1″ CMOS
Typ závěrky:	Global shutter
Rozlišení:	2040 × 2044 px
Rozměry pixelu:	5.5 × 5.5 µm
Expoziční čas:	0.02 - 1000 ms

Kvalita dat (EMVA 1288)

Temný šum:	11.3 e-
Saturační kapacita:	10028 e-
Dynamický rozsah:	58.6 dB
Poměr signál/šum:	40 dB
Kvantová účinnost:	52.7 % @ 536 nm

Formáty obrazu

Formáty obrazu, max. frekvence snímků na komunikačním rozhraní:	Full Frame, 2040 × 2044 px, max. 29 fps
Formát pixelu:	Mono8 Mono12 Mono12 Packed

Předzpracování obrazu

Analogové ovládací prvky:	Gain (0 - 8 dB) Offset (0 - 255 LSB 12 Bit)
Barevné modely:	Mono

Funkce kamery

Synchronizace:	free running trigger
Zdroje spouštěcího signálu (trigger):	Hardware Software ActionCommand
Zpoždění spouštěcího signálu (trigger):	0 - 2 sec, tracking and buffering of up to 512 trigger signals
Sequencer:	Automated control for series of images using different sets of parameters
Parametry sequenceru:	Exposure time gain factor Output ROI Offset x ROI Offset y
Digitální vstupy:	1 input line
Digitální výstupy:	3 output lines
Interní vyrovnávací paměť:	120 MB

Rozhraní a připojení

Datové rozhraní:	Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer Rate 100 Mbits/sec, Connector: SACC-CI-M12FS-8CON-L180-10G
Komunikační rozhraní / napájení:	SACC-CI-M12MS-8CON-SH TOR 32 / 8 pins

Mechanické parametry

Závit objektivu:	C-mount
Šířka:	46 mm
Výška:	46 mm
Hloubka:	49.8 mm
Hmotnost:	≤ 185 g ≤ 220 g (incl. tube)
Materiál:	aluminum, IP 65 / 67

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 24 V DC (external power supply) 36 - 57 V DC (Power over Ethernet)
Spotřeba energie:	Approx. 3.6 W @ 12 VDC and 29.0 fps Approx. 3.7 W @ 48 VDC (PoE) and 23.5 fps

Nevolatilní paměť

Velikost flash paměti:

128 kB

Podmínky prostředí

Pracovní teplota:	+5 - +50 °C
Vlhkost:	10 - 90 % (non-condensing)
Třída krytí:	IP 40 IP 54 (with mounted tube and cable) IP 65 (with mounted tube and cable) IP 67 (with mounted tube and cable) IP 69K (with stainless steel housing accessory)

Digitální vstupy|výstupy

Linky:

1 input line
3 output lines

Prohlášení o shodě

Prohlášení o shodě:

CE
RoHS

Foto	Produkt (1) / Popis	Skladová dostupnost
	Z-Power Supply Kit QX VisiLine IP int. universal power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR power supply and process interface adapter cable for QX and VisiLine IP cameras, length 2,0 m	na dotaz

Foto	Produkt (1) / Popis	Skladová dostupnost
	VisiLine GigE Starter Kit GigE PCIe interface board Gigabit Ethernet cable 3,0 m process interface cable 5,0 m Power Supply Kit VisiLine int. Mounting Adapter Type A (Front) Mounting Adapter Type B (Tripod) Software (WINDOWS, LINUX, LINUX ARM) via Download camera not included	na dotaz

Foto	Produkt (3) / Popis	Skladová dostupnost
	PCIe Ethernet Server Adapter I210 Gigabit Ethernet network adapter PCIe x1 (single lane) server adapter single GigE port supports screw lock connectors	na dotaz
	ZVA-Intel_Eth_Serv Adaptr_I350-T2V2 Gigabit Ethernet network adapter PCIe x2 (dual lane) server adapter single GigE port	na dotaz
	ZVA-PCIe-1672E-AE Gigabit Ethernet interface board PCIe x4 (quad lane) Dual GigE port Note: 4 lane PCI Express connector required	na dotaz

Foto	Produkt (5) / Popis	Skladová dostupnost
	Close-up ring set ZVS-FP-RGST six-piece Close-up ring set ZVS-FP-RGST six-piece 0,5, 1, 5, 10, 20, 40 mm	1 ks
	Filter CL/27 (R2) ROT PENTAX Ricoh color filter (red)	na dotaz
	Filter Pol PENTAX PL27 Ricoh polarization filter linear filter thread	na dotaz
	ZVI-FILTER POL. PL30.5 C91353 Ricoh polarization filter linear filter thread M30.5	na dotaz
	ZVI-Filter Pol. PL40.5 C91301 Ricoh polarization filter linear filter thread M40.5	1 ks

Foto	Produkt (29) / Popis	Skladová dostupnost
	Obj Kowa LM12HC 12mm/f1,4 Kowa lens 12,5 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM12HC-SW 12,5mm/f1,4 Kowa lens 12,5 mm F 1,4-16 format 1" locating screw for aperture and focus via RS485 interface M.O.D. 0,9 m C-mount	na dotaz
	Obj Kowa LM16HC 16mm/f1,4 Kowa lens 16 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM25HC 25mm/f1,4 Kowa lens 25 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	1 ks
	Obj Kowa LM25HC-SW 25mm/f1,4 Kowa lens 25 mm F 1,4-16 format 1" M.O.D. 0,3 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM35HC 35mm/f1,4 Kowa lens 35 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM35HC-SW 35mm/f1,4 Kowa lens 35 mm F 1,4-16 format 1" M.O.D. 0,4 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM50HC 50mm/f1,4 Kowa lens 50 mm F 1,4-16 format 1" M.O.D. 0,5 m C-mount	na dotaz
	Obj LINOS MeVis C 25mm/f1,6 Linos lens 25 mm F 1,6-16 format 1" M.O.D. 0,26 m C-mount	na dotaz
	Obj TOURMALINE 2,8/50 C Schneider Kreuznach lens 50 mm F 2,8-16 format 1.3" M.O.D. 0,135 m C-mount	na dotaz
	Obj TURQUOISE 1,8/16 C Schneider Kreuznach lens 16 mm F 1,8-22 format 1" M.O.D. 0,155 m C-mount	na dotaz
	Obj TURQUOISE 1,9/10 C Schneider Kreuznach lens 10 mm F 1,9-16 format 1" M.O.D. 0,092 m C-mount	na dotaz
	ZVL-Dimension_2.8/8_C Carl Zeiss lens 8 mm F 2,8-22 format 4/3\'\' M.O.D. 0,102 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/12_C Carl Zeiss lens 12 mm F 2,0-22 format 4/3\'\' M.O.D. 0,101 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/18_C Carl Zeiss lens 18 mm F 2,0-22 format 4/3\'\' M.O.D. 0,090 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/25_C Carl Zeiss lens 25 mm F 2,0-22 format 4/3\'\' M.O.D. 0,152 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/35_C Carl Zeiss lens 35 mm F 2,0-22 format 4/3\'\' M.O.D. 0,209 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/50_C Carl Zeiss lens 50 mm F 2,0-22 format 4/3\'\' M.O.D. 0,311 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC1220-9M Ricoh Imaging lens 12 mm F 2.0-16 format 1,1" M.O.D. 0.08 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC1618-9M Ricoh Imaging lens 16 mm F 1.8-16 format 1,1" M.O.D. 0.08 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC2518-9M Ricoh Imaging lens 25 mm F 1,8-16 format 1,1" M.O.D. 0,1 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC3518-9M Ricoh Imaging lens 35 mm F 1,6-16 format 1,1" M.O.D. 0,15 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC5024-9M Ricoh Imaging lens 50 mm F 2,4-22 format 1,1" M.O.D. 0,2 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V0828-MPY Computar lens 8 mm F 2,8-16 format 1,1" M.O.D. 0,2 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V1228-MPY Computar lens 12 mm F 2,8-16 format 1,1" M.O.D. 0,3 m locating screw for aperture and focus C-mount	1 ks
	ZVL-V1628-MPY Computar lens 16 mm F 2,8-16 format 1,1" M.O.D. 0,3 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V2528-MPY Computar lens 25 mm F 2,8-16 format 1,1" M.O.D. 0,3 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V3528-MPY Computar lens 35 mm F 2,8-16 format 1,1" M.O.D. 0,3 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V5028-MPY Computar lens 50 mm F 2,8-16 format 1,1" M.O.D. 0,55 m locating screw for aperture and focus C-mount	na dotaz

Foto	Produkt (1) / Popis	Skladová dostupnost
	GigE Power Switch GigE switch PoE and Jumbo Frame support 4x 1000base-T DIN rail mounting operating voltage: 24-48 V; PoE requires 48 V	na dotaz

Foto	Produkt (10)
	Cable GigE M12X/RJ45, STP 10.0m, flex
	Cable GigE M12X/RJ45, STP 15.0m, flex
	Cable GigE M12X/RJ45, STP 2.0m, flex
	Cable GigE M12X/RJ45, STP 20.0m, flex
	Cable GigE M12X/RJ45, STP 30.0m, flex
	Cable GigE M12X/RJ45, STP 5.0m, flex
	CAM12.X8-11230367
	CAM12.X8-11230493
	CAM12.X8-11230494
	CAM12.X8-11230495

Foto	Produkt (3) / Popis	Skladová dostupnost
	Heat Sink Type A heat sink for TX, VCXG.I, VisiLine, VisiLine IP, LX and HX cameras incl. screws (hexagon socket) and washers 48 mm x 33 mm x 16,5 mm	1 ks
	Mounting Adapter Type B (Tripod) camera mounting adapter for TX, VisiLine, VisiLine IP, VCXG.I, LXG, LXC, PX and SX/HX cameras incl. screws (hexagon socket) and washers stable bottom and tripod mounting	na dotaz
	Mounting Adapter Type C camera mounting adapter for TX, VisiLine, VisiLine IP, VCXG.I, LX and HX cameras incl. screws (hexagon socket) and washers stable sidewise mounting	na dotaz

Produkt (7)	Senzor	Senzor typ	Barevné modely	Snímkovací frekvence	Rozlišení senzoru	Skladová dostupnost
VLG-22C.I	ams (CMOSIS) CMV2000	2/3″ CMOS	RGB YUV Mono	51 … 100 fps	2040 × 1084 px	na dotaz
VLG-22M.I	ams (CMOSIS) CMV2000	2/3″ CMOS	Mono	51 … 100 fps	2040 × 1084 px	na dotaz
VLG-23M.I	Sony IMX174 Gen1	1/1.2" CMOS	Mono	51 … 100 fps	1920 × 1200 px	na dotaz
VLG-40C.2.I	ams (CMOSIS) CMV4000 V3	1″ CMOS	RGB YUV Mono	21 … 30 fps	2040 × 2044 px	na dotaz
VLG-40C.I	ams (CMOSIS) CMV4000	1″ CMOS	RGB YUV Mono	21 … 30 fps	2040 × 2044 px	na dotaz
VLG-40M.2.I	ams (CMOSIS) CMV4000 V3	1″ CMOS	Mono	21 … 30 fps	2040 × 2044 px	na dotaz
VLG-40M.I	ams (CMOSIS) CMV4000	1″ CMOS	Mono	21 … 30 fps	2040 × 2044 px	na dotaz
