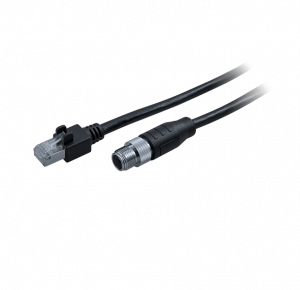

Cable GigE M12X/RJ45, STP 15.0m, flex

Gigabit Ethernet interface cable
CAT6A
M12/8-pin connector, X-coded (screw lock) to RJ45
cable carrier compatible
length 15,0 m

Objednací číslo: 11195762
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Diagramy

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické parametry

Počet pinů konektoru:	8
Konektory:	M12/x-coded, screw lock RJ45

Mechanické parametry

nejmenší poloměr ohybu:	35.4 mm
Počet ohybových cyklů:	1000000
použitelné pro pohyblivé vedení:	yes, flexible cable
Délka kabelu [m]:	15 m
Hmotnost:	≤ 1050 g
Materiál:	TPU, halogen-free

Rozhraní

Datové rozhraní:

10 GigE
GigE

Podmínky prostředí

Ohnivzdornost:	UL AWM 20622
Třída krytí:	IP 40
