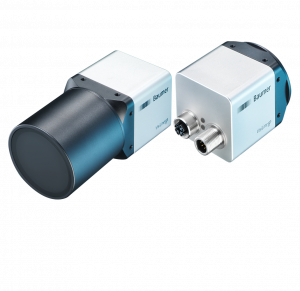

VLG-40C.2.I

VLG-40C.2.I
  • 2040 × 2044 px
  • ams (CMOSIS) CMV4000 V3
  • 1″ CMOS
  • 29 fps
  • Gigabit Ethernet
Objednací číslo: 11115309
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer
Ing. Jakub Sedlmajer
Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS
Ing. Jakub Sedlmajer - QR Kontakt
+420 739 087 013
jakub.sedlmajer@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Informace o snímači

Snímač: ams (CMOSIS) CMV4000 V3
Mono/Color: Color
Typ snímače: 1″ CMOS
Typ závěrky: Global shutter
Rozlišení: 2040 × 2044 px
Rozměry pixelu: 5.5 × 5.5 µm
Expoziční čas: 0.02 - 1000 ms

Kvalita dat (EMVA 1288)

Temný šum: 11.5 e-
Saturační kapacita: 9899 e-
Dynamický rozsah: 58.3 dB
Poměr signál/šum: 40 dB
Kvantová účinnost:
  • 39.3 % @ 465 nm
  • 41.3 % @ 536 nm
  • 39.2 % @ 631 nm

Formáty obrazu

Formáty obrazu, max. frekvence snímků na komunikačním rozhraní: Full Frame, 2040 × 2044 px, max. 29 fps
Formát pixelu:
  • Mono8
  • BayerRG8
  • BayerRG12
  • RGB8 Packed
  • BGR8 Packed
  • YUV411 Packed
  • YUV422 Packed
  • YUV444 Packed

Předzpracování obrazu

Analogové ovládací prvky:
  • Gain (0 - 8 dB)
  • Offset (0 - 255 LSB 12 Bit)
Barevné modely:
  • RGB
  • YUV
  • Mono
Zpracování barev: Integrated color processor for high quality color calculation

Funkce kamery

Synchronizace:
  • free running
  • trigger
Zdroje spouštěcího signálu (trigger):
  • Hardware
  • Software
  • ActionCommand
Zpoždění spouštěcího signálu (trigger): 0 - 2 sec, tracking and buffering of up to 512 trigger signals
Sequencer: Automated control for series of images using different sets of parameters
Parametry sequenceru:
  • Exposure time
  • gain factor
  • Output
  • ROI Offset x
  • ROI Offset y
Digitální vstupy: 1 input line
Digitální výstupy: 3 output lines
Interní vyrovnávací paměť: 120 MB

Rozhraní a připojení

Datové rozhraní: Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer Rate 100 Mbits/sec, Connector: SACC-CI-M12FS-8CON-L180-10G
Komunikační rozhraní / napájení: SACC-CI-M12MS-8CON-SH TOR 32 / 8 pins

Mechanické parametry

Závit objektivu: C-mount
Šířka: 46 mm
Výška: 46 mm
Hloubka: 49.8 mm
Hmotnost:
  • ≤ 185 g
  • ≤ 220 g (incl. tube)
Materiál: aluminum, IP 65 / 67

Elektrické parametry

Rozsah napájecího napětí +Vs:
  • 12 - 24 V DC (external power supply)
  • 36 - 57 V DC (Power over Ethernet)
Spotřeba energie:
  • Approx. 3.6 W @ 12 VDC and 29.0 fps
  • Approx. 3.7 W @ 48 VDC (PoE) and 23.5 fps

Nevolatilní paměť

Velikost flash paměti: 128 kB

Podmínky prostředí

Pracovní teplota: +5 - +50 °C
Vlhkost: 10 - 90 % (non-condensing)
Třída krytí:
  • IP 40
  • IP 54 (with mounted tube and cable)
  • IP 65 (with mounted tube and cable)
  • IP 67 (with mounted tube and cable)
  • IP 69K (with stainless steel housing accessory)

Digitální vstupy|výstupy

Linky:
  • 1 input line
  • 3 output lines

Prohlášení o shodě

Prohlášení o shodě:
  • CE
  • RoHS
