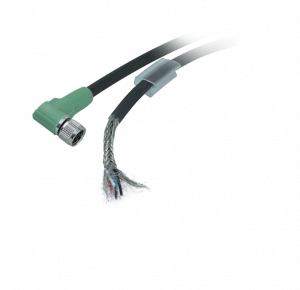

Z-ESW 31DH0500G

shielded process interface and power cable for Baumer VisiLine^® cameras
90° angled M8/6-pin female connector to open wires
cable carrier compatible
length 5,0 m

Objednací číslo: 11105041
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Diagramy

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické parametry

Stínění:	yes
Počet pinů konektoru:	6
Konektory:	M8 female connector, angled, screw lock

Mechanické parametry

nejmenší poloměr ohybu:	52 mm
instalace s nejmenším poloměrem ohybu:	52 mm
Počet ohybových cyklů:	4000000
použitelné pro pohyblivé vedení:	yes
Délka kabelu [m]:	5 m
Hmotnost:	≤ 194 g
Materiál:	PUR, halogen-free

Rozhraní

Datové rozhraní:

Process interface

Podmínky prostředí

Odolnost vůči olejům:	DIN EN 60811-2-1
Třída krytí:	IP 65/67 (camera side)
