ajptech.cz > Produkty > Průmyslové kamery > Čtečky kódů a textu > Stacionární čtečky kódů a textu Baumer > VS ID110M03I10RP

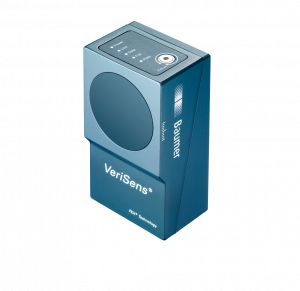

VS ID110M03I10RP

Správa uživatelů
Ochrana heslem
Funkce zálohování a obnovení
Download VeriSens^® Application Suite: www.baumer.com/vs-sw

Objednací číslo: 11138199
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Rozlišení:	752 × 480 px
Typ snímače:	1/3″ CMOS, monochrome
Osvětlení:	integrated, LED infrared (860 nm)
Třída LED:	free group (risk free, EN 62471:2008)
Režim plného rozlišení:	max. 50 inspections per second
Min. vzdálenost objektu:	50 mm
Počet programů:	≤ 255
Maximální počet kontrol v rámci programu:	32
Signálový procesor:	Baumer FEX^® 3.5
Počet uložených NOK snímků:	32
Objektiv:	10 mm

Elektrické parametry

Rozsah napájecího napětí +Vs:	18 - 30 V DC
Spotřeba energie:	Typical 5 W (I_max = 1 A at 24 V)
Digitální vstupy:	5 inputs (8 - 30 V) trigger job selection external teach-in encoders (CH-A, CH-B) 500 kHz
Digitální výstupy:	3 outputs (PNP) Pass / Fail Flash Sync Alarm Camera Ready Output Enable
Výchozí nastavení:	Ethernet (10BASE-T / 100BASE-TX)
Rozhraní:	TCP/UDP (Ethernet) RS485
Vizualizace:	web interface

Mechanické parametry

Šířka:	53 mm
Výška:	99.5 mm
Hloubka:	38 mm
Hmotnost:	≤ 250 g
Materiál:	housing: aluminum cover glass: PMMA, integrated daylight filter (780 nm)

Podmínky prostředí

Pracovní teplota:	+5 - +50 °C
Skladovací teplota:	-20 - +70 °C
Teplota zařízení:	max. +50 °C
Vlhkost:	0 - 90 % (non-condensing)
Třída krytí:	IP 67
Odolnost vibracím:	IEC 60068-2-6 IEC 60068-2-64
Odolnost mechanickým rázům:	EN 60068-2-27

Typy kódů

Čárový kód:	2/5 Industrial 2/5 Interleaved Codabar Code 39 Code 93 Code 128 PharmaCode EAN 8 EAN 13 UPC-A UPC-E GS1 DataBar GS1 128
Maticové kódy:	DataMatrix (ECC 200) GS1-DataMatrix QR-Code PDF417
Písmo:	Sans serif fonts (or similar to: OCR-A,OCR-B, Arial, Tahoma, Courier, Univers, Frutiger, Verdana, Bookman, Franklin Gothic Book, Garamond, Nimbus San T, Palatino, Linotype, Sylfaen, Times New Roman, DIN 1451 Mittelschrift, DIN Neuzeit Grotesk LT Light, ITC Officina Sans, LT Book, Farrington 7B etc.) Dot Print Characters: A-Z a-z 0-9 + - . : / ( )

Druhy kontrolních funkcí

Vyhledání dílu:	Part location on text line
Porovnání dle charakteristických vlastností:	contour comparison
Identifikace:	Barcode Matrix code Text

Prohlášení o shodě

Prohlášení o shodě:

CE
RoHS

Nevolatilní paměť

Velikost flash paměti:

256 Mbit Flash S29GL256P10FFI010
