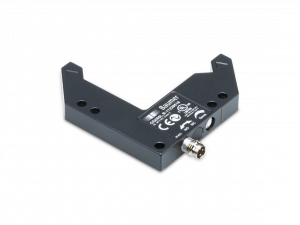

OG050L.R-GW1O.7WL - Angle sensors

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

through beam sensor
60 mm
pulsed red LED
Push-Pull
potentiometer / IO-Link
connector M8, 3 pin
-25 … 60 °C
IP 67

Objednací číslo: 11229518
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Through beam sensor
Velikost objektu:	> 0.5 mm
Opakovatelnost:	0.06 mm
Doba odezvy:	< 0.1 ms 0
Hystereze:	< 0.25 mm
Nastavení citlivosti:	Potentiometer, 270° IO-Link
Zdroj světla:	Pulsed red LED
Vlnová délka:	660 nm
Světelný indikátor:	LED yellow

Komunikační rozhraní

IO-Link:	Yes
Rozhraní:	IO-Link V1.1

Elektrické parametry

Spínací frekvence:	5000 Hz , default 1500 Hz 250 Hz 8000 Hz
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	30 mA
Výstupní funkce:	Light / dark operate switchable
Výstupní obvod:	Push-pull / IO-Link
Pokles napětí Vd:	<2.8 VDC
Výstupní proud:	200 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	75 mm
Snímací rozsah:	60 mm
Výška \| Délka:	75 mm
Hloubka vidlice:	50 mm
Hloubka:	10 mm
Konstrukce:	L profile
Materiál pouzdra:	Die-cast zinc
Způsoby připojení:	Connector M8, 3 pin

Okolní podmínky

Pracovní teplota:	-25 - +60 °C
Třída krytí:	IP 67

Nákresy

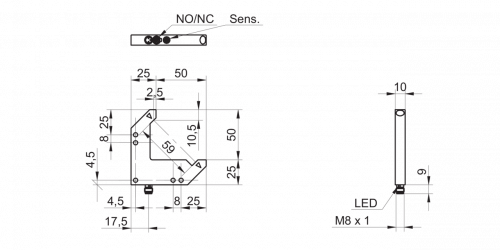

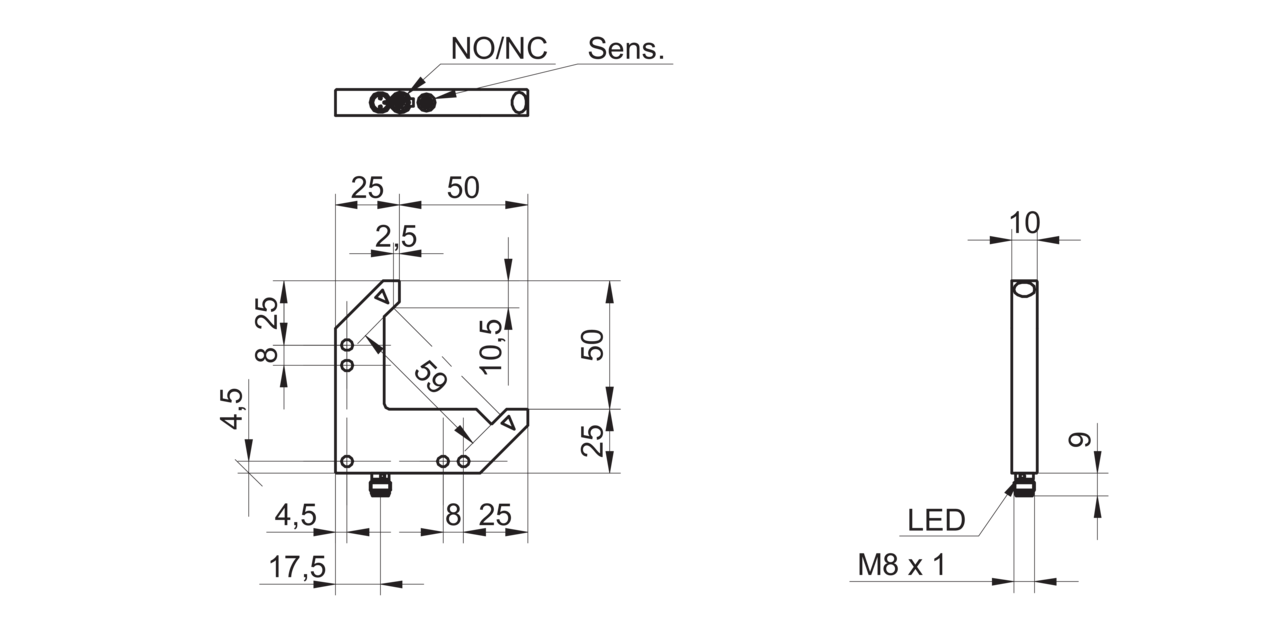

Výkresy

4686-OG050L.x-xxxx.7xL.png | stáhnout (png, 2025-07-12 04:07:56)

Diagram připojení

Zchn-6100-IOPP.png | stáhnout (png, 2025-07-12 01:28:07)

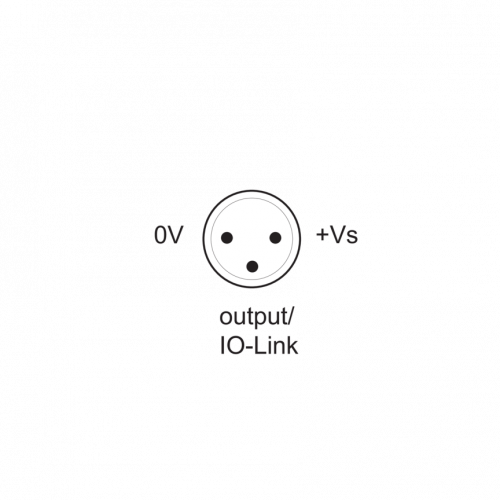

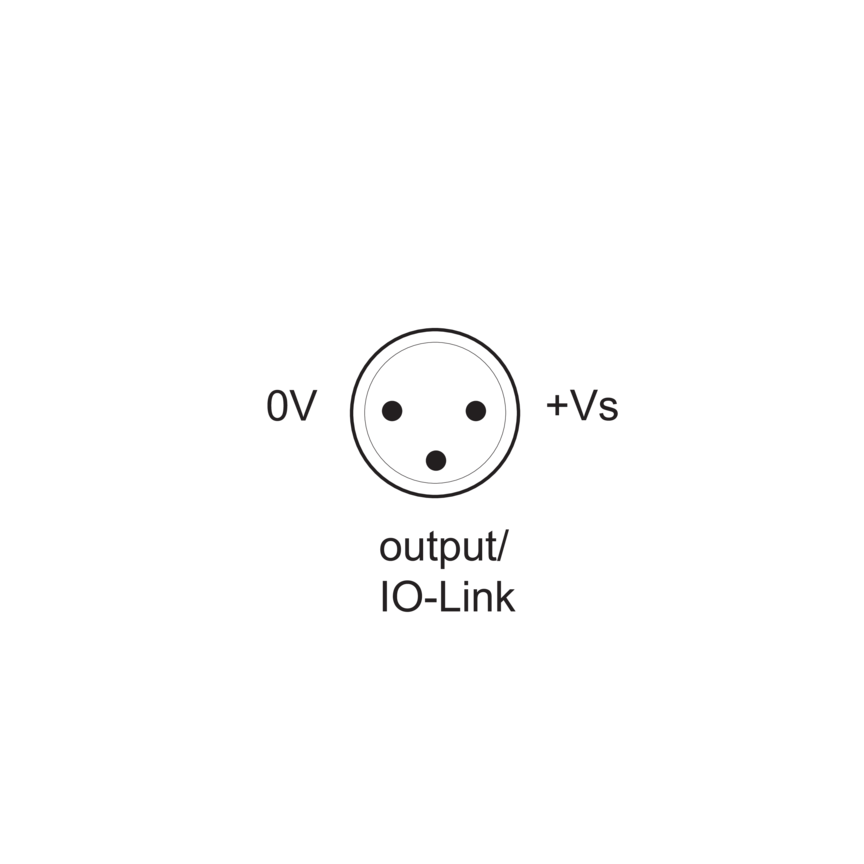

Přiřazení pinů

Zchn-3691-5.png | stáhnout (png, 2025-07-12 01:28:17)

Ke stažení

Datový list

Data sheet – OG050L.R-GW1O.7WL | stáhnout | zobrazit (ZH, pdf, 2025-04-11 11:37:36)
Data sheet – OG050L.R-GW1O.7WL | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:37:36)
Data sheet – OG050L.R-GW1O.7WL | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:37:36)

Rychlý start

Quickstart – OG050L | stáhnout | zobrazit (EN/DE/FR/IT/ES/ZH, pdf, 2025-04-11 11:37:36)

Certifikáty/ osvědčení

DoC / CoC - OGxx / OLxx | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:37:39)

CAD

OG050L.R-GW1O.7WL / IGES | stáhnout (zip, 2025-04-28 18:41:52)
OG050L.R-GW1O.7WL / STEP | stáhnout (zip, 2025-07-11 17:00:48)
OG050L.R-GW1O.7WL / PARASOLIDS | stáhnout (zip, 2025-04-28 18:41:51)
ePlan macro - 11229518 | stáhnout (edz, 2023-09-20 09:54:44)

Software

Software – IODD V1.1 OG0xxL.R | stáhnout (zip, 2025-07-11 16:41:53)
Baumer Sensor Suite | stáhnout (zip, 2025-07-11 20:46:39)
