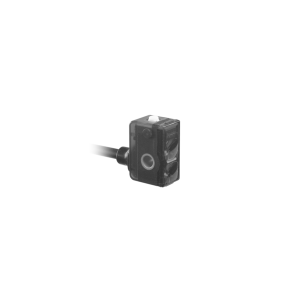

FHCK 07N6901 - Diffuse sensors with background suppression - subminiature

FHCK 07N6901 - Diffuse sensors with background suppression - subminiature
  • background suppression
  • 10 … 60 mm
  • pulsed red LED
  • NPN
  • Teach-in
  • cable rear side, 2 m
  • -20 … 50 °C
  • IP 65
Objednací číslo: 10152083
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry

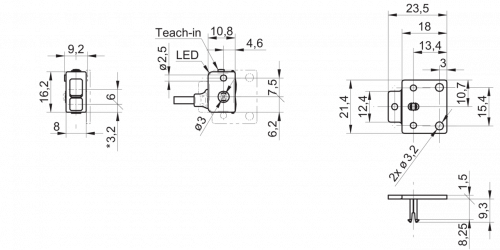

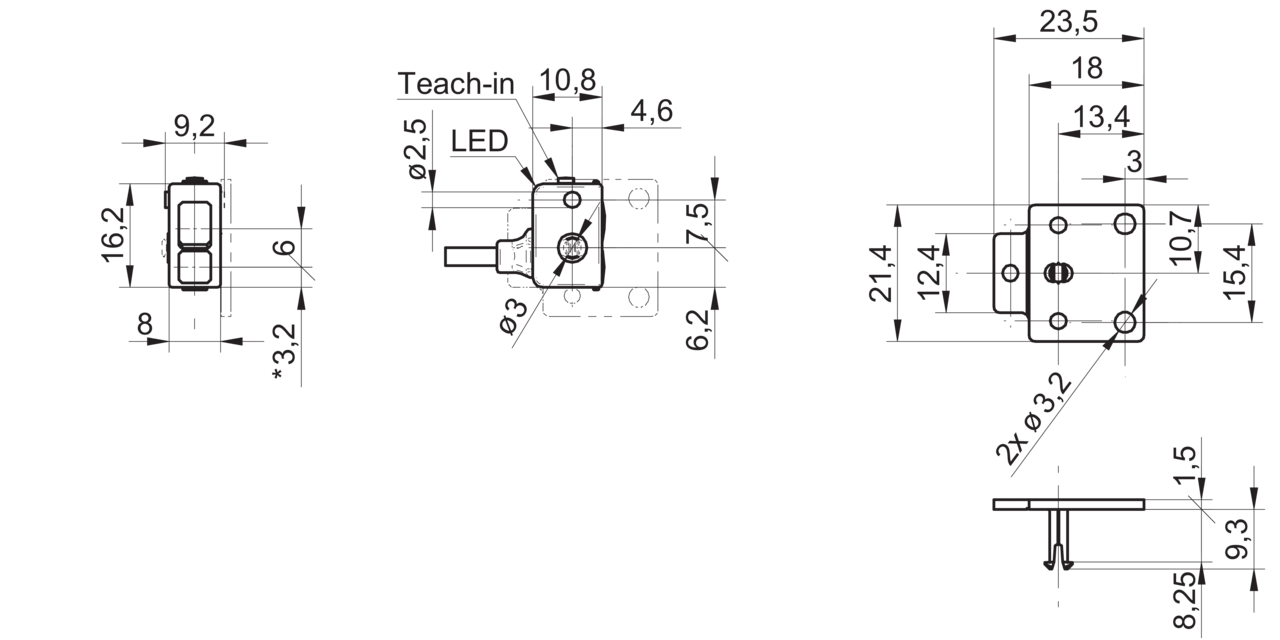

Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Background suppression
Snímací vzdálenost: 10 - 60 mm
Snímací rozsah Tb (při Tw max.): 2 - 60 mm
Snímací rozsah Tb (při Tw min.): 5 - 10 mm
Indikace znečištění: Flashing light indicator
Světelný indikátor: LED green
Výstupní indikátor: LED yellow
Natavení vzdálenosti snímáni: Teach-in
Potlačení vzájemného ovlivňování: Yes

Zdroj světla

Zdroj světla: Pulsed red LED
Vlnová délka: 660 nm

Elektrické parametry

Doba odezvy: < 0.5 ms
Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 25 mA
Běžná spotřeba proudu: 20 mA
Pokles napětí Vd: <1.8 VDC
Výstupní funkce: Light / dark operate

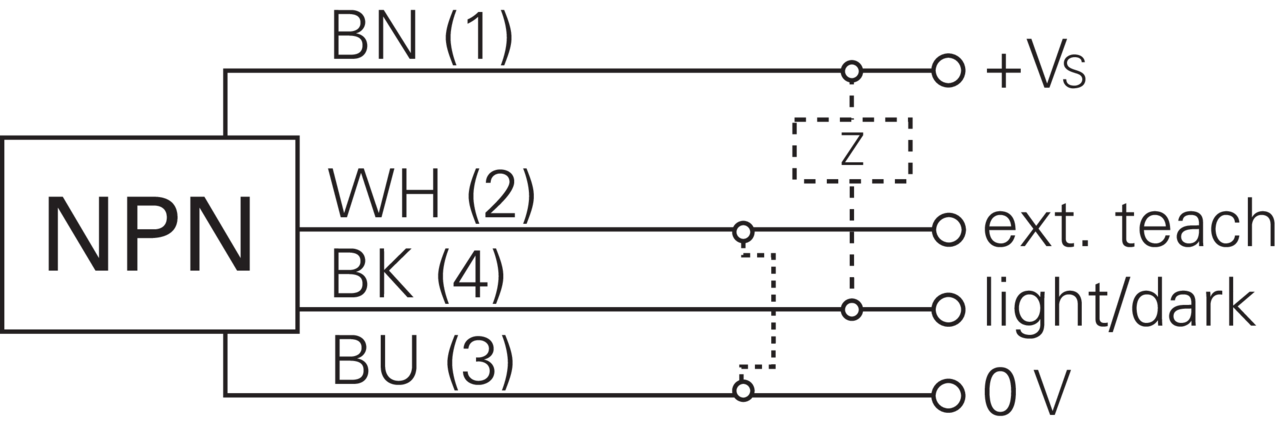

Výstupní obvod: NPN
Výstupní proud: 100 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 8 mm
Výška | Délka: 16.2 mm
Hloubka: 10.8 mm
Konstrukce: Rectangular
Materiál pouzdra: Plastic (PMMA, MABS, PA)
Materiál krycího skla: PMMA
Způsoby připojení: Cable rear side, 2 m

Okolní podmínky

Třída krytí: IP 65
Pracovní teplota: -20 - +50 °C
