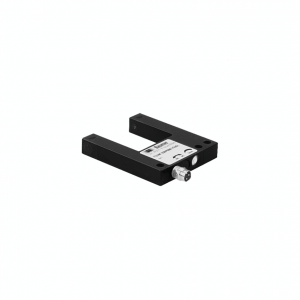

FGUM 030P6901/S35A - Fork sensors

FGUM 030P6901/S35A - Fork sensors
  • through beam sensor
  • 30 mm
  • pulsed red LED
  • PNP
  • Teach-in: button / remote
  • connector M8
  • -10 … 60 °C
  • IP 67
Objednací číslo: 10162163
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Through beam sensor
Velikost objektu: > 0.3 mm
Opakovatelnost: 0.03 mm
Doba odezvy: < 0.166 ms
Hystereze: < 0.1 mm
Odolnost vůči okolnímu osvětlení: < 20 kLux
Nastavení citlivosti:
  • Teach-in button
  • Ext. Teach-in
Zdroj světla: Pulsed red LED
Vlnová délka: 660 nm
Světelný indikátor: LED yellow

Elektrické parametry

Spínací frekvence: 3 kHz
Rozsah napájecího napětí +Vs: 10 - 35 VDC
Maximální spotřeba proudu (bez zátěže): 30 mA
Výstupní funkce: Light / dark operate switchable
Výstupní obvod: PNP
Pokles napětí Vd: <2 VDC
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

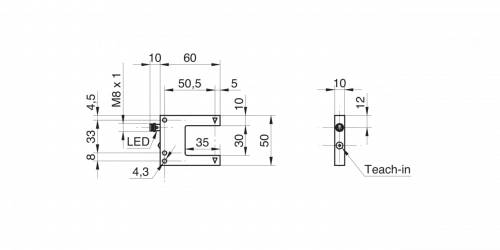

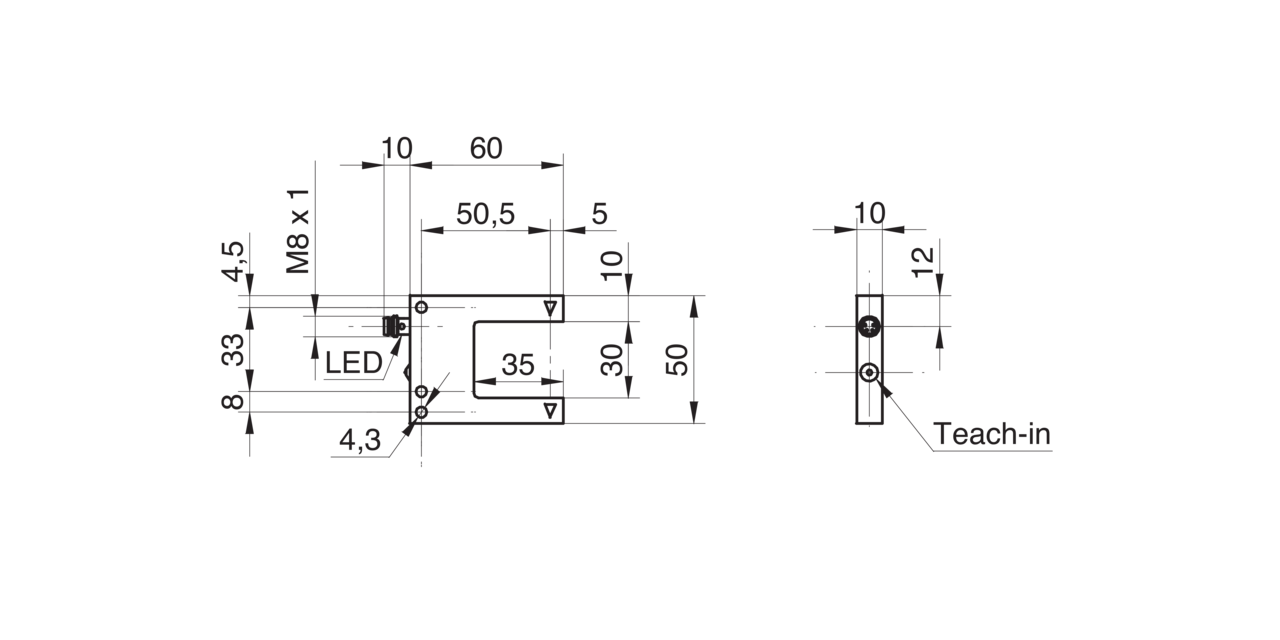

Mechanické parametry

Šířka | průměr: 50 mm
Snímací rozsah: 30 mm
Výška | Délka: 60 mm
Hloubka vidlice: 35 mm
Hloubka: 10 mm
Konstrukce: U profile
Materiál pouzdra: Die-cast zinc
Způsoby připojení: Connector M8

Okolní podmínky

Pracovní teplota: -10 - +60 °C
Třída krytí: IP 67
