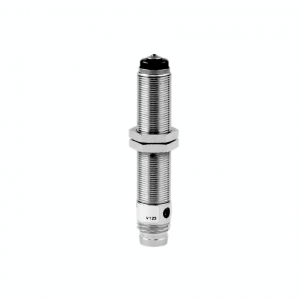

MY-COM H75/S35 - My-Com precision switches

MY-COM H75/S35 - My-Com precision switches
  • break function (NC) mechanical
  • connector M8
  • -20 … 75 °C
  • IP 67
Objednací číslo: 10238645
Výrobce: Baumer Electric AG
Dostupnost: 1 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.
Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.
+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Skladová dostupnost
Podobné produkty

Parametry

Základní parametry

Opakovatelnost: 0.001 mm
Aktivační síla: 75 cN
Mech. pre-run / overrun: - / 0,6 mm approx.
Typ měření: Contact with medium
Směr působení síly: Frontal

Elektrické parametry

Napětí stejnosměrné (max.): 15 VDC
proud max.: 2 mA
Maximální hodnota střídavého napětí: 24 VAC
Max. přepínací proud AC: 50 mA
Výstupní obvod: Break function (NC) mechanical

Mechanické parametry

Kontaktní element: Ruby
Materiál pouzdra: Brass nickel plated
Rozměry: 8 mm
Konstrukce: Cylindrical threaded
Délka pouzdra: 40 mm
Způsoby připojení: Connector M8

Okolní podmínky

Pracovní teplota: -20 - +75 °C
Třída krytí: IP 67
