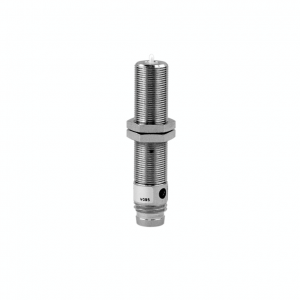

MY-COM F50/S35 - My-Com precision switches

MY-COM F50/S35 - My-Com precision switches
  • break function (NC) mechanical
  • connector M8
  • -20 … 75 °C
  • IP 50
Objednací číslo: 10240898
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Opakovatelnost: 0.001 mm
Aktivační síla: 50 cN
Mech. pre-run / overrun: - / 1,5 mm approx.
Typ měření: Contact with medium
Směr působení síly: Frontal

Elektrické parametry

Napětí stejnosměrné (max.): 15 VDC
proud max.: 2 mA
Maximální hodnota střídavého napětí: 24 VAC
Max. přepínací proud AC: 50 mA
Výstupní obvod: Break function (NC) mechanical

Mechanické parametry

Kontaktní element: Zirconium oxide ZrO2
Materiál pouzdra: Brass nickel plated
Rozměry: 8 mm
Konstrukce: Cylindrical threaded
Délka pouzdra: 38 mm
Způsoby připojení: Connector M8

Okolní podmínky

Pracovní teplota: -20 - +75 °C
Třída krytí: IP 50
