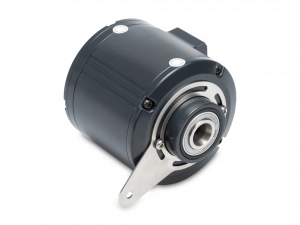

HMG10-B - SSI - Absolutní enkodér Baumer
- Magnetické snímání
- Zobrazení funkcí pomocí LED diod
- Víceotáčkové snímání s technologií sběru energie "MicroGen", bez převodu nebo baterie
- Oboustranný ložiskový systém s hybridními ložisky
- Speciální ochrana proti korozi CX (C5-M)
Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.
Poradím vám
Parametry
Elektrické vlastnosti
| Napájecí napětí: | 4.75...30 VDC |
| Odolnost proti zkratu: | Yes |
| Spotřeba: | ≤100 mA (SSI) |
| Čas inicializace: | ≤ 500 ms after power on |
| Rozhraní: | SSI |
| Funkce: | Multiturn |
| Kroků na otáčku: | 1048576 / 20 bit |
| Počet otáček: | 1048576 / 20 bit |
| Další výstupy: | Square-wave TTL/HTL,TTL/RS422 |
| Typ snímání: | Magnetic |
| Typ kódu: | Gray or binary |
| Průběh kódu: | CW (factory setting) |
| Vstupní signály: | SSI clock, PRESET, rotating direction |
| Odolnost proti rušení dle: | EN 61000-6-2 |
| Vyzařované rušení dle: | EN 61000-6-3 |
| Testovací funkce: | Function control |
| Indikátor stavu: | 4 LEDs in device back side |
| Schválení: |
|
Technické údaje - elektrické jmenovité hodnoty (přepínač rychlosti)
| Spínací přesnost: | ± 2 % (or 1 Digit) |
| Spínací výstup: | 1 output (Open collector, solid state relay on request) |
| Výstupní spínací napětí: | 30 VDC; ≤100 mA |
| Čas zpoždění spínání: | ≤20 ms |
Mechanické provedení
| Rozměr (příruby): | ø105 mm |
| Typ hřídele: |
|
| Příruba: | Support plate, 360° freely positionable |
| Ochrana EN 60529: | IP 66 / IP 67 |
| Provozní rychlost: | ≤12000 rpm |
| Rozsah spínací rychlosti: | ns (off) = ±2...12000 rpm |
| Velikost provozního točivého momentu.: | 10 Ncm |
| Moment setrvačnosti rotoru: | 950 gcm² |
| Přípustné zatížení hřídele: |
|
| Materiál: |
|
| Ochrana proti korozi: |
|
| Pracovní teplota: | -40...+95 °C |
| Relativní vlhkost: | 95 % non-condensing |
| Odolnost: |
|
| Přibližná hmotnost: | 1.6 kg (depending on version) |
| Připojení: |
|
Nákresy
Výkresy
- HMG10-B_MZ_Einseitig_offene_Hohlwelle_2xKLK_SSI.png | stáhnout (png, 2025-07-11 18:03:02)
- HMG10-B_MZ_Einseitig_offene_Hohlwelle_2xM23_SSI.png | stáhnout (png, 2025-07-11 17:56:36)
- HMG10-B_MZ_Konuswelle_2xKLK_SSI.png | stáhnout (png, 2025-07-11 17:56:34)
- HMG10-B_MZ_Konuswelle_2xM23_SSI.png | stáhnout (png, 2025-07-11 17:56:34)
Ke stažení
Datový list
Manuál
Brožury / Katalogy
Prohlášení o shodě
CAD
- HMG10 SSI, blind hollow shaft ø16 mm, 2x terminal box with cable gland M20 (HMG10x-BHx.6Mxx.xxxxxx) | stáhnout (zip, 2025-07-11 21:01:37)
Příslušenství
Montážní příslušenství
Další podobné produkty naleznete v kategorii: Pro enkodéry s dutou hřídelí / Torque supports, Pro enkodéry s dutou hřídelí / Další příslušenství
| Foto | Produkt (7) | Dostupnost |
|---|---|---|
 | Mounting and dismounting set Obj. číslo: 11077087 | Okamžitě dostupné |
 | Mounting kit for torque arm size M6 and earthing strap Obj. číslo: 11077197 | Na dotaz |
 | Torque arm M6 insulated, length 120...130 mm (≥71 mm) Obj. číslo: 11072795 | Na dotaz |
 | Torque arm M6 insulated, length 425...460 mm (≥131 mm) Obj. číslo: 11082677 | Na dotaz |
 | Torque arm M6 insulated, length 67...70 mm Obj. číslo: 11054917 | Na dotaz |
 | Torque arm M6, length 67...70 mm Obj. číslo: 11043628 | Na dotaz |
 | Torque arm M6, length 120...130 mm (≥71 mm) Obj. číslo: 11004078 | Na dotaz |
Konektory a kabely
Další podobné produkty naleznete v kategorii: Konektory M23 / kabely, Kabely a konektory / Kabely bez konektorů
| Foto | Produkt (9) / Popis | Skladová dostupnost |
|---|---|---|
 | Mating connector M23 (11 pins assigned) 17-pin, CCW with sensor cable HEK 17, length 1 m Obj. číslo: 11172482 Mating connector M23 (17-pin, 11 pins assigned, female, CCW) for cable connection to the flange connector M23 (17-pin, male, CW) with connected sensor cable HEK 17, lenght 1 m. The sensor cable HEK 17 is a proven industrial product designed to match high demands. It is halogen free, oil-resistant, abrasion and notch-resistant and its rugged outer construction allows it to be pulled and dragged in free conditions. It is certified to UL AWM Style 20236, CSA AWM IA/B; IIA/B FT 1, UL File No. E63634. | na dotaz |
 | Mating connector M23 (11 pins assigned) 17-pin, CCW with sensor cable HEK 17, length 10 m Obj. číslo: 11172580 Mating connector M23 (17-pin, 11 pins assigned, female, CCW) for cable connection to the flange connector M23 (17-pin, male, CW) with connected sensor cable HEK 17, length 10 m. The sensor cable HEK 17 is a proven industrial product designed to match high demands. It is halogen free, oil-resistant, abrasion and notch-resistant and its rugged outer construction allows it to be pulled and dragged in free conditions. It is certified to UL AWM Style 20236, CSA AWM IA/B; IIA/B FT 1, UL File No. E63634. | na dotaz |
 | Mating connector M23 (11 pins assigned) 17-pin, CCW with sensor cable HEK 17, length 3 m Obj. číslo: 11172481 Mating connector M23 (17-pin, 11 pins assigned, female, CCW) for cable connection to the flange connector M23 (17-pin, male, CW) with connected sensor cable HEK 17, length 3 m. The sensor cable HEK 17 is a proven industrial product designed to match high demands. It is halogen free, oil-resistant, abrasion and notch-resistant and its rugged outer construction allows it to be pulled and dragged in free conditions. It is certified to UL AWM Style 20236, CSA AWM IA/B; IIA/B FT 1, UL File No. E63634. | na dotaz |
 | Mating connector M23 (11 pins assigned) 17-pin, CCW with sensor cable HEK 17, length 5 m Obj. číslo: 11172499 Mating connector M23 (17-pin, 11 pins assigned, female, CCW) for cable connection to the flange connector M23 (17-pin, male, CW) with connected sensor cable HEK 17, length 5 m. The sensor cable HEK 17 is a proven industrial product designed to match high demands. It is halogen free, oil-resistant, abrasion and notch-resistant and its rugged outer construction allows it to be pulled and dragged in free conditions. It is certified to UL AWM Style 20236, CSA AWM IA/B; IIA/B FT 1, UL File No. E63634. | na dotaz |
 | Mating connector M23 (17 pins assig.) 17-pin, CCW, cable HEK 17, 3 m Obj. číslo: 11172463 Mating connector M23 (17-pin, 17 pins assigned, female, CCW) for cable connection to the flange connector M23 (17-pin, male, CW) with connected sensor cable HEK 17, length 3 m. The sensor cable HEK 17 is a proven industrial product designed to match high demands. It is halogen free, oil-resistant, abrasion and notch-resistant and its rugged outer construction allows it to be pulled and dragged in free conditions. It is certified to UL AWM Style 20236, CSA AWM IA/B; IIA/B FT 1, UL File No. E63634. | na dotaz |
 | Mating connector M23, solder version, 12-pin, CCW Obj. číslo: 11068577 Mating connector M23 in solder version (12-pin, female, CCW) for cable connection to the flange connector M23 (12-pin, male, CW). | na dotaz |
 | Mating connector M23, solder version, 17-pin, CCW Obj. číslo: 11068551 Mating connector M23 in solder version (17-pin, female , CCW) for cable connection to the flange connector M23 (17-pin, male , CW). | na dotaz |
 | Sensor cable for encoders HEK 17 Obj. číslo: SensorcableforencodersHEK17 The sensor cable HEK 17 is a proven industrial product designed to match high demands. It is halogen free, oil-resistant, abrasion and notch-resistant and its rugged outer construction allows it to be pulled and dragged in free conditions. It is certified to UL AWM Style 20236, CSA AWM IA/B; IIA/B FT 1, UL File No. E63634. The cable can be supplied in any length and pre-fitted with various connectors. | na dotaz |
 | Sensor cable for encoders HEK 8 Obj. číslo: SensorcableforencodersHEK8 The sensor cable HEK 8 is a proven industrial product designed to match high demands. It is halogen free and its rugged outer construction allows it to be pulled and dragged in free conditions. It is certified to UL 20233. The cable can be supplied in any length and pre-fitted with various connectors. | na dotaz |
