ajptech.cz > Produkty > Průmyslové kamery > Průmyslové kamery > Dlouhodobě dostupné kamery > HXC40c

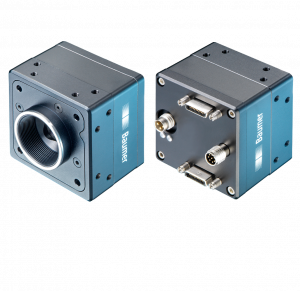

HXC40c

2048 × 2048 px
ams (CMOSIS) CMV4000
1″ CMOS
180 fps
Camera Link® Full

Objednací číslo: 11047451
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Informace o snímači

Snímač:	ams (CMOSIS) CMV4000
Mono/Color:	Color
Barevný filtr:	RGB Bayer Mosaic
Typ snímače:	1″ CMOS
Typ závěrky:	Global shutter
Rozlišení:	2048 × 2048 px
Rozměry pixelu:	5.5 × 5.5 µm
Expoziční čas:	0.02 - 1000 ms

Formáty obrazu

Formáty obrazu, max. frekvence snímků na komunikačním rozhraní:	Full Frame, 2048 × 2048 px, max. 180 fps
Formát pixelu:	BayerGB8 BayerGB10 BayerGB12

Předzpracování obrazu

Analogové ovládací prvky:	Gain (0 - 12 dB) Offset (0 - 255 LSB)
Barevné modely:	Raw Bayer

Funkce kamery

Synchronizace:	free running trigger
Zdroje spouštěcího signálu (trigger):	Hardware Software FrameGrabber
Zpoždění spouštěcího signálu (trigger):	0 - 2 sec, tracking and buffering of up to 512 trigger signals
Sequencer:	Automated control for series of images using different sets of parameters
Parametry sequenceru:	Exposure time gain factor Output
Digitální vstupy:	3 input line (each with Debouncer)
Digitální výstupy:	3 output lines
Interní vyrovnávací paměť:	256 MB

Rozhraní a připojení

Datové rozhraní:	Camera Link Full, connector: 2 x Standard SDR26 (Mini CL)
Rozhraní:	M8 / 8 pins
Napájení:	via M8 / 3 pins

Mechanické parametry

Závit objektivu:	C-mount (F-mount on request)
Šířka:	52 mm
Výška:	52 mm
Hloubka:	37 mm
Hmotnost:	≤ 185 g
Materiál:	housing: aluminum

Elektrické parametry

Rozsah napájecího napětí +Vs:	9.6 - 30 V DC
Spotřeba energie:	Approx. 5.5 W

Podmínky prostředí

Pracovní teplota:	+5 - +60 °C
Vlhkost:	10 - 90 % (non-condensing)
Třída krytí:	IP 40

Prohlášení o shodě

Prohlášení o shodě:

CE
RoHS
FCC
KC (MISP-REI-BkR-HXC40)
EAC

Foto	Produkt (1) / Popis	Skladová dostupnost
	Power Supply 24V/1,0A international universal power supply 24V/1,0A international with adapters for EU, US, UK, AU, KR	na dotaz

Foto	Produkt (5) / Popis	Skladová dostupnost
	Close-up ring set ZVS-FP-RGST six-piece Close-up ring set ZVS-FP-RGST six-piece 0,5, 1, 5, 10, 20, 40 mm	1 ks
	Filter CL/27 (R2) ROT PENTAX Ricoh color filter (red)	na dotaz
	Filter Pol PENTAX PL27 Ricoh polarization filter linear filter thread	na dotaz
	ZVI-FILTER POL. PL30.5 C91353 Ricoh polarization filter linear filter thread M30.5	na dotaz
	ZVI-Filter Pol. PL40.5 C91301 Ricoh polarization filter linear filter thread M40.5	1 ks

Foto	Produkt (35) / Popis	Skladová dostupnost
	Obj Kowa LM12HC 12mm/f1,4 Kowa lens 12,5 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM12HC-SW 12,5mm/f1,4 Kowa lens 12,5 mm F 1,4-16 format 1" locating screw for aperture and focus via RS485 interface M.O.D. 0,9 m C-mount	na dotaz
	Obj Kowa LM12XC 12mm/f2,0 Kowa lens 12 mm F 2,0-22 format 4/3" M.O.D. 0,1 m C-mount	na dotaz
	Obj Kowa LM16HC 16mm/f1,4 Kowa lens 16 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM16XC 16mm/f2,0 Kowa lens 16 mm F 2,0-22 format 4/3" M.O.D. 0,1 m C-mount	na dotaz
	Obj Kowa LM25HC 25mm/f1,4 Kowa lens 25 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	1 ks
	Obj Kowa LM25HC-SW 25mm/f1,4 Kowa lens 25 mm F 1,4-16 format 1" M.O.D. 0,3 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM25XC 25mm/f2,0 Kowa lens 25 mm F 2,0-16 format 4/3" M.O.D. 0,15 m C-mount	na dotaz
	Obj Kowa LM35HC 35mm/f1,4 Kowa lens 35 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM35HC-SW 35mm/f1,4 Kowa lens 35 mm F 1,4-16 format 1" M.O.D. 0,4 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM35XC 35mm/f2,0 Kowa lens 35 mm F 2,0-22 format 4/3" M.O.D. 0,2 m C-mount	na dotaz
	Obj Kowa LM50HC 50mm/f1,4 Kowa lens 50 mm F 1,4-16 format 1" M.O.D. 0,5 m C-mount	na dotaz
	Obj Kowa LM50HC-SW 50mm/f1,4 Kowa lens 50mm F1,4-16 format 1" M.O.D. 0,6 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM8HC 8mm/f1,4 Kowa lens 8 mm F 1,4-16 format 1" M.O.D. 0,1 m C-mount	na dotaz
	Obj LINOS MeVis C 25mm/f1,6 Linos lens 25 mm F 1,6-16 format 1" M.O.D. 0,26 m C-mount	na dotaz
	Obj TOURMALINE 2,8/50 C Schneider Kreuznach lens 50 mm F 2,8-16 format 1.3" M.O.D. 0,135 m C-mount	na dotaz
	Obj TURQUOISE 1,9/10 C Schneider Kreuznach lens 10 mm F 1,9-16 format 1" M.O.D. 0,092 m C-mount	na dotaz
	ZVL-Dimension_2.8/8_C Carl Zeiss lens 8 mm F 2,8-22 format 4/3\'\' M.O.D. 0,102 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/12_C Carl Zeiss lens 12 mm F 2,0-22 format 4/3\'\' M.O.D. 0,101 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/18_C Carl Zeiss lens 18 mm F 2,0-22 format 4/3\'\' M.O.D. 0,090 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/25_C Carl Zeiss lens 25 mm F 2,0-22 format 4/3\'\' M.O.D. 0,152 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/35_C Carl Zeiss lens 35 mm F 2,0-22 format 4/3\'\' M.O.D. 0,209 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-Dimension_2/50_C Carl Zeiss lens 50 mm F 2,0-22 format 4/3\'\' M.O.D. 0,311 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC1220-9M Ricoh Imaging lens 12 mm F 2.0-16 format 1,1" M.O.D. 0.08 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC1618-9M Ricoh Imaging lens 16 mm F 1.8-16 format 1,1" M.O.D. 0.08 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC2518-9M Ricoh Imaging lens 25 mm F 1,8-16 format 1,1" M.O.D. 0,1 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC3518-9M Ricoh Imaging lens 35 mm F 1,6-16 format 1,1" M.O.D. 0,15 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC5024-9M Ricoh Imaging lens 50 mm F 2,4-22 format 1,1" M.O.D. 0,2 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-FL-BC7528-9M Ricoh Imaging lens 75 mm F 2,8-32 format 1,1" M.O.D. 0,25 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V0828-MPY Computar lens 8 mm F 2,8-16 format 1,1" M.O.D. 0,2 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V1228-MPY Computar lens 12 mm F 2,8-16 format 1,1" M.O.D. 0,3 m locating screw for aperture and focus C-mount	1 ks
	ZVL-V1628-MPY Computar lens 16 mm F 2,8-16 format 1,1" M.O.D. 0,3 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V2528-MPY Computar lens 25 mm F 2,8-16 format 1,1" M.O.D. 0,3 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V3528-MPY Computar lens 35 mm F 2,8-16 format 1,1" M.O.D. 0,3 m locating screw for aperture and focus C-mount	na dotaz
	ZVL-V5028-MPY Computar lens 50 mm F 2,8-16 format 1,1" M.O.D. 0,55 m locating screw for aperture and focus C-mount	na dotaz

Foto	Produkt (3) / Popis	Skladová dostupnost
	Cable Mini CL SDR/SDR 5,0 m Camera Link® interface cable SDR ke konektoru SDR Délka 5,0 m up to 80MHz pixel clock	na dotaz
	Shielded cable 3 wires, 10,0 m shielded power cable M8/3-pin female connector to open wires cable carrier compatible length 10,0 m	na dotaz
	Z-ESG 32FP0500G shielded process interface cable M8/8-pin female connector to open wires cable carrier compatible length 5,0 m	na dotaz

Foto	Produkt (4) / Popis	Skladová dostupnost
	Heat Sink Type A heat sink for TX, VCXG.I, VisiLine, VisiLine IP, LX and HX cameras incl. screws (hexagon socket) and washers 48 mm x 33 mm x 16,5 mm	1 ks
	Heat Sink Type B heat sink for TX, VCXG.I, VisiLine, VisiLine IP, LX and HX cameras incl. screws (hexagon socket) and washers 50 mm x 50 mm x 40 mm	na dotaz
	Mounting Adapter Type B (Tripod) camera mounting adapter for TX, VisiLine, VisiLine IP, VCXG.I, LXG, LXC, PX and SX/HX cameras incl. screws (hexagon socket) and washers stable bottom and tripod mounting	na dotaz
	Mounting Adapter Type C camera mounting adapter for TX, VisiLine, VisiLine IP, VCXG.I, LX and HX cameras incl. screws (hexagon socket) and washers stable sidewise mounting	na dotaz

Produkt (22)	Senzor	Senzor typ	Snímkovací frekvence	Rozlišení senzoru	Skladová dostupnost
HXC20	ams (CMOSIS) CMV2000	2/3″ CMOS	301 … 400 fps	2048 × 1088 px	na dotaz
HXC20c	ams (CMOSIS) CMV2000	2/3″ CMOS	301 … 400 fps	2048 × 1088 px	na dotaz
HXC20NIR	ams (CMOSIS) CMV2000	2/3″ CMOS	301 … 400 fps	2048 × 1088 px	na dotaz
HXC40	ams (CMOSIS) CMV4000	1″ CMOS	101 … 200 fps	2048 × 2048 px	na dotaz
HXC40c	ams (CMOSIS) CMV4000	1″ CMOS	101 … 200 fps	2048 × 2048 px	na dotaz
HXC40NIR	ams (CMOSIS) CMV4000	1″ CMOS	101 … 200 fps	2048 × 2048 px	na dotaz
HXG20	ams (CMOSIS) CMV2000	2/3″ CMOS	101 … 200 fps	2048 × 1088 px	na dotaz
HXG20c	ams (CMOSIS) CMV2000	2/3″ CMOS	101 … 200 fps	2048 × 1088 px	na dotaz
HXG20NIR	ams (CMOSIS) CMV2000	2/3″ CMOS	101 … 200 fps	2048 × 1088 px	na dotaz
HXG40	ams (CMOSIS) CMV4000	1″ CMOS	51 … 100 fps	2048 × 2048 px	na dotaz
HXG40c	ams (CMOSIS) CMV4000	1″ CMOS	51 … 100 fps	2048 × 2048 px	na dotaz
HXG40NIR	ams (CMOSIS) CMV4000	1″ CMOS	51 … 100 fps	2048 × 2048 px	na dotaz
VLG-22C	ams (CMOSIS) CMV2000	2/3″ CMOS	51 … 100 fps	2040 × 1084 px	na dotaz
VLG-22M	ams (CMOSIS) CMV2000	2/3″ CMOS	51 … 100 fps	2040 × 1084 px	na dotaz
VLG-23C	Sony IMX174 Gen1	1/1.2" CMOS	51 … 100 fps	1920 × 1200 px	na dotaz
VLG-23M	Sony IMX174 Gen1	1/1.2" CMOS	51 … 100 fps	1920 × 1200 px	na dotaz
VLG-24C	Sony IMX249 Gen1	1/1.2" CMOS	31 … 40 fps	1920 × 1200 px	na dotaz
VLG-24M	Sony IMX249 Gen1	1/1.2" CMOS	31 … 40 fps	1920 × 1200 px	na dotaz
VLG-40C	ams (CMOSIS) CMV4000	1″ CMOS	21 … 30 fps	2040 × 2044 px	na dotaz
VLG-40C.2	ams (CMOSIS) CMV4000 V3	1″ CMOS	21 … 30 fps	2040 × 2044 px	na dotaz
VLG-40M	ams (CMOSIS) CMV4000	1″ CMOS	21 … 30 fps	2040 × 2044 px	na dotaz
VLG-40M.2	ams (CMOSIS) CMV4000 V3	1″ CMOS	21 … 30 fps	2040 × 2044 px	na dotaz
