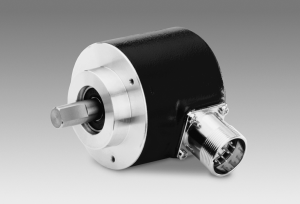

GXA1W - parallel

Encoder singleturn / parallel
Optical sensing method
Clamping or synchro flange
Encoder with capped gray code
Short-circuit proof push-pull outputs
Output release by enable signal

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	10...30 VDC
Ochrana proti přepólování:	Yes
Spotřeba:	≤60 mA (24 VDC)
Čas inicializace:	20 ms after power on
Rozhraní:	12 parallel outputs
Funkce:	Singleturn
Kroků na otáčku:	2880
Absolutní přesnost:	±0.05 °
Typ snímání:	Optical
Typ kódu:	Gray excess
Průběh kódu:	CW/CCW coded by connection
Vstupy:	UP/DOWN inv. ENABLE inv. STORE inv.
Výstupní signál \| rozhraní:	Push-pull short-circuit proof
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-4
Schválení:	UL approval / E63076

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø10 mm solid shaft (clamping flange) ø6 mm solid shaft (synchro flange)
Příruba:	Clamping or synchro flange
Ochrana EN 60529:	IP 54 (without shaft seal) IP 65 (with shaft seal)
Provozní rychlost:	≤10000 rpm (mechanical) ≤6000 rpm (electric)
Rozběhový točivý moment:	≤0.015 Nm (+25 °C, IP 54) ≤0.03 Nm (+25 °C, IP 65)
Moment setrvačnosti rotoru:	14.5 gcm²
Přípustné zatížení hřídele:	≤20 N axial ≤40 N radial
Materiál:	Housing: aluminium Flange: aluminium
Pracovní teplota:	-25...+85 °C -40...+85 °C (optional)
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration 10 g, 16-2000 Hz EN 60068-2-27 Shock 200 g, 6 ms
Přibližná hmotnost:	250 g
Připojení:	Connector M23, 16-pin
