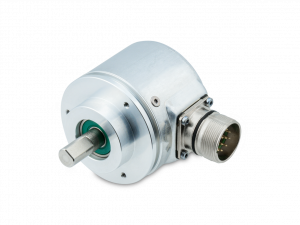

GM400.010A102

Encoder multiturn / SSI
Optical sensing method
Resolution: singleturn 13 bit, multiturn 12 bit
Clamping flange
Electronic setting of zero point
Counting direction input
Maximum resistant against magnetic fields

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	10...30 VDC
Ochrana proti přepólování:	Yes (10...30 VDC)
Spotřeba:	≤50 mA (24 VDC)
Čas inicializace:	20 ms after power on
Rozhraní:	SSI
Funkce:	Multiturn
Kroků na otáčku:	8192 / 13 bit
Počet otáček:	4096 / 12 bit
Absolutní přesnost:	±0.025 °
Typ snímání:	Optical
Typ kódu:	Gray or binary
Průběh kódu:	CW/CCW coded by connection
Vstupy:	SSI clock Control signals UP/DOWN inv. and zero
Výstupní signál \| rozhraní:	SSI data: Linedriver RS422 Diagnostic outputs push-pull
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-4
Testovací funkce:	Self-diagnosis Multiturn sensing
Schválení:	UL approval / E63076

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø10 mm solid shaft
Příruba:	Clamping flange
Ochrana EN 60529:	IP 54 (without shaft seal)
Provozní rychlost:	≤10000 rpm (mechanical) ≤6000 rpm (electric)
Angular acceleration:	≤2500 rad/s² (UB = 0 VDC) ≤500000 rad/s² (UB = 10...30 VDC, 5 VDC)
Rozběhový točivý moment:	≤0.015 Nm (+25 °C, IP 54)
Moment setrvačnosti rotoru:	20 gcm²
Přípustné zatížení hřídele:	≤20 N axial ≤40 N radial
Materiál:	Housing: aluminium Flange: aluminium
Pracovní teplota:	-25...+85 °C
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz EN 60068-2-27 Shock 200 g, 6 ms
Přibližná hmotnost:	400 g
Připojení:	Connector M23, 12-pin
