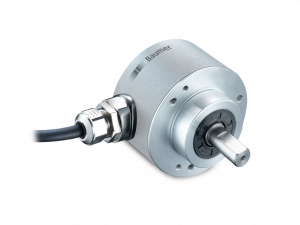

EAM580-SC0.5L4G.13120.A

Encoder multiturn / SSI
Precise magnetic sensing
Resolution: 25 bit (13 bit ST, 12 bit MT)
Angular accuracy up to ±0.15°
Additional incremental signals
High protection IP 65
High resistance to shock and vibrations

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	4.5...30 VDC
Spotřeba (typicky):	60 mA (5 VDC, w/o load) 20 mA (24 VDC, w/o load)
Čas inicializace:	≤ 170 ms after power on
Rozhraní:	SSI
Funkce:	Multiturn
Kroků na otáčku:	8192 / 13 bit
Počet otáček:	4096 / 12 bit
Absolutní přesnost:	±0.15 ° (+20 ±15 °C) ±0.25 ° (-40...+85 °C)
Typ snímání:	Magnetic
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-4
Schválení:	UL approval / E217823

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø10 x 20 mm, solid shaft with flat
Příruba:	Clamping flange
Ochrana EN 60529:	IP 65 (without shaft seal)
Provozní rychlost:	≤6000 rpm
Rozběhový točivý moment:	≤2 Ncm (+20 °C, IP 65) ≤2.5 Ncm (+20 °C, IP 67)
Moment setrvačnosti:	15.38 gcm²
Přípustné zatížení hřídele:	≤40 N axial ≤80 N radial
Materiál:	Housing: steel zinc-coated Flange: aluminium Shaft: stainless steel
Pracovní teplota:	-40...+85 °C (see general information)
Relativní vlhkost:	95 %
Odolnost:	EN 60068-2-6 Vibration 30 g, 10-2000 Hz EN 60068-2-27 Shock 500 g, 1 ms
Přibližná hmotnost:	250 g
Připojení:	Cable 2 m
