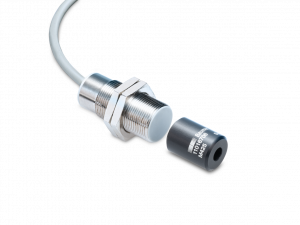

MDRM 18U9501 - Magnetic angle sensors

Voltage output
Cable PUR 3 x 0.25, 2 m
-40 … 85 °C
IP 67
Magnetic rotor not included in delivery

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Úhlový rozsah:	160° linear
Rozlišení:	0.09 °
Systémová odchylka:	± 0,25 %
Teplotní drift:	± 0,2 % (Full Scale)
Maximální snímací vzdálenost:	5 mm, with magnet rotor MSFS
Osová nesouměrnost (max.):	0.4 mm

Elektrické parametry

Čas odezvy:	< 4 ms
Rozsah napájecího napětí +Vs:	5 VDC
Maximální spotřeba proudu (bez zátěže):	10 mA
Výstupní signál:	0,5 ... 4,5 VDC
Odpor zátěže:	> 1000 Ohm
Výstupní obvod:	Voltage output
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	No

Mechanické parametry

Způsoby připojení:	Cable PUR 3 x 0,25, 2 m
Konstrukce:	Cylindrical threaded
Materiál pouzdra:	Brass nickel plated
Rozměry:	18 mm
Materiál aktivní části:	PBTP

Okolní podmínky

Pracovní teplota:	-40 - +85 °C
Třída krytí:	IP 67

Produkt (4) / Popis	Produktová skupina	Skladová dostupnost
MMFN AA01X06 - On-axis magnet for bearingless encoders For cost-efficient adhesive mounting Operating temperature -40...+100 °C Packing unit: 10 pieces	Magnety	na dotaz
MMFS AA03X08 - On-axis magnet for bearingless encoders For cost-efficient adhesive mounting Operating temperature -40...+180 °C Packing unit: 10 pieces	Magnety	na dotaz
MSFN AA01X06 - Magnetic rotor for bearingless encoder Simple screw mounting For 6 mm shaft diameter Operating temperature -40...+85 °C	Magnety	na dotaz
MSFS AA03X08 - Magnetic rotor for bearingless encoder Simple screw mounting For 6 mm shaft diameter Operating temperature -40...+125 °C	Magnety	na dotaz

Foto	Produkt (2)	Produktová skupina	Skladová dostupnost
	ZPOWS-ALL.24V - Test unit for sensors	Periferie	na dotaz
	ZTEST-ALL.ANALOG - Test unit for sensors analog & digital	Periferie	na dotaz

Produkt (4) / Popis	Produktová skupina	Skladová dostupnost
Sensofix series 18 - Sensofix series 18 Clamps made of stainless steel Ball pivots made of galvanized steel Mounting panel made of stainless steel	Montážní příslušenství	na dotaz
ZADAP-M18.LONG - Mounting bracket long series 18 (L design) Material: Steel galvanized	Montážní příslušenství	10 ks
ZADAP-M18.SHORT - Mounting bracket short series 18 (L design) Material: Steel galvanized	Montážní příslušenství	na dotaz
ZADAP-M18.STANDARD - Mounting bracket series 18 Material: Steel galvanized	Montážní příslušenství	na dotaz
