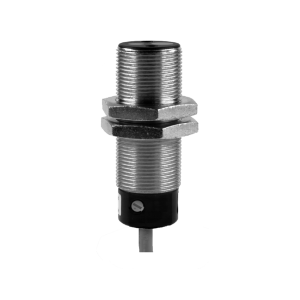

FZAM 18N1150 - Fiber optic sensors

FZAM 18N1150 - Fiber optic sensors
  • 150 mm
  • 800 mm
  • pulsed infrared diode
  • NPN
  • potentiometer, 270°
  • cable 3 pin, 2 m
  • -25 … 55 °C
  • IP 67
Objednací číslo: 10129020
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Zdroj světla: Pulsed infrared diode
Světelný indikátor: LED yellow
Indikace znečištění: LED, flashing
Nastavení: Potentiometer, 270°
Vlnová délka: 880 nm
Potlačení vzájemného ovlivňování: Yes

Elektrické parametry

Doba odezvy: < 1 ms
Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 45 mA
Běžná spotřeba proudu: 30 mA
Pokles napětí Vd: <1.8 VDC
Výstupní funkce: Light operate
Výstupní obvod: NPN
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 18 mm
Výška | Délka: 50 mm
Konstrukce: Cylindrical threaded
Materiál pouzdra: Brass nickel plated / PC
Způsoby připojení: Cable 3 pin, 2 m

Okolní podmínky

Pracovní teplota: -25 - +55 °C
Třída krytí: IP 67
