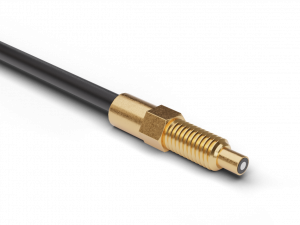

FUE 025B1002 - Glass fiber optic cable

FUE 025B1002 - Glass fiber optic cable
  • Diffuse type
  • Sensing distance up to 60 mm
  • Threaded sensing head M4
  • Plastic jacket 25 cm long
  • Operating temperature up to +70 °C
  • For rugged fiber optic sensors FVDM 15
Objednací číslo: 10258987
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Princip činnosti: Diffuse type
Snímací vzdálenost: 60 mm
Hlava optického vlákna: Cylindrical threaded
Pracovní teplota: -25 - +70 °C
Vyzařovací úhel: 60°
Optická vlákno lze zkrátit: No
Integrovaný objektiv: No
Adaptabilní objektiv: No
Kompatibilní s IR světlem (1450 nm): Yes

Mechanické parametry

Šířka | průměr (hlava): 4 mm
Výška | Délka (koncovka): 24 mm
Materiál (koncovka): Brass
Závit: M4 x 0.7
Ohýbací rádius (pevná instalace): 13.5 mm
Ohýbací rádius (pohyblivá instalace): 27 mm
Průměr pláště: 4.5 mm
Materiál kabelové izolace: PUR
Průřez optického vlákna: 1 mm²
Materiál (optického vlákna): Glass
Délka (optický kabel): 25 cm
