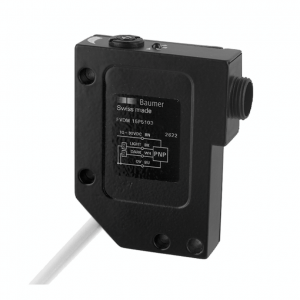

FVDM 15P5103 - Fiber optic sensors

FVDM 15P5103 - Fiber optic sensors
  • 240 mm
  • 1200 mm
  • pulsed infrared diode
  • PNP
  • potentiometer, 20 turn
  • cable 4 pin, 2 m
  • -25 … 65 °C
  • IP 65
Objednací číslo: 10234520
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Zdroj světla: Pulsed infrared diode
Světelný indikátor: LED yellow
Indikace znečištění: LED, flashing
Nastavení: Potentiometer, 20 turn
Vlnová délka: 880 nm
Potlačení vzájemného ovlivňování: Yes

Elektrické parametry

Doba odezvy: < 1 ms
Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 46 mA
Běžná spotřeba proudu: 30 mA
Pokles napětí Vd: <1.8 VDC
Výstupní funkce: Light / dark operate
Výstupní obvod: PNP
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 15 mm
Výška | Délka: 60 mm
Hloubka: 45 mm
Konstrukce: Rectangular
Materiál pouzdra: Die-cast aluminum
Způsoby připojení: Cable 4 pin, 2 m

Okolní podmínky

Pracovní teplota: -25 - +65 °C
Třída krytí: IP 65
