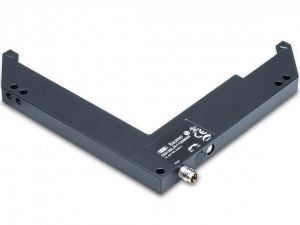

OG120L.R-GW1O.7WL - Angle sensors

through beam sensor
158 mm
pulsed red LED
Push-Pull
potentiometer / IO-Link
connector M8, 3 pin
-25 … 60 °C
IP 67

Objednací číslo: 11229520
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

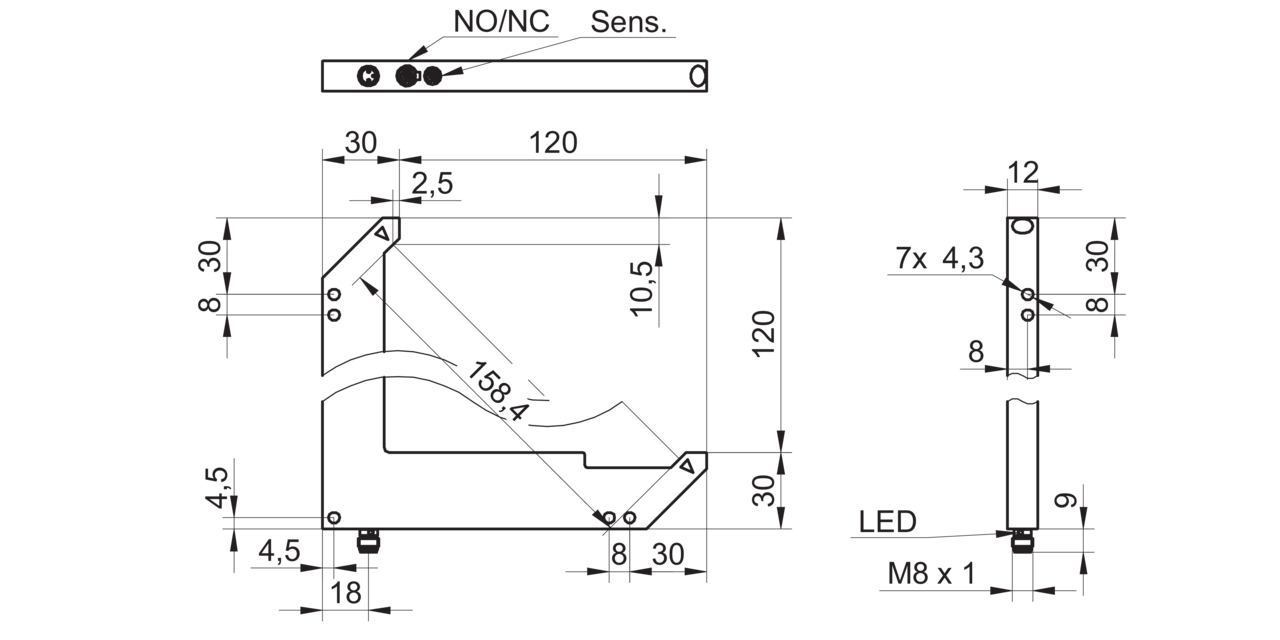

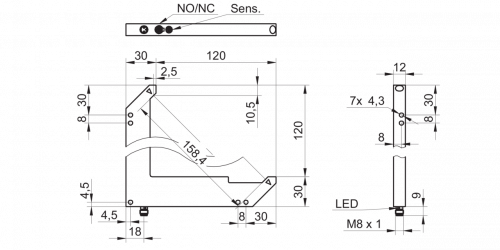

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Through beam sensor
Velikost objektu:	> 1 mm
Opakovatelnost:	0.06 mm
Doba odezvy:	< 0.1 ms 0
Hystereze:	< 0.25 mm
Nastavení citlivosti:	Potentiometer, 270° IO-Link
Zdroj světla:	Pulsed red LED
Vlnová délka:	660 nm
Světelný indikátor:	LED yellow

Komunikační rozhraní

IO-Link:	Yes
Rozhraní:	IO-Link V1.1

Elektrické parametry

Spínací frekvence:	5000 Hz , default 1500 Hz 250 Hz 8000 Hz
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	40 mA
Výstupní funkce:	Light / dark operate switchable
Výstupní obvod:	Push-pull / IO-Link
Pokles napětí Vd:	<2.8 VDC
Výstupní proud:	200 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	150 mm
Snímací rozsah:	158.4 mm
Výška \| Délka:	150 mm
Hloubka vidlice:	120 mm
Hloubka:	12 mm
Konstrukce:	L profile
Materiál pouzdra:	Die-cast zinc
Způsoby připojení:	Connector M8, 3 pin

Okolní podmínky

Pracovní teplota:	-25 - +60 °C
Třída krytí:	IP 67
