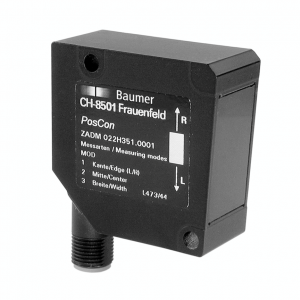

ZADM 023H300.0002 - Edge sensors - transparent detection

ZADM 023H300.0002 - Edge sensors - transparent detection
  • measuring mode: edges, center, width
  • 30 mm
  • 50 mm
  • pulsed infrared diode
  • Teach-in
  • connector M12 8 pin, rotatable
  • 55 °C
  • IP 67
Objednací číslo: 10158591
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Measuring mode: edges, center, width
Verze: With filter for transparent objects
Šířka měřicího pole: 30 mm
Měřicí vzdálenost (k objektu): 50 mm
Nastavení: Teach-in
Nejmenší velikost objektu: 0.3 mm
Rozlišení: < 0.03 mm
Chyba linearity: < 0.3 %

Zdroj světla

Zdroj světla: Pulsed infrared diode
Vlnová délka: 880 nm

Elektrické parametry

Měřicí frekvence: 500 Hz
Rozsah napájecího napětí +Vs: 15 - 28 VDC
Maximální spotřeba proudu (bez zátěže): 150 mA
Výstupní signál: 4 ... 20 mA
Výstupní proud: 100 mA
Ochrana proti přepólování: Yes, Vs to GND
Čas odezvy: < 2 ms
spínací výstup: NPN
Výstupní funkce: Out 1 / Alarm

Komunikační rozhraní

Rozhraní: Analog and RS485
Modulační rychlost (baud rate): 19200, adjustable

Mechanické parametry

Šířka | průměr: 23 mm
Konstrukce: Rectangular
Materiál pouzdra: Die-cast zinc
Materiál krycího skla: Glass
Způsoby připojení: Connector M12 8 pin, rotatable

Okolní podmínky

Třída krytí: IP 67
Pracovní teplota: 0 - +55 °C
