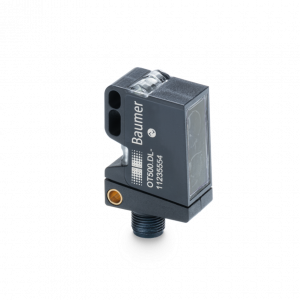

OT500.DL-GLUBJ.72F

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Distance measurement via IO-Link or analog output
Reliable also on very dark and shiny objects
Manipulation-proof, simple teach-in via qTeach or line teach
Extended parameterization options and additional diagnostic data
Longest distances thanks to time of flight principle

Objednací číslo: 11235554
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Distance measuring
Verze:	Time of Flight
Měřicí vzdálenost Sd:	150 - 2500 mm
Měřicí rozsah:	2350 mm
Ohnisková vzdálenost:	1500 mm
Nastavení:	Teach-in and IO-Link
Indikace napájení:	LED green
Výstupní indikátor:	LED yellow
Opakovatelnost:	≤ 1200 - 4300 µm
Chyba linearity:	± 10 mm
Typ paprsku:	Point
Potlačení vzájemného ovlivňování:	Yes
Odklon od osy:	< 1°
Teplotní drift:	± 15 mm

Zdroj světla

Zdroj světla:	Pulsed red laser diode
Vlnová délka:	680 nm
Třída laseru:	1

Elektrické parametry

Doba odezvy:	< 4 ms (High Speed Mode) < 8 ms (Standard Mode) < 50 ms (Long Range Mode)
Rozsah napájecího napětí +Vs:	12 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	60 mA
Pokles napětí Vd:	<2 VDC
Výstupní obvod:	Analog 0 ... 10 VDC Push-pull / IO-Link
Výstupní proud:	50 mA (push-pull)
spínací výstup:	Light operate, switchable
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Komunikační rozhraní

Rozhraní:	IO-Link V1.1.3
IO-Link připojení:	Class A
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Čas cyklu:	≥ 2 ms
Procesní data:	32 Bit
Struktura procesních dat:	Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 8-15 = scale factor Bit 16-31 = 16 Bit measurement
Nastavitelné parametry:	Switching point Switching hysteresis Operation mode Time filters LED status indicators Output logic Output circuit Analog output characteristic Counter Deactivate the sensor element Find Me function Teach-in mode
Další údaje:	Distance Excess gain Operating cycles Operating hours Boot cycles Operating voltage Device temperature Histograms

Mechanické parametry

Šířka \| průměr:	18 mm
Výška \| Délka:	45 mm
Hloubka:	32 mm
Konstrukce:	Rectangular
Materiál pouzdra:	Plastic (ASA, PMMA)
Materiál krycího skla:	PMMA
Způsoby připojení:	Connector M12 5 pin

Okolní podmínky

Třída krytí:	IP 67
Pracovní teplota:	-20 - +50 °C
Skladovací teplota:	-40 - +70 °C
odolnost vůči vibracím:	IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
Odolnost vůči nárazu:	IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction

Nákresy

Výkresy

2988-O500-x-S14.png | stáhnout (png, 2025-07-11 20:00:53)

Diagram připojení

Zchn-6460-A-IO-Link.png | stáhnout (png, 2025-07-12 01:32:18)

Přiřazení pinů

Zchn-5605-12.png | stáhnout (png, 2025-07-12 01:33:36)

charakteristika paprsku (obvykle)

C_E_OT500_Strahlverlauf.png | stáhnout (png, 2025-07-12 05:07:51)

Varování

Laserwarnung_1.png | stáhnout (png, 2025-07-11 20:18:31)

Diagramy

Přesnost opakování

E_OT500_Wiederholgenauigkeit_Fast.png | stáhnout (png, 2025-07-12 05:07:10)
E_OT500_Wiederholgenauigkeit_Standard.png | stáhnout (png, 2025-07-12 05:06:35)
E_OT500_Wiederholgenauigkeit_Long range.png | stáhnout (png, 2025-07-12 05:06:52)

Diagram snímací vzdálenosti

C_E_OT500_Tastweite.png | stáhnout (png, 2025-07-12 05:14:04)

Hystereze

E_OT500_Hysterese_Fast.png | stáhnout (png, 2025-07-12 05:08:02)
E_OT500_Hysterese_Standard.png | stáhnout (png, 2025-07-12 05:07:27)
E_OT500_Hysterese_Long range.png | stáhnout (png, 2025-07-12 05:07:45)

Ke stažení

Datový list

Data sheet – OT500.DL-GLUBJ.72F | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:38:07)
Data sheet – OT500.DL-GLUBJ.72F | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:38:07)
Data sheet – OT500.DL-GLUBJ.72F | stáhnout | zobrazit (ZH, pdf, 2025-04-11 11:38:07)

Rychlý start

Quickstart OT500 EN/DE/FR/IT/ZH/ES | stáhnout | zobrazit (EN/DE/FR/IT/ZH/ES, pdf, 2025-06-27 09:15:06)

Manuál

Manual OT500 (DE) | stáhnout | zobrazit (pdf, 2025-07-21 13:13:06)
Manual OT500 (EN) | stáhnout | zobrazit (pdf, 2025-07-21 13:13:04)
Manual OT500 (FR) | stáhnout | zobrazit (pdf, 2025-07-21 13:13:05)

Certifikáty/ osvědčení

OT500 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:38:07)

CAD

ePlan macro - 11235554 | stáhnout (edz, 2023-09-20 09:54:43)

Software

Software - IODD V1.1 (OT500DL-U_ID755) | stáhnout (zip, 2025-07-11 22:14:40)

Příslušenství

Obsahuje:Periferie Montážní příslušenství Kabely s volným koncem LED-Kabely s volným koncem Kabely

Periferie

Foto	Produkt (6)
	CM50I.EC-11261572 Obj. číslo: 11261572
	CM50I.EIP-11261573 Obj. číslo: 11261573
	CM50I.PN-11261571 Obj. číslo: 11261571
	SensControl - Wireless IO-Link Master Obj. číslo: 11214576
	USB-C IO-Link Master Obj. číslo: 11234828
	ZTEST-ALL.ANALOG - Test unit for sensors analog & digital Obj. číslo: 11084376

Montážní příslušenství

Další podobné produkty naleznete v kategorii: Montážní příslušenství

Produkt (12) / Popis	Produktová skupina	Skladová dostupnost
11092246 - Mounting bracket O500/U500 (L design) Obj. číslo: 11092246 Materiál: Ocel	Montážní příslušenství	na dotaz
11099942 - Sensofix O500/U500 Obj. číslo: 11099942 Svěrky z nerezové oceli Kulové čepy z pozinkované oceli Montážní panel z nerezové oceli	Montážní příslušenství	4 ks
11111164 - Mounting bracket O500/U500 - Retrofit for sensors series 30 Obj. číslo: 11111164 Materiál: Ocel	Montážní příslušenství	na dotaz
Mounting base Obj. číslo: 11707702 Material: Plastic (PA) Part of an assembly	Montážní příslušenství	1 ks
Mounting plate series 500 and ø18 mm Obj. číslo: 11707699 Material: Steel Part of an assembly	Montážní příslušenství	na dotaz
Mounting rod 200 mm Obj. číslo: 11707688 Material: Aluminium Part of an assembly Different lengths available	Montážní příslušenství	na dotaz
Mounting rod 250 mm Obj. číslo: 11707697 Material: Aluminium Part of an assembly Different lengths available	Montážní příslušenství	2 ks
Mounting rod 300 mm Obj. číslo: 11707687 Material: Aluminium Part of an assembly Different lengths available	Montážní příslušenství	3 ks
Mounting rod with mounting plate holder 200 mm Obj. číslo: 11707685 Material: Aluminium Part of an assembly Different lengths available	Montážní příslušenství	na dotaz
Mounting rod with mounting plate holder 250 mm Obj. číslo: 11707698 Material: Aluminium Part of an assembly Different lengths available	Montážní příslušenství	na dotaz
Mounting rod with mounting plate holder 300 mm Obj. číslo: 11707686 Material: Aluminium Part of an assembly Different lengths available	Montážní příslušenství	1 ks
Two-way connector Obj. číslo: 11707703 Material: Plastic (PA) Part of an assembly	Montážní příslušenství	5 ks

Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (56) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A5-11230337 Obj. číslo: 11230337 M12, female, A-coded, 5-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A5-11230338 Obj. číslo: 11230338 M12, female, A-coded, 5-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A5-11230345 Obj. číslo: 11230345 M12, female, A-coded, 5-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A5-11230346 Obj. číslo: 11230346 M12, female, A-coded, 5-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A5-11230351 Obj. číslo: 11230351 M12, female, A-coded, 5-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A5-11230352 Obj. číslo: 11230352 M12, female, A-coded, 5-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A5-11230353 Obj. číslo: 11230353 M12, female, A-coded, 5-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A5-11230357 Obj. číslo: 11230357 M12, female, A-coded, 5-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A5-11230449 Obj. číslo: 11230449 M12, female, A-coded; 5-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A5-11230450 Obj. číslo: 11230450 M12, female, A-coded; 5-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A5-11230454 Obj. číslo: 11230454 M12, female, A-coded; 5-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A5-11230455 Obj. číslo: 11230455 M12, female, A-coded; 5-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A5-11230974 Obj. číslo: 11230974 M12, female, A-coded, 5-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	2 ks
CAM12.A5-11230977 Obj. číslo: 11230977 M12, female, A-coded, 5-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A5-11230981 Obj. číslo: 11230981 M12, female, A-coded, 5-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A5-11230982 Obj. číslo: 11230982 M12, female, A-coded, 5-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A5-11230987 Obj. číslo: 11230987 M12, female, A-coded; 5-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A5-11230988 Obj. číslo: 11230988 M12, female, A-coded; 5-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A5-11230989 Obj. číslo: 11230989 M12, female, A-coded; 5-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A5-11230990 Obj. číslo: 11230990 M12, female, A-coded; 5-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A5-11230997 Obj. číslo: 11230997 M12, female, A-coded; 5-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A5-11230998 Obj. číslo: 11230998 M12, female, A-coded; 5-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A5-11230999 Obj. číslo: 11230999 M12, female, A-coded; 5-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A5-11231000 Obj. číslo: 11231000 M12, female, A-coded; 5-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A5-11232985 Obj. číslo: 11232985 M12, female, A-coded, 5-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A5-11232986 Obj. číslo: 11232986 M12, female, A-coded, 5-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A5-11232987 Obj. číslo: 11232987 M12, female, A-coded, 5-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A5-11232988 Obj. číslo: 11232988 M12, female, A-coded, 5-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A5-11232995 Obj. číslo: 11232995 M12, female, A-coded, 5-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A5-11232996 Obj. číslo: 11232996 M12, female, A-coded, 5-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A5-11232997 Obj. číslo: 11232997 M12, female, A-coded, 5-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A5-11232998 Obj. číslo: 11232998 M12, female, A-coded, 5-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A5-11233005 Obj. číslo: 11233005 M12, female, A-coded, 5-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A5-11233006 Obj. číslo: 11233006 M12, female, A-coded, 5-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A5-11233007 Obj. číslo: 11233007 M12, female, A-coded, 5-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A5-11233008 Obj. číslo: 11233008 M12, female, A-coded, 5-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A5-11233010 Obj. číslo: 11233010 M12, female, A-coded, 5-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A5-11233011 Obj. číslo: 11233011 M12, female, A-coded, 5-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A5-11233012 Obj. číslo: 11233012 M12, female, A-coded, 5-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A5-11233013 Obj. číslo: 11233013 M12, female, A-coded, 5-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A5-11233025 Obj. číslo: 11233025 M12, female, A-coded; 5-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A5-11233026 Obj. číslo: 11233026 M12, female, A-coded; 5-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A5-11233027 Obj. číslo: 11233027 M12, female, A-coded; 5-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A5-11233028 Obj. číslo: 11233028 M12, female, A-coded; 5-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A5-11233030 Obj. číslo: 11233030 M12, female, A-coded; 5-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A5-11233031 Obj. číslo: 11233031 M12, female, A-coded; 5-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A5-11233032 Obj. číslo: 11233032 M12, female, A-coded; 5-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A5-11233033 Obj. číslo: 11233033 M12, female, A-coded; 5-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A5-11233050 Obj. číslo: 11233050 M12, female, A-coded; 5-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A5-11233051 Obj. číslo: 11233051 M12, female, A-coded; 5-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A5-11233052 Obj. číslo: 11233052 M12, female, A-coded; 5-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A5-11233053 Obj. číslo: 11233053 M12, female, A-coded; 5-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A5-11233055 Obj. číslo: 11233055 M12, female, A-coded; 5-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A5-11233056 Obj. číslo: 11233056 M12, female, A-coded; 5-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A5-11233057 Obj. číslo: 11233057 M12, female, A-coded; 5-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A5-11233058 Obj. číslo: 11233058 M12, female, A-coded; 5-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz

LED-Kabely s volným koncem
