OADM 20I6591 - Distance sensors - high vibration resistance

OADM 20I6591 - Distance sensors - high vibration resistance
  • 50 … 300 mm
  • pulsed red laser diode
  • Teach-in: button / external
  • cable 8 pin, 2 m
  • -20 … 60 °C
  • IP 67
Objednací číslo: 10165976
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Diagramy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Měřicí vzdálenost Sd: 50 - 300 mm
Nastavení: Teach-in: button / external
Teach-in rozsah - min.: > 5 mm
Indikace napájení: LED green
Indikátor znečištění optiky: LED red

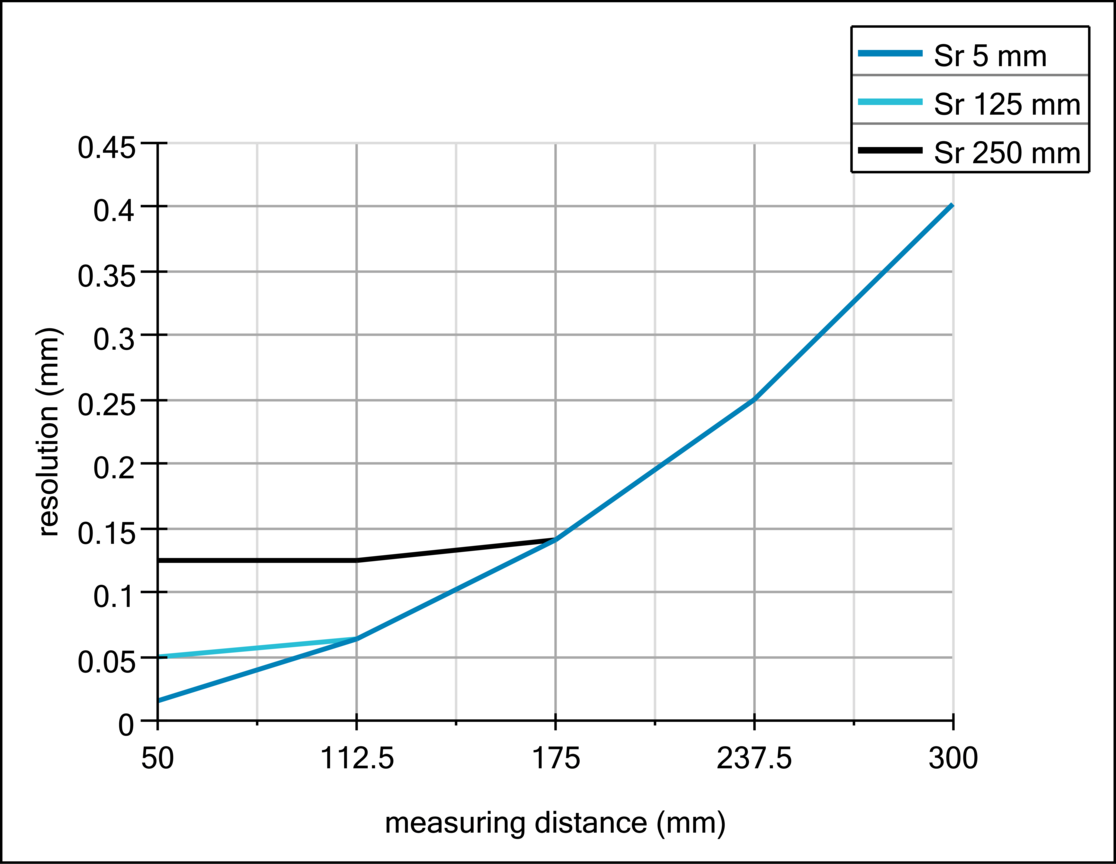

Rozlišení: 10 - 400 µm
Chyba linearity: ± 0.2 - 1.5 mm
Typ paprsku: Line
Šířka paprsku: 2 mm
Výška paprsku: 6 - 11 mm
Teplotní drift: < 0,04 % Sde/K

Zdroj světla

Zdroj světla: Pulsed red laser diode
Vlnová délka: 650 nm
Třída laseru: 2

Elektrické parametry

Doba odezvy: < 2 ms
Rozsah napájecího napětí +Vs: 12 - 28 VDC
Maximální spotřeba proudu (bez zátěže): 100 mA
Výstupní signál: 4 ... 20 mA / 0 ... 10 VDC
Odpor zátěže (analog I): < (+Vs - 6 V) / 0,02 A
Odpor zátěže (analog U): > 100 kOhm
Výstupní proud: 100 mA
Alarmový výstup: PNP
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes, Vs to GND

Mechanické parametry

Šířka | průměr: 20.6 mm
Výška | Délka: 65 mm
Hloubka: 50 mm
Konstrukce: Rectangular
Materiál pouzdra: Die-cast zinc
Materiál krycího skla: Glass
Způsoby připojení: Cable 8 pin, 2 m

Okolní podmínky

Odolnost vůči okolnímu osvětlení: < 100 kLux
Třída krytí: IP 67
Pracovní teplota: -20 - +60 °C
odolnost vůči vibracím:
  • IEC 60068-2-6:2008
  • 30 g at f = 10 - 2000 Hz, cycles per axis
Odolnost vůči nárazu:
  • IEC 60068-2-29:2009
  • 75 g / 6 ms, 4000 jolts per axis and direction
