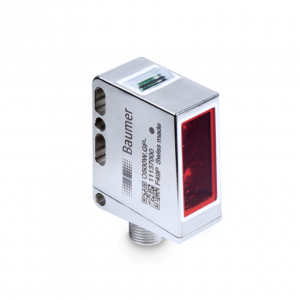

O500W.DP.2-GLIAJ.PVF/H002

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Distance measurement via IO-Link or analog output
Outstanding reliability and unrivalled immunity against ambient light
Baumer PinPoint LED: Small, homogeneous light spot with sharp edges
Manipulation-proof, simple teach-in via qTeach
IO-Link for extended parameterization options and additional diagnostic data
Robust stainless steel housing in washdown design

Objednací číslo: 11252153
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Distance measuring
Měřicí vzdálenost Sd:	60 - 550 mm
Měřicí rozsah:	490 mm
Nastavení:	Teach-in and IO-Link
Indikace napájení:	LED green
Výstupní indikátor:	LED yellow
Opakovatelnost:	≤ 200 - 5000 µm (Raw) ≤ 150 - 3750 µm (High Speed) ≤ 100 - 2500 µm (Standard) ≤ 50 - 1250 µm (High Accuracy)
Chyba linearity:	± 3 % Mr
Typ paprsku:	Point
Potlačení vzájemného ovlivňování:	Yes
Odklon od osy:	< 1°
Teplotní drift:	< 0,3 % Sde/K

Zdroj světla

Zdroj světla:	Pulsed PinPoint LED
Vlnová délka:	630 nm

Elektrické parametry

Doba odezvy:	< 1.5 ms (Raw) < 2.25 ms (High Speed Mode) < 4.5 ms (Standard Mode) < 14 ms (High Accuracy Mode)
Rozsah napájecího napětí +Vs:	12 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	30 mA
Pokles napětí Vd:	<2 VDC
Výstupní obvod:	Analog 4 ... 20 mA Push-pull / IO-Link
Odpor zátěže:	< (+Vs - 6 V) / 0,02 A
Výstupní proud:	100 mA (push-pull)
spínací výstup:	Light operate, switchable
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Komunikační rozhraní

Rozhraní:	IO-Link V1.1.3
IO-Link připojení:	Class A
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Čas cyklu:	≥ 0.7 ms
Procesní data:	48 Bit
Struktura procesních dat:	Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality Bit 3 = alarm Bit 8-15 = scale factor Bit 16-47 = 32 Bit measurement
Nastavitelné parametry:	Switching point Operation mode Time filters LED-function Output logic Output circuit Analog output characteristic Deactivate the sensor element Locater function Teach-in mode
Další údaje:	Distance Excess gain Device temperature

Mechanické parametry

Šířka \| průměr:	20.2 mm
Výška \| Délka:	47.9 mm
Hloubka:	37.7 mm
Konstrukce:	Rectangular
Materiál pouzdra:	Stainless steel 1.4404 (V4A)
Materiál krycího skla:	PMMA
Způsoby připojení:	Connector M12 5 pin

Okolní podmínky

Třída krytí:	IP 68/69K & proTect+
Pracovní teplota:	-25 - +60 °C
Skladovací teplota:	-40 - +70 °C
odolnost vůči vibracím:	IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
Odolnost vůči nárazu:	IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction

Nákresy

Výkresy

3315-O500W-x-H002.png | stáhnout (png, 2025-07-11 20:07:54)

Diagram připojení

Zchn-6460-A-IO-Link.png | stáhnout (png, 2025-07-12 01:32:18)

Přiřazení pinů

Zchn-5605-12.png | stáhnout (png, 2025-07-12 01:33:36)

charakteristika paprsku (obvykle)

Zchn-6177.png | stáhnout (png, 2025-07-11 19:31:23)

Ke stažení

Datový list

Data sheet – O500W.DP.2-GLIAJ.PVF/H002 | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:37:16)
Data sheet – O500W.DP.2-GLIAJ.PVF/H002 | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:37:16)

Rychlý start

Baumer_O500_BA_Multilingual_V2.pdf | stáhnout | zobrazit (EN/DE/FR, pdf, 2025-04-11 11:37:08)

Certifikáty/ osvědčení

DoC / CoC - O500 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-30 14:57:02)

CAD

Dummy-CAD.stp | stáhnout (stp, 2024-07-02 13:03:26)

Software

Software – IODD V1.1 (O500x.Dx-I) | stáhnout (zip, 2025-07-11 17:38:05)
