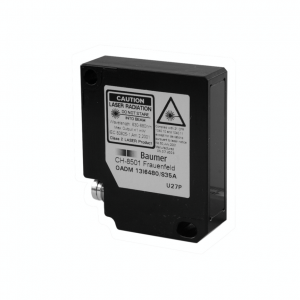

OADM 13S7580/S35A - Distance sensors - miniature

Objednací číslo: 11043129, Výrobce: Baumer Electric AG

50 … 550 mm
pulsed red laser diode
RS 485
RS 485
connector M8 4 pin
50 °C
IP 67

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Měřicí vzdálenost Sd:	50 - 550 mm
Nastavení:	RS485
Indikace napájení:	LED green
Rozlišení:	90 - 1150 µm
Chyba linearity:	± 0.3 - 3.5 mm
Typ paprsku:	Line
Šířka paprsku:	2 mm
Výška paprsku:	4 - 13 mm
Signalizace alarmu:	LED red
Teplotní drift:	< 0,07 % Sde/K

Zdroj světla

Zdroj světla:	Pulsed red laser diode
Vlnová délka:	650 nm
Třída laseru:	2

Elektrické parametry

Doba odezvy:	< 2 ms
Rozsah napájecího napětí +Vs:	12 - 28 VDC
Maximální spotřeba proudu (bez zátěže):	80 mA
Výstupní obvod:	RS485
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Komunikační rozhraní

Modulační rychlost (baud rate):

38400, adjustable

Mechanické parametry

Šířka \| průměr:	13.4 mm
Výška \| Délka:	48.2 mm
Hloubka:	40 mm
Design:	Rectangular
Materiál pouzdra:	Aluminum
Materiál krycího skla:	Glass
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Odolnost vůči okolnímu osvětlení:	< 100 kLux
Třída krytí:	IP 67
Pracovní teplota:	0 - +50 °C
