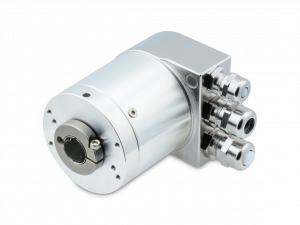

GXAMS

Encoder singleturn / bus cover
Optical sensing method
Resolution: 13 bit
Blind hollow shaft ø12...15 mm
Extreme compact design
CANopen®, EtherCAT, EtherNet/IP, SAEJ1939, PROFINET, Profibus, SSI
Code continuity check optional by bus
Maximum resistant against magnetic fields

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	10...30 VDC
Ochrana proti přepólování:	Yes
Spotřeba:	≤100 mA (24 VDC)
Čas inicializace:	250 ms after power on
Rozhraní:	CANopen® EtherCAT EtherNet/IP Profibus PROFINET SAE J1939 SSI
Funkce:	Singleturn
Adresa zařízení:	Rotary switch in bus cover (type-specific)
Kroků na otáčku:	≤8192 / 13 bit
Absolutní přesnost:	±0.025 °
Typ snímání:	Optical
Typ kódu:	Binary
Průběh kódu:	CW/CCW programmable
Inkrementální výstup:	2048 pulses A90°B (optional)
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-4
Programovatelné parametry:	Steps per revolution Preset Scaling Rotating direction
Testovací funkce:	Position or parameter error
Indikátor stavu:	DUO-LED integrated in bus cover
Schválení:	UL approval / E63076

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø12...15 mm (blind hollow shaft)
Ochrana EN 60529:	IP 54 IP 65
Provozní rychlost:	≤6000 rpm (mechanical) ≤6000 rpm (electric)
Rozběhové zrychlení:	≤1000 U/s²
Rozběhový točivý moment:	≤0.015 Nm (+25 °C, IP 54) ≤0.03 Nm (+25 °C, IP 65)
Moment setrvačnosti rotoru:	20 gcm²
Materiál:	Housing: steel Flange: aluminium Bus cover: zinc die-cast
Pracovní teplota:	-25...+85 °C -40...+85 °C (optional)
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration 10 g, 16-2000 Hz EN 60068-2-27 Shock 200 g, 6 ms
Přibližná hmotnost:	500 g
Připojení:	Bus cover
