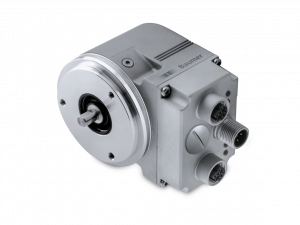

EAL580-SV - EtherCAT

Absolute encoder multiturn
Optical sensing method
Max. resolution: singleturn 18 bit, multiturn 16 bit
Synchro flange
LED status display
EtherCAT
Maximum resistant against magnetic fields

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	10...30 VDC
Ochrana proti přepólování:	Yes
Spotřeba:	≤100 mA (24 VDC)
Rozhraní:	EtherCAT
Funkce:	Multiturn
Kroků na otáčku:	≤262144 / 18 bit (adjustable)
Počet otáček:	≤65536 / 16 bit (adjustable)
Celkové rozlišení:	≤ 31 bit
Absolutní přesnost:	±0.01 ° (ST 18 bit / MT 13 bit) ±0.025 ° (ST 13 bit / MT 16 bit)
Typ snímání:	Optical
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-4
Indikátor stavu:	4x LED integrated in housing
Schválení:	UL approval / E63076

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø6 x 10 mm, solid shaft with flat
Příruba:	Synchro flange
Ochrana EN 60529:	IP 54 IP 65 IP 67
Provozní rychlost:	≤10000 rpm (mechanical) ≤6000 rpm (electric)
Angular acceleration:	≤2500 rad/s² (UB = 0 VDC) ≤500000 rad/s² (UB = 10...30 VDC)
Rozběhový točivý moment:	≤0.03 Nm (+25 °C, IP 65 / IP 67) ≤0.015 Nm (+25 °C, IP 54)
Moment setrvačnosti rotoru:	20 gcm²
Přípustné zatížení hřídele:	≤20 N axial ≤40 N radial
Materiál:	Housing: zinc diecast Flange: aluminium
Pracovní teplota:	-40...+85 °C (see general information)
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz EN 60068-2-27 Shock 100 g, 2 ms
Přibližná hmotnost:	500 g
Připojení:	Flange connector 3xM12

Foto	Produkt (13)
	Bearing flange for encoders with synchro flange (Z 119.035)
	Bellows coupling (D1=06 / D2=10)
	Coupling CPS25 (L=19, D1=06 / D2=06)
	Coupling CPS25 (L=19, D1=10 / D2=06)
	Coupling CPS37 (L=24, D1=06 / D2=06)
	Coupling CPS37 (L=24, D1=10 / D2=06)
	Mounting adaptor
	Self-tapping grounding screw (Z 119.100)
	Set of eccentric fixings for mounting clamp (10117667)
	Set of eccentric fixings type A
	Slit coupling (D1=06 / D2=06)
	Spring washer coupling (D1=6 / D2=10)
	Spring washer coupling (D1=6 / D2=6)

Foto	Produkt (5)
	Cable connector M12, 4-pin, angled, D-coded, without cable (Z 185.S02)
	Cable connector M12, 4-pin, on both sides, D-coded, 5 m cable (Z 185.E05)
	Cable connector M12, 4-pin, straight, D-coded, without cable (Z 185.S01)
	Female connector M12, 5-pin, A-coded, 10 m cable (Z 185.P10)
	Female connector M12, 5-pin, A-coded, 5 m cable (Z 185.P05)

Foto	Produkt (2) / Popis	Skladová dostupnost
	MR241.06D Circumference 20 cm Surface profile: Smooth Surface material: Hytrel TPE-E Bore ø6 mm	> 15 ks
	MR261.06A Circumference 20 cm Surface profile: Knopped rubber Surface material: Nitrile NBR Bore ø6 mm	5 ks
