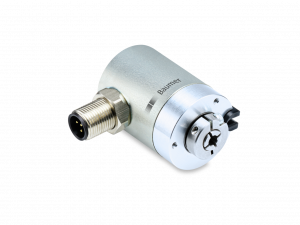

EAM300-B - SSI

Enkodér jedno nebo víceotáčkový / SSI
Precizní magnetické snímání
Úhlová přesnost až ±0,15°
Max. rozlišení 32 bitů (14 bitů ST, 18 bitů MT)
Vysoká odolnost nárazu a vibracím
Vysoké krytí až IP 67
Radiální nebo axiální konektorové nebo kabelové připojení

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	4.5...30 VDC
Spotřeba (typicky):	60 mA (5 VDC, w/o load) 20 mA (24 VDC, w/o load)
Čas inicializace:	≤ 170 ms after power on
Obnova dat:	Typ. 2 µs (cyclic request)
Rozhraní:	SSI
Funkce:	Multiturn Singleturn
Pracovní režim:	Linear feedback shift register (on request)
Kroků na otáčku:	≤16384 / 14 bit
Počet otáček:	≤262144 / 18 bit
Absolutní přesnost:	±0.15 ° (+20 ±15 °C) ±0.25 ° (-40...+85 °C)
Typ snímání:	Magnetic
Typ kódu:	Gray or binary
Průběh kódu:	CW: ascending values with clockwise sense of rotation (looking at flange)
Vstupy:	SSI clock: Linereceiver RS422 Zero setting input Counting direction
Výstupní signál \| rozhraní:	SSI data: Linedriver RS422
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-3 (cable length <30 m, no connection to DC network) EN 61000-6-4
Testovací funkce:	DATAVALID (on request)
Schválení:	UL approval / E217823

Mechanické provedení

Rozměr (příruby):	ø30 mm
Typ hřídele:	ø6 mm (blind hollow shaft)
Ochrana EN 60529:	IP 65 (without shaft seal) IP 67 (with shaft seal)
Provozní rychlost:	≤6000 rpm
Rozběhový točivý moment:	≤0.75 Ncm (+20 °C, IP 65) ≤1.1 Ncm (+20 °C, IP 67)
Moment setrvačnosti:	0.71 gcm²
Přípustné zatížení hřídele:	≤10 N axial ≤10 N radial
Materiál:	Housing: steel zinc-coated Flange: aluminium Hollow shaft: stainless steel
Pracovní teplota:	-40...+85 °C (see general information)
Relativní vlhkost:	95 %
Odolnost:	EN 60068-2-6 Vibration 30 g, 10-2000 Hz EN 60068-2-27 Shock 500 g, 1 ms
Přibližná hmotnost:	130 g
Připojení:	Flange connector M12, 8-pin Cable 2 m

Příslušenství

Obsahuje:Montážní příslušenství Kabely s volným koncem

Montážní příslušenství

Další podobné produkty naleznete v kategorii: Torque supports

Foto	Produkt (1)	Dostupnost
	Set of spring plate - EAM300	Na dotaz

Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (42) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A8-11232237 M12, female, A-coded, 8-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A8-11232697 M12, female, A-coded; 8-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	1 m	na dotaz
CAM12.A8-11232698 M12, female, A-coded; 8-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	2 m	na dotaz
CAM12.A8-11232699 M12, female, A-coded; 8-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	3 m	na dotaz
CAM12.A8-11232700 M12, female, A-coded; 8-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	5 m	na dotaz
CAM12.A8-11232701 M12, female, A-coded; 8-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	10 m	na dotaz
CAM12.A8-11232702 M12, female, A-coded; 8-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	15 m	na dotaz
CAM12.A8-11232703 M12, female, A-coded; 8-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	20 m	na dotaz
CAM12.A8-11232705 M12, female, A-coded; 8-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	1 m	na dotaz
CAM12.A8-11232706 M12, female, A-coded; 8-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	2 m	na dotaz
CAM12.A8-11232707 M12, female, A-coded; 8-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	3 m	na dotaz
CAM12.A8-11232708 M12, female, A-coded; 8-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	5 m	na dotaz
CAM12.A8-11232709 M12, female, A-coded; 8-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	10 m	na dotaz
CAM12.A8-11232710 M12, female, A-coded; 8-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	15 m	na dotaz
CAM12.A8-11232711 M12, female, A-coded; 8-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K Halogen free	20 m	na dotaz
CAM12.A8-11232713 M12, female, A-coded; 8-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	1 m	na dotaz
CAM12.A8-11232714 M12, female, A-coded; 8-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	2 m	na dotaz
CAM12.A8-11232715 M12, female, A-coded; 8-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	3 m	na dotaz
CAM12.A8-11232716 M12, female, A-coded; 8-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	5 m	na dotaz
CAM12.A8-11232717 M12, female, A-coded; 8-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	10 m	na dotaz
CAM12.A8-11232718 M12, female, A-coded; 8-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	15 m	na dotaz
CAM12.A8-11232719 M12, female, A-coded; 8-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	20 m	na dotaz
CAM12.A8-11232721 M12, female, A-coded; 8-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	1 m	na dotaz
CAM12.A8-11232722 M12, female, A-coded; 8-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	2 m	na dotaz
CAM12.A8-11232723 M12, female, A-coded; 8-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	3 m	na dotaz
CAM12.A8-11232724 M12, female, A-coded; 8-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	5 m	na dotaz
CAM12.A8-11232725 M12, female, A-coded; 8-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	10 m	na dotaz
CAM12.A8-11232726 M12, female, A-coded; 8-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	15 m	na dotaz
CAM12.A8-11232727 M12, female, A-coded; 8-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP68, IP69K Halogen free	20 m	na dotaz
CAM12.A8-11233242 M12, female, A-coded, 8-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A8-11233243 M12, female, A-coded, 8-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A8-11233244 M12, female, A-coded, 8-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A8-11233245 M12, female, A-coded, 8-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A8-11233246 M12, female, A-coded, 8-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A8-11233247 M12, female, A-coded, 8-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A8-11233249 M12, female, A-coded, 8-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A8-11233250 M12, female, A-coded, 8-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A8-11233251 M12, female, A-coded, 8-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A8-11233252 M12, female, A-coded, 8-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A8-11233253 M12, female, A-coded, 8-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A8-11233254 M12, female, A-coded, 8-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A8-11233255 M12, female, A-coded, 8-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
