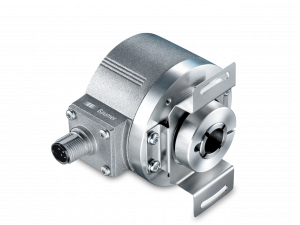

EIL580P-BT12.5BF.01024.B

Size ø58 mm
Precise optical sensing (interpolated)
Output signal level programmable (TTL)
Blind hollow shaft, ø12 mm
Flange connector M12, 8-pin CCW, radial
pulses per revolution 1...65536, programmable
High protection IP 65
High resistance to shock and vibrations

Objednací číslo: 11124797
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	4.75...30 VDC
Ochrana proti přepólování:	Yes
Odolnost proti zkratu:	Yes
Spotřeba:	≤70 mA
Čas inicializace:	≤ 30 ms after power on
Pulzů na otáčku:	1024
Střída:	45-55 % typical at 1024, 2048 ppr (further see table Duty cycle)
Referenční signál:	Zero pulse, width 90° ±10 %
Typ snímání:	Optical
Výstupní frekvence:	≤300 kHz (TTL)
Výstupní signál:	A+, B+, R+, A-, B-, R-
Výstupní signál \| rozhraní:	TTL/RS422
Programovatelné parametry:	Output level TTL/HTL Pulse number 1...65536 Zero pulse width 90°/180° Zero pulse position Signal sequence
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-3
Schválení:	UL 508 / CSA 22.2

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø12 mm (blind hollow shaft)
Ochrana EN 60529:	IP 65
Provozní rychlost:	≤8000 rpm (+20 °C, IP 65)
Rozběhový točivý moment:	≤0.02 Nm (+20 °C, IP 65)
Materiál:	Housing: aluminium die-cast Flange: aluminium
Pracovní teplota:	-40...+100 °C
Relativní vlhkost:	90 % non-condensing
Odolnost:	EN 60068-2-6 Vibration 30 g, 10-2000 Hz EN 60068-2-27 Shock 250 g, 6 ms
Připojení:	Flange connector M12, 8-pin
Přibližná hmotnost:	300 g
