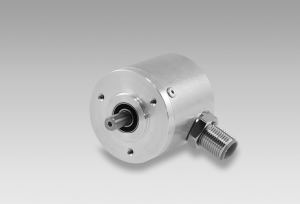

BNIV

Encoder with 16 predefined resolutions
Max. 25000 pulses per revolution
Optical sensing method
Manual adjustment without any programming tool
Housing ø40 mm
Operation speed max. 3000 rpm
Solid shaft ø6 mm

Objednací číslo: BNIV
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

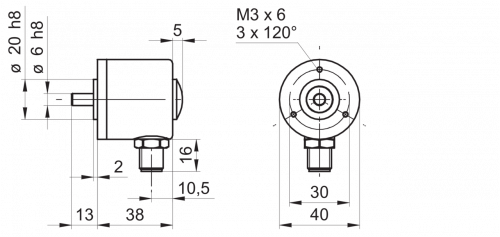

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	4.75...30 VDC
Spotřeba (typicky):	100 mA (24 VDC, w/o load)
Pulzů na otáčku:	100 - 25000
Typ snímání:	Optical
Výstupní frekvence:	≤300 kHz
Výstupní signál:	A 90° B
Výstupní signál \| rozhraní:	Linedriver/RS422 Push-pull antivalent, short-circuit proof (HTL)
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-3

Mechanické provedení

Rozměr (příruby):	ø40 mm
Typ hřídele:	ø6 mm solid shaft
Přípustné zatížení hřídele:	≤10 N axial ≤40 N radial
Příruba:	Synchro flange
Ochrana EN 60529:	IP 64
Provozní rychlost:	≤3000 rpm
Velikost provozního točivého momentu.:	0.0075 Nm (3000 rpm / 20 °C)
Materiál:	Housing: aluminium Flange: aluminium
Pracovní teplota:	-20...+85 °C
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration 10 g, 10-2000 Hz EN 60068-2-27 Shock 50 g, 11 ms
Připojení:	Connector M12, 8-pin Cable 2 m
Přibližná hmotnost:	100 g
