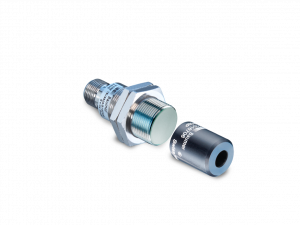

MDRM 18I9524/S14A270 - Magnetic angle sensors

Výrobce: Baumer Electric AG

Current output
Connector M12
-40 … 85 °C
IP 67
Please order magnet separately

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ondřej Štěpánek

Produktový specialista
Průmyslové enkodéry Baumer

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Úhlový rozsah:	270° linear
Rozlišení:	1.41 °
Systémová odchylka:	± 0,6 %
Teplotní drift:	± 0,1 % (Full Scale)
Maximální snímací vzdálenost:	4 mm, with magnet rotor MSFS
Osová nesouměrnost (max.):	0.5 mm

Elektrické parametry

Čas odezvy:	< 2 ms
Rozsah napájecího napětí +Vs:	15 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	30 mA
Výstupní signál:	4 ... 20 mA
Odpor zátěže:	500 Ohm/15 VDC, 1000 Ohm/30 VDC
Výstupní obvod:	Current output
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Mechanické parametry

Způsoby připojení:	Connector M12
Typ:	Cylindrical threaded
Materiál pouzdra:	Brass nickel plated
Rozměry:	18 mm
Materiál aktivní části:	PBTP

Okolní podmínky

Pracovní teplota:	-40 - +85 °C
Třída krytí:	IP 67

Příslušenství

Obsahuje:Magnetické stupnice Periferie Montážní příslušenství Kabely s volným koncem LED-Kabely s volným koncem Kabely

Magnetické stupnice

Další podobné produkty naleznete v kategorii: Montážní příslušenství

Produkt (4)	Popis	Produktová skupina	Skladová dostupnost
MMFN AA01X06 - On-axis magnet for bearingless encoders	For cost-efficient adhesive mounting Operating temperature -40...+100 °C Packing unit: 10 pieces	Magnetic scales	na dotaz
MMFS AA03X08 - On-axis magnet for bearingless encoders	For cost-efficient adhesive mounting Operating temperature -40...+180 °C Packing unit: 10 pieces	Magnetic scales	na dotaz
MSFN AA01X06 - Magnetic rotor for bearingless encoder	Simple screw mounting For 6 mm shaft diameter Operating temperature -40...+85 °C	Magnetic scales	na dotaz
MSFS AA03X08 - Magnetic rotor for bearingless encoder	Simple screw mounting For 6 mm shaft diameter Operating temperature -40...+125 °C	Magnetic scales	na dotaz

Periferie

Další podobné produkty naleznete v kategorii: Periferie

Foto	Produkt (2)	Produktová skupina	Skladová dostupnost
	ZPOWS-ALL.24V - Test unit for sensors	Periferie	na dotaz
	ZTEST-ALL.ANALOG - Test unit for sensors analog & digital	Periferie	na dotaz

Montážní příslušenství

Další podobné produkty naleznete v kategorii: Montážní příslušenství

Produkt (4)	Popis	Produktová skupina	Skladová dostupnost
10151658 - Sensofix series 18	Clamps made of stainless steel Ball pivots made of galvanized steel Mounting panel made of stainless steel	Montážní příslušenství	na dotaz
ZADAP-M18.LONG - Mounting bracket long series 18 (L design)	Material: Steel galvanized	Montážní příslušenství	10 ks
ZADAP-M18.SHORT - Mounting bracket short series 18 (L design)	Material: Steel galvanized	Montážní příslušenství	na dotaz
ZADAP-M18.STANDARD - Mounting bracket series 18	Material: Steel galvanized	Montážní příslušenství	na dotaz
