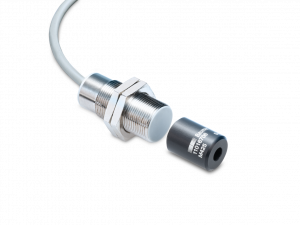

MDRM 18I9524/KS34P - Magnetic angle sensors

Výrobce: Baumer Electric AG

Current output
Flylead Connector PUR M12, L=200 mm
-40 … 85 °C
IP 67
Please order magnet separately

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ondřej Štěpánek

Produktový specialista
Průmyslové enkodéry Baumer

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Úhlový rozsah:	120° linear
Rozlišení:	0.09 °
Systémová odchylka:	± 0,25 %
Teplotní drift:	± 0,1 % (Full Scale)
Maximální snímací vzdálenost:	5 mm, with magnet rotor MSFS
Osová nesouměrnost (max.):	0.4 mm

Elektrické parametry

Čas odezvy:	< 4 ms
Rozsah napájecího napětí +Vs:	15 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	30 mA
Výstupní signál:	4 ... 20 mA
Odpor zátěže:	500 Ohm/15 VDC, 1000 Ohm/30 VDC
Výstupní obvod:	Current output
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Mechanické parametry

Způsoby připojení:	Flylead connector PUR M12, L=200 mm
Typ:	Cylindrical threaded
Materiál pouzdra:	Brass nickel plated
Rozměry:	18 mm
Materiál aktivní části:	PBTP

Okolní podmínky

Pracovní teplota:	-40 - +85 °C
Třída krytí:	IP 67

Příslušenství

Obsahuje:Magnetické stupnice Periferie Montážní příslušenství Kabely s volným koncem LED-Kabely s volným koncem

Magnetické stupnice

Další podobné produkty naleznete v kategorii: Montážní příslušenství
