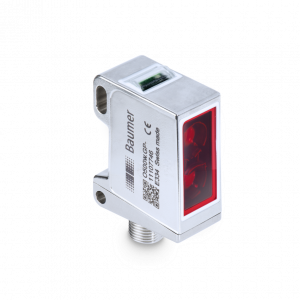

O500W.RP.T-GW1J.PVO - Retro-reflective sensors - washdown

retro-reflective sensor
5,5 m
pulsed PinPoint LED
push-pull
Teach-in and IO-Link
connector M12 4 pin
-25 … 60 °C
IP 68/69K & proTect+

Objednací číslo: 11157357
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Martin Bulenínec

Vedoucí oddělení průmyslových snímačů a kamerových systémů
BAUMER | IOSS

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Retro-reflective sensor
Speciální typ:	Washdown design
Verze:	Transparency object detection
Zdroj světla:	Pulsed PinPoint LED
Skutečný rozsah Sb:	5.5 m
jmenovitý rozsah:	6 m
Polarizační filtr:	Yes
Minimální útlum signálu:	10 % / 20 % / 30 %
Světelný indikátor:	LED yellow
Indikace napájení:	LED green
Nastavení citlivosti:	Teach-in and IO-Link
Vlnová délka:	630 nm
Potlačení vzájemného ovlivňování:	Yes
Odklon od osy:	< 1°
Schválení \| Osvědčení:	Ecolab

Elektrické parametry

Doba odezvy:	< 0.25 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	35 mA
Běžná spotřeba proudu:	30 mA
Pokles napětí Vd:	<3 VDC
Výstupní funkce:	Light / dark operate
Výstupní obvod:	Push-pull
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	20.2 mm
Výška \| Délka:	47.2 mm
Hloubka:	37.7 mm
Konstrukce:	Rectangular
Materiál pouzdra:	Stainless steel 1.4404 (V4A)
Materiál krycího skla:	PMMA
Způsoby připojení:	Connector M12 4 pin

Okolní podmínky

Pracovní teplota:	-25 - +60 °C
Třída krytí:	IP 68/69K & proTect+
