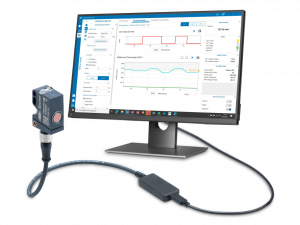

USB-C IO-Link Master

Compact IO-Link master perfectly suited for testing and getting to know IO-Link sensors
Simple power supply via USB-C
Quick and easy connection with the Baumer Sensor Suite
Specifically designed with the needs of engineering and service in mind

Objednací číslo: 11234828
Výrobce: Baumer Electric AG

Dostupnost: 7 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Komunikační rozhraní:	IO-Link USB-C
Software:	Baumer Sensor Suite

Komunikační rozhraní IO-Link

IO-Link:	Class A
Počet připojení:	1
Počet vstupů a výstupů:	Digital Output (DO) Digital Input (DI) 1 x IO-Link
Výstupní proud L+/L-:	200 mA
Výstupní proud C/Q:	200 mA
Ochrana vůči zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Model:	Cubic
Kryt:	Polyamide 66
Šířka:	27 mm
Výška:	12 mm
Hloubka:	59 mm

Podmínky prostředí

Pracovní teplota:	0 °C ... + 70 °C
Skladovací teplota:	- 40 °C ... + 70 °C

Elektrické parametry

Napájení:	20 V
Konektor:	USB-C

Přídavný kabel: CAM12.A5-11235915

Číslo produktu:	11235915
Vlastnosti:	M12 Male, 0°/M12 Female, 0° PUR 5x0.34 mm² black, drag chain Length 1m

Přídavný kabel: CAM12.A4-11230429

Číslo produktu:	11230429
Vlastnosti:	M12, male, A-coded, 4-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67

Příslušenství

Obsahuje:Kabely LED-Připojovací kabely

Kabely

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (9) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A4-11230419 M12, male, A-coded, 4-poles; PUR, 100 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230429 M12, male, A-coded, 4-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230432 M12, male, A-coded, 4-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230941 M12, male, A-coded, 4-poles; PUR, 200 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	1 ks
CAM12.A4-11230949 M12, male, A-coded, 4-poles; PUR, 200 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	2 ks
CAM12.A4-11230950 M12, male, A-coded, 4-poles; PUR, 300 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11230952 M12, male, A-coded, 4-poles; PUR, 200 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	3 ks
CAM12.A4-11232933 M12, male, A-coded, 4-poles; PUR, 300 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232954 M12, male, A-coded, 4-poles; PUR, 300 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz

LED-Připojovací kabely

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (6) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A4-11230434 M12, male, A-coded, 4-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM12.A4-11230947 M12, male, A-coded, 4-poles; PUR, 200 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM12.A4-11230954 M12, male, A-coded, 4-poles; PUR, 200 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM12.A4-11232946 M12, male, A-coded, 4-poles; PUR, 100 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM12.A4-11232947 M12, male, A-coded, 4-poles; PUR, 300 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM12.A4-11232958 M12, male, A-coded, 4-poles; PUR, 300 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz

Produkt (34)	Produktová skupina	Skladová dostupnost
ASIA 75 input / output module, for 3-wire sensors		na dotaz
IO-Link Master EtherNet/IP, 8-Port, IP20		na dotaz
IO-Link Master EtherNet/IP, 8-Port, IP67		na dotaz
IO-Link Master PROFINET, 8-Port, IP20		na dotaz
IO-Link Master PROFINET, 8-Port, IP67		1 ks
SensControl - Wireless IO-Link Master	Periferie Bezdrátový IO-Link Master	1 ks
Sonic beam deflector U300 - Sonic beam deflector for sensors U300	Periferie	na dotaz
USB-C IO-Link Master		7 ks
VLXT-06M.I		na dotaz
ZCKIT-SCA.S10 - ScaDiag Connection-Kit with application software ScaDiag for parameterization and data recording of SCATEC sensors on the PC. Operating system: Windows XP/2000 or later.	Periferie	na dotaz
ZCKIT-SCA.S14 - ScaDiag Connection-Kit with application software ScaDiag	Periferie	na dotaz
ZCKIT-SCA.S42 - ScaDiag Connection-Kit with application software ScaDiag for parameterization and data recording of SCATEC sensors on the PC. Operating system: Windows XP/2000 or later.	Periferie	na dotaz
ZCONV-ALL.IMPM12 - Adapter for pulse stretching M12	Periferie	na dotaz
ZCONV-ALL.IMPM8 - Adapter for pulse stretching M8	Periferie	na dotaz
ZCONV-ALL.POLM12 - Converter PNP/NPN - M12 x 1	Periferie	na dotaz
ZCONV-ALL.POLM8 - Converter PNP/NPN - M8 x 1	Periferie	1 ks
ZEX-ALL.B28RD100		na dotaz
ZEX-ALL.B30RS075		na dotaz
ZEX-ALL.BNAMUR1		na dotaz
ZMAGN-MAG.MMRH - Permanent magnet MMRH BA31X15	Periferie	2 ks
ZMAGN-MAG.MMRN - Permanent magnet MMRN AA06X05	Periferie	na dotaz
ZMAGN-MAG.MMRS - Permanent magnet MMRS AA02X02	Periferie	na dotaz
ZPOWS-ALL.24V - Test unit for sensors	Periferie	na dotaz
ZTEST-ALL.ANALOG - Test unit for sensors analog & digital	Periferie	na dotaz
ZTEST-ALL.DIGITAL - Test unit for sensors digital	Periferie	na dotaz
ZTOOL-ALL.TEACH - Teach-in Adapter M12	Periferie	1 ks
ZTOOL-ALL.TPEN - Teach Pen for sensors in metal housing	Periferie	na dotaz
ZTOOL-ALL.TPENJP - Teach Pen for sensors in metal housing (USA, CAN, JP)	Periferie	na dotaz
ZUSDF-M30 - Sonic beam deflector series 30 rectangular	Periferie	na dotaz
ZUSDF-REC - Sonic beam deflector series 30	Periferie	na dotaz
ZUSDF-USS.S10 - Sonic beam deflector for ultrasonic sensors series 10	Periferie	na dotaz
ZUSDF-USS.S18 - Sonic beam deflector series 18 rectangular	Periferie	na dotaz
ZUSDF-USS.S20 - Sonic beam deflector series 20	Periferie	na dotaz
ZUSDF-USS.S500 - Sonic beam deflector for sensors U500	Periferie	1 ks
